YASKAWA iQpump1000 - Flange Type Models 2 A0030 and 2 A0040, 4 A0018 and 4 A0023, and 5 A0011

u
Flange Type Models 2A0030 and 2A0040, 4A0018 and 4A0023, and 5A0011
n

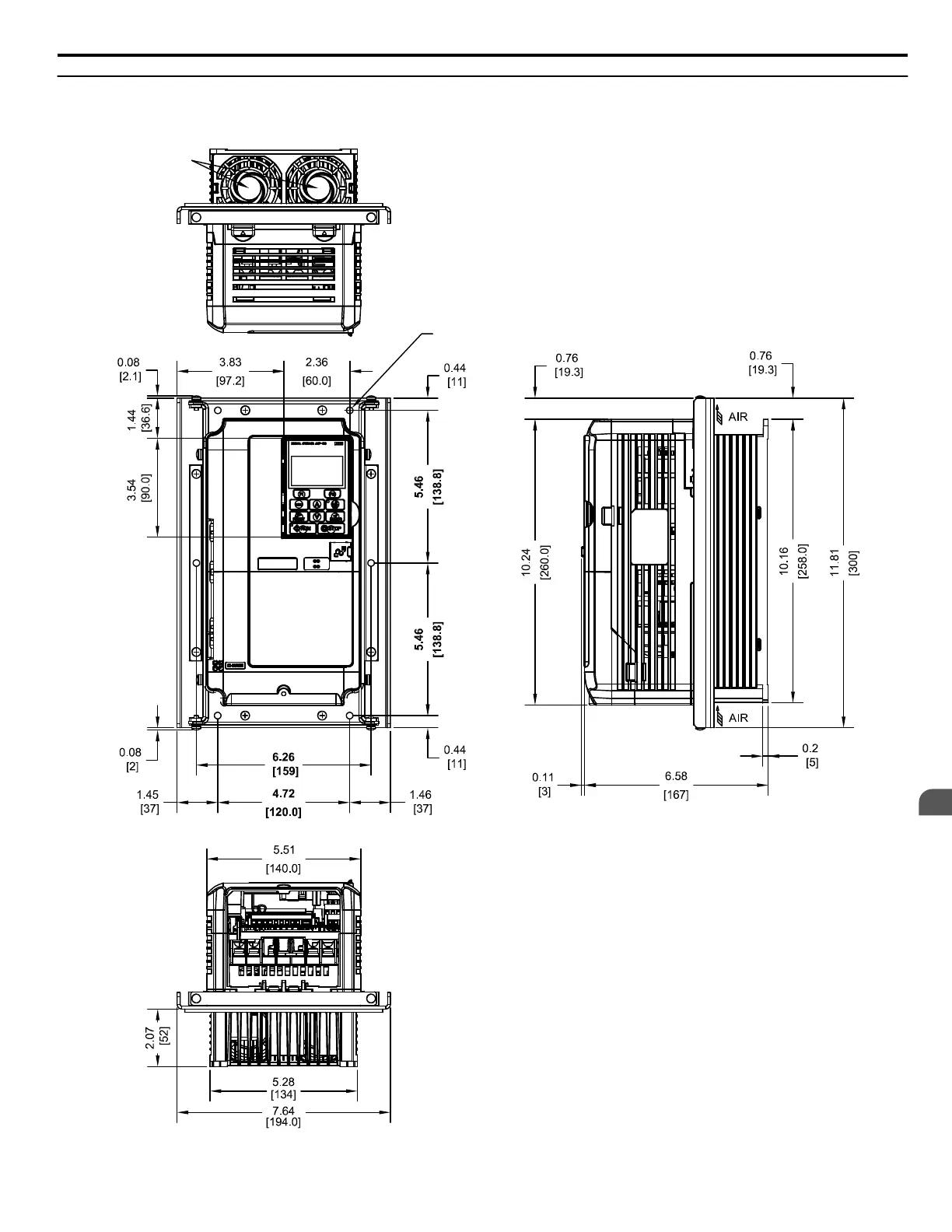

Flange Type Exterior and Mounting Dimensions
NOTE: Maximum surrounding air temperature is 50 °C [122 °F]
Unit: in. [mm]
(6)-MOUNTING
HOLES FOR
#10[M5] SCREWS
FRONT VIEW
AIR
VERTICAL MTG DIM VERTICAL MTG DIM
HORIZONTAL MTG DIM
HORIZONTAL MTG DIM
[2] EXTERNAL
COOLING FANS
AIR
Figure 2.19 Models 2A0030 and 2A0040, 4A0018 and 4A0023, and 5A0011
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA TOEP YAIP1W 01F YASKAWA AC Drive - iQpump1000 User Manual
59
2
Mechanical Installation
