L1-02: Motor Overload Protection Time
Setting Range: 0.1 to 5.0 min
Factory Default: 1.0 min
Parameter L1-02 determines how long the motor is allowed to operate before the oL1 fault occurs when the drive is running
a hot motor at 60 Hz and at 150% of the full load amp rating (E2-01) of the motor. Adjusting the value of L1-02 can shift the
set of oL1 curves up the y axis of the diagram below, but will not change the shape of the curves.
Operation time (minutes)
Cold start
(characteristics when an
overload occurs at a
complete stop)
Hot start
(characteristics when an
overload occurs during
continuous operation at 100%)
Motor current (%)
E2-01 = 100% motor current
10
7
3
1
0.4
0.1
0 100 150 200

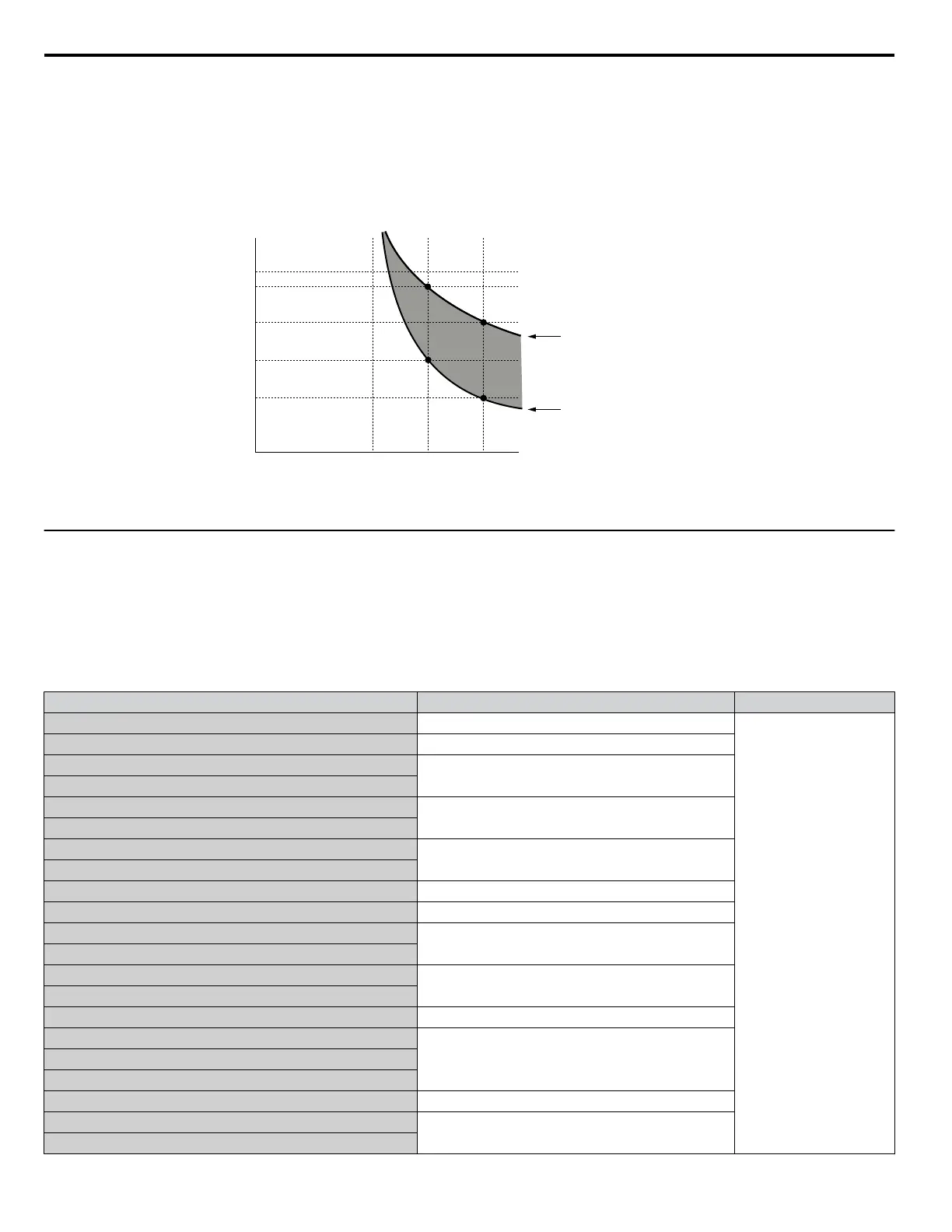

Figure D.8 Motor Overload Protection Time
u
Precautionary Notes on External Heatsink (IP00/Open Type Enclosure)
When using an external heatsink, UL compliance requires covering exposed capacitors in the main circuit to prevent injury
to surrounding personnel.
The portion of the external heatsink that projects out can be protected with the enclosure or with the appropriate capacitor
cover after completing drive installation. Use Table D.9 to match drive models with available capacitor covers. Order capacitor
covers from a Yaskawa representative or directly from the Yaskawa sales department.
Table D.9 Capacitor Cover
Drive Model Code Number Figure
2A0110 100-061-273
Figure D.9
2A0138 100-061-274
2A0169
100-061-275
2A0211
2A0250
100-061-277
2A0312
2A0360
100-061-278
2A0415
4A0058 100-061-273
4A0072 100-061-274
4A0088
100-061-276
4A0103
4A0139
100-061-275
4A0165
4A0208 100-061-277
4A0250
100-061-2784A0296
4A0362
4A0414 100-061-279
4A0515
100-061-280
4A0675
D.2 UL and CSA Standards
