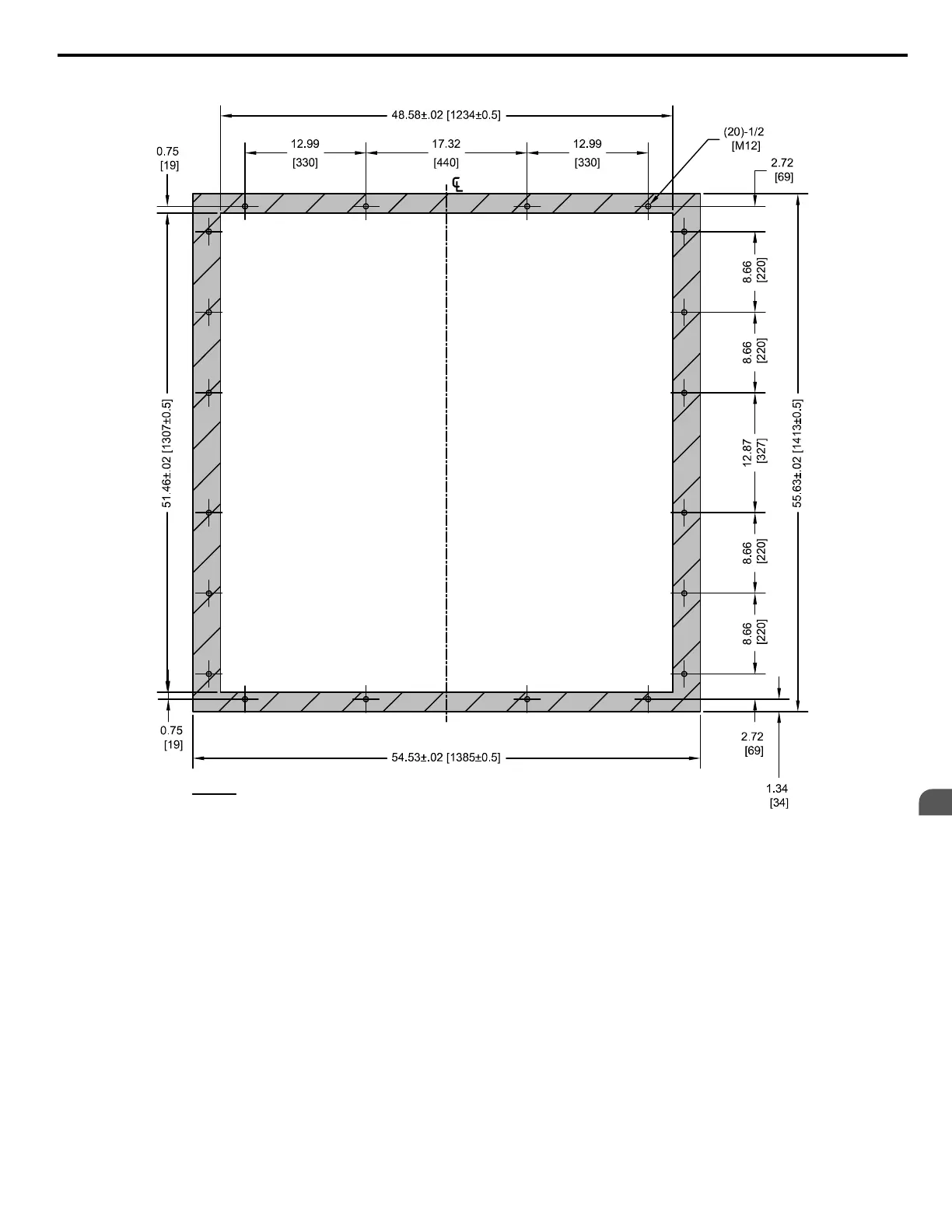

Flange Type Panel Cutout Dimensions for External Heatsink Mounting
CUTOUT
NOTES:
1. EXPOSED HEATSINK DEPTH
2. MINIMUM RECOMMENDED PANEL
THICKNESS: 10 GA
D=5.75 in. [146 mm] MINUS PANEL THICKNESS
Unit: in. [mm]
in.
Figure 2.44 Models 4A0930 and 4A1200
2.2 Flange Type Enclosure (NEMA 12 Backside) Dimensions & Heat Loss
YASKAWA TOEP YAIP1W 01F YASKAWA AC Drive - iQpump1000 User Manual
89
2
Mechanical Installation
