5.1 Example Setting of Motion Parameters for the Machine
5.1.4 Position Reference
5-7
Motion Parameter Setting Examples
( 2 )
Setting the Target Position When Using an Infinite Length Axis: Method 2
Changing the target position while a POSING command is being executed
by specifying another target position on the base of the original target position
• When the absolute mode has been set for the Reference Position Type (OW09, bit 5 = 1), the absolute mode
must also be set after having changed the target position.
Incremental Addition Mode (OW09, bit 5 = 0)
Incremental value = New target position (a value between 0 and POSMAX) − Original target position before
change (a value between 0 and POSMAX) + POSMAX × n
OL1C = OL1C + Incremental value
Original target position before change: The value that was directly designated or the value that was stored in M
register, etc.
n refers to the number of POSMAX complete turns needed to move from the current position (CPOS) to the tar-
get position. When the distance between the target position and the current position is within the first turn, n is
0.
Absolute Mode (OW09, bit 5 = 1)
Incremental value = New target position (a value between 0 and POSMAX) − Original target position before
change (a value between 0 and POSMAX) + POSMAX × n
OL1C = OL1C + Incremental value
Original target position before change: The value that was directly designated or the value that was stored in M
register, etc.
n refers to the number of POSMAX complete turns needed to move from the current position (CPOS) to the tar-
get position. When the distance between the target position and the current position is within the first turn, n is
0.

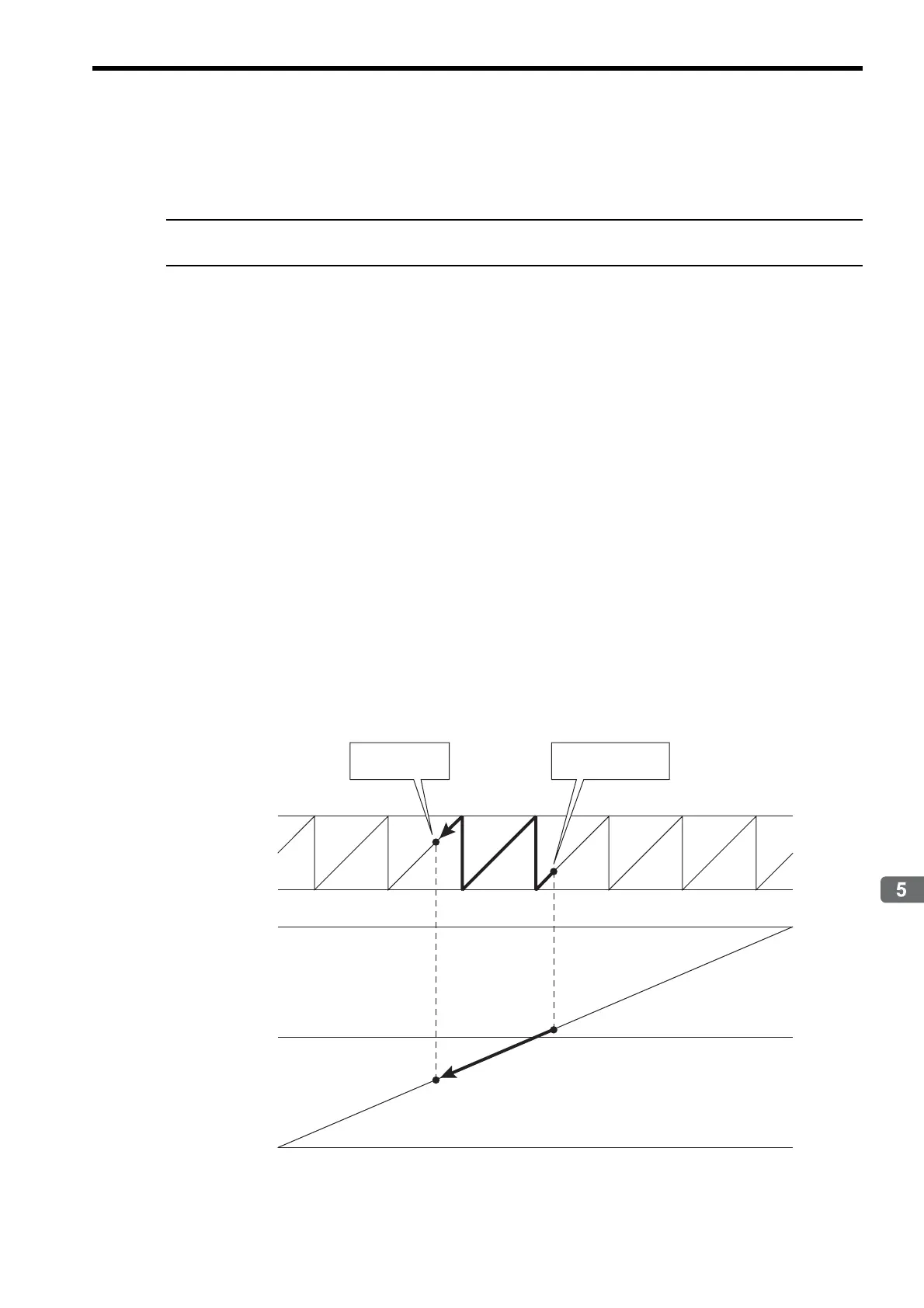

<Example when n = 2>
POSMAX
0
2
31
-1
0
-2
31
IL10 (CPOS)
IL
12 (MPOS)
IL
16 (APOS)
IL
18 (LPOS)
IL0E (TPOS)
IL
14 (DPOS)
New target position
(0 to POSMAX)
Original target position
(0 to POSMAX)
To Next Page
