3.4 Self-configuration and Definition Files
3.4.2 MECHATROLINK Transmission Definition
3-14
3.4.2 MECHATROLINK Transmission Definition
( 1 ) How to Open the MECHATROLINK Transmission Definition Window

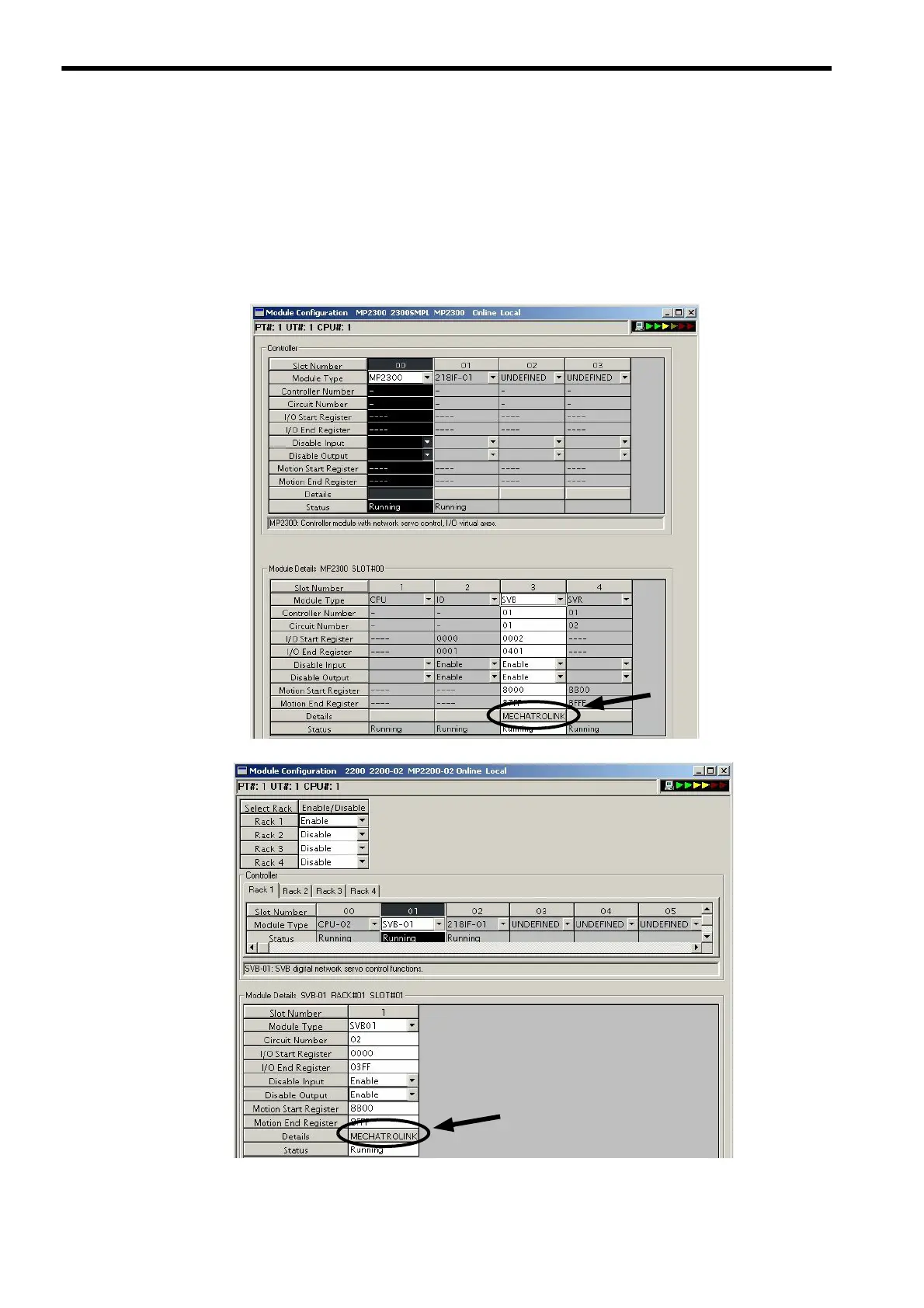

In the Module Configuration Window, select the SVB Module in the Controller field and double-click the MECHA-
TROLINK cell in the Details field. The MECHATROLINK Transmission Definition Window will open.
 If several SVB Modules are mounted, select the SVB Module to be checked or set in the Controller field.
 To check or set the built-in SVB Module, select slot number 00 in the Controller field.
<MP2100, MP2300, MP2500, and MP2500D>
<MP2100M, MP2200, MP2500M, and MP2500MD>
