11.3 Software Limit Function
11.3.3 Processing after an Alarm Occurs
11-16

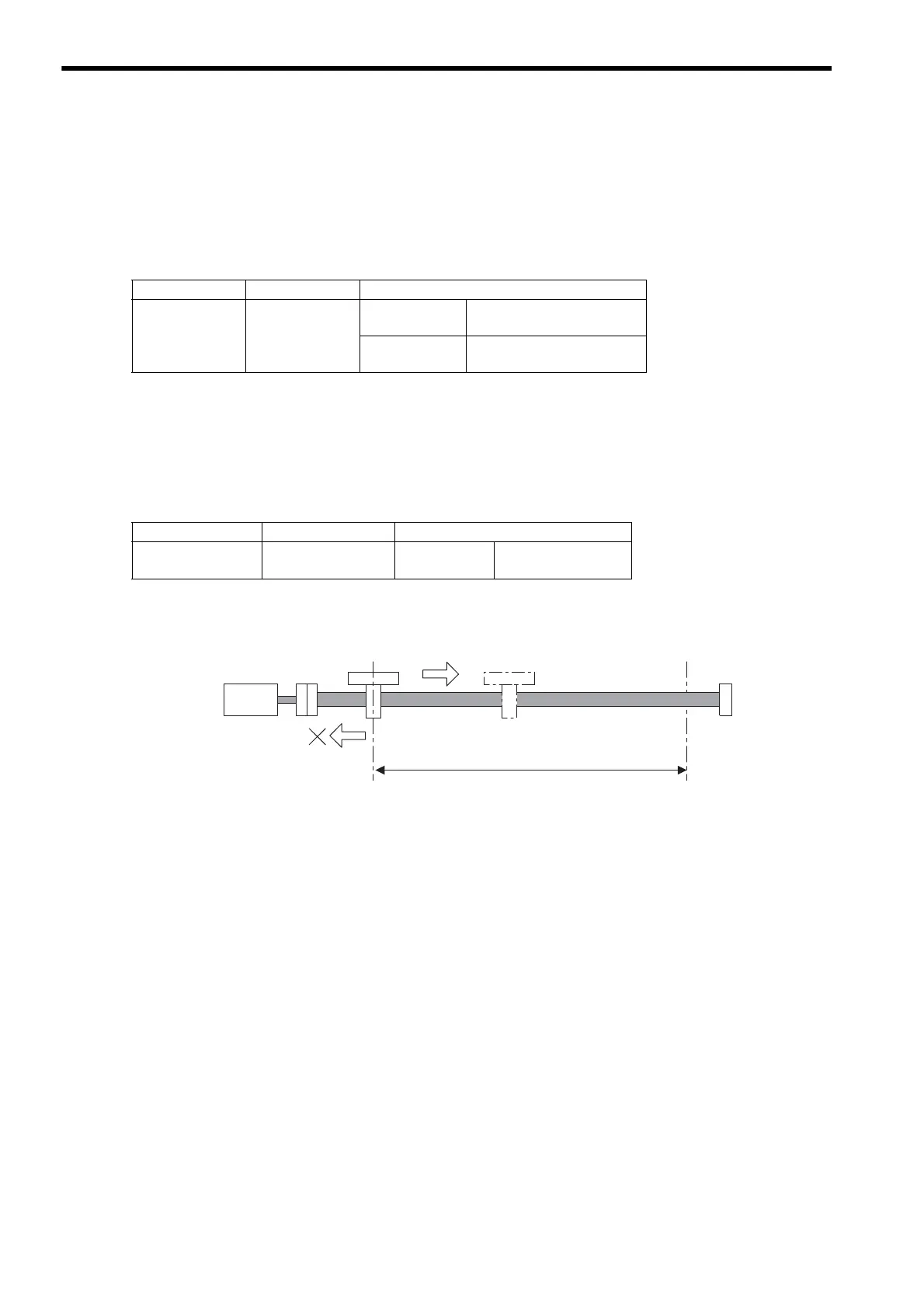

11.3.3 Processing after an Alarm Occurs
( 1 ) Monitoring Alarms
If a position command that moves to or exceeds the positive and negative software limit is received, the axis will be
moved to the software limit position, and a Positive/Negative Direction Software Limit alarm will occur. This alarm
can be monitored in the Alarm monitoring parameter (IL04).
( 2 ) Clearing Software Limit Alarms
Clear software limit alarms using the procedure below.
1. Set the Alarm Clear bit to 1 in the RUN Command Setting (OW00 bit F) to clear the alarm.
The alarm (IL04) will be cleared.
2. Use the FEED or STEP command to return past the software limit.
Name Register Number Meaning
Alarm
IL04
Bit 3:
Positive Direction Software
Limit
Bit 4:
Negative Direction Software
Limit
Name Register Number Meaning
RUN Command
Setting
OW00 Bit F: Alarm Clear
Commands will be received in the return direction.
Servo-
motor
An alarm will occur again if a command is
given in the direction of the software limit
that was activated.
Software Limit,
lower limit
Software Limit,
upper limit
