10.2 Operating Inverters Using an MPE720
10.2.4 Manually Allocating Inverters
10-11
Settings for Connecting Inverters
10.2.4 Manually Allocating Inverters
1.

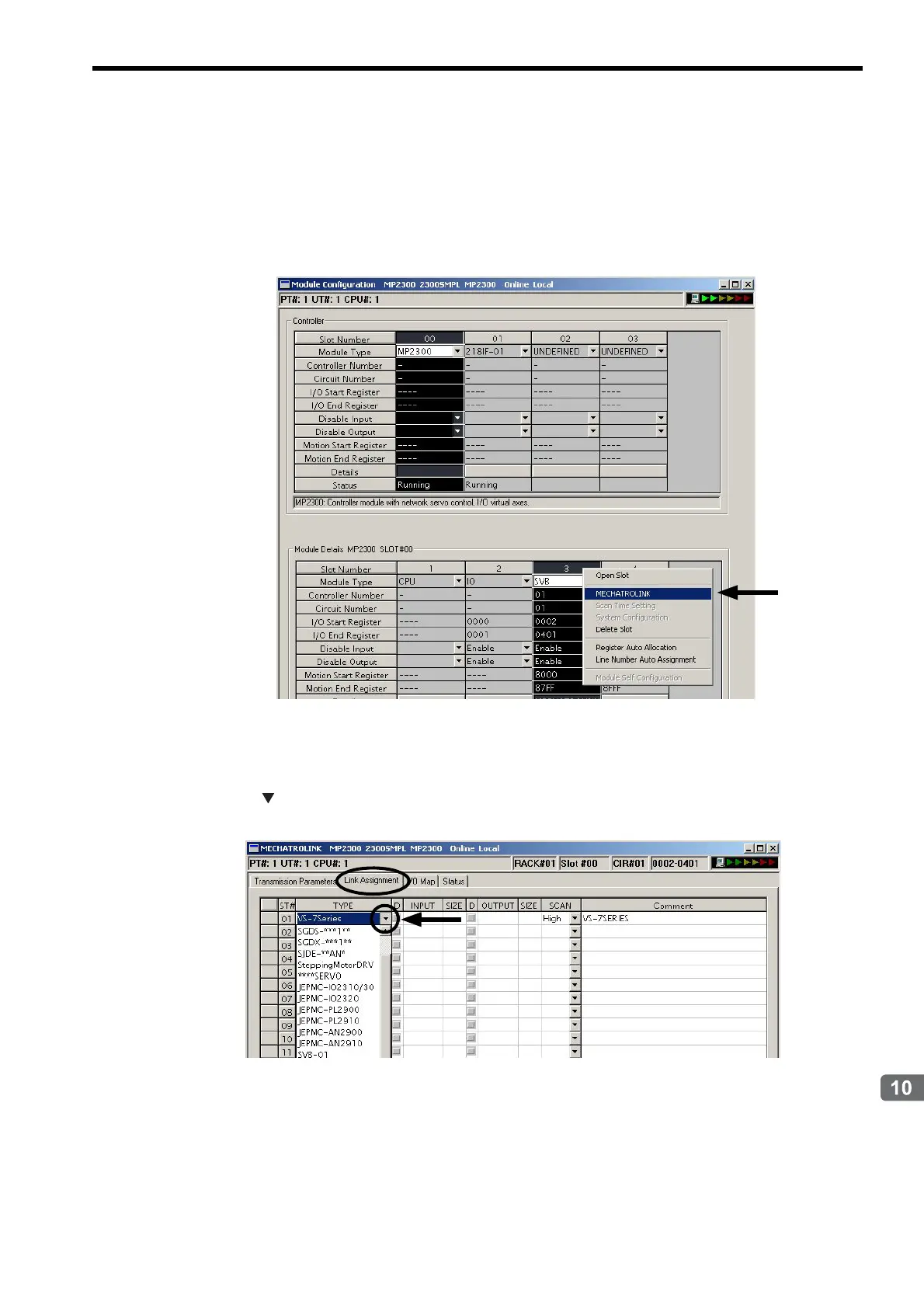

Start the MPE720 (version 5.12 or later) installed in the personal computer connected to the Machine
Controller, and open the Module Configuration Window.
2.
Right-click the SVB column in the Module Details field, and select MECHATROLINK from the pop-up
menu.
The MECHATROLINK Definition Window for parameter setting will open.
3.
Click Link Assignment Tab to display the tab page.
4.
Click the Button in the TYPE column, and select VS-7Series (Inverter) from the list.
Always select VS-7Series regardless of the actual inverter model.
5.
Select File - Save from the main menu to save the setting.
6.
Click the close button X to close the MECHATROLINK Definition Window and return to the Module
Configuration Window.
