8.1 Position Control

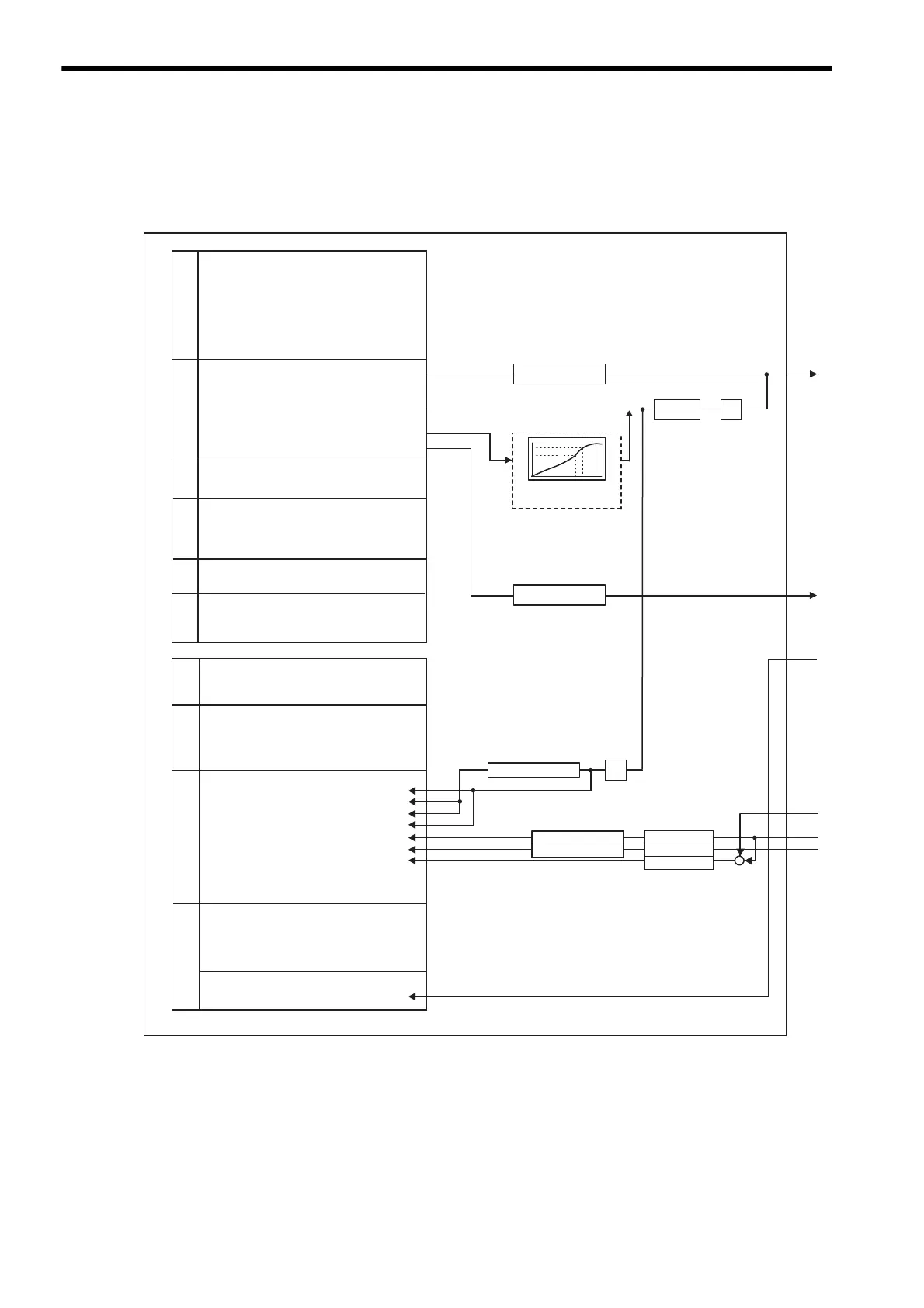

8.1.2 Control Block Diagram for Position Control
8-6
8.1.2 Control Block Diagram for Position Control
p
t
Ǭp
ts
Override processing
OW18
POSING commands
MP2000-series Machine Controller
SVB
OW00 RUN Command Setting
OW01 Mode Setting 1
OW02 Mode Setting 2
OW03 Function Setting 1
OW04 Function Setting 2
OW05 Function Setting 3
OW08 Motion Command
OW09 Motion Command Control Flag
OW0A Motion Subcommand
OL10 Speed Reference Setting
OW18 Override
OL1C Position Reference Setting
OL1E Width of Positioning Completion
OL20 NEAR Signal Output Width
OL22 Error Count Alarm Detection
OW26 Positioning Completion Check Time
OW31
Speed Compensation
OL36
Straight Line Acceleration/Acceleration Time Constant
OL38 Straight Line Deceleration/Deceleration Time Constant
OW3A Filter Time Constant
OW3C Zero Point Return Method
OW3D Width of Starting Point Position Output
OL3E Approach Speed
OL40 Creep Rate
OL42 Zero Point Return Travel Distance
OL44 STEP Travel Distance
OL46
External Positioning Final Travel Distance
OL48 Zero Point Position in Machine Coordinate System
OL4A Work Coordinate System Offset
OL4C
Number of POSMAX Turns Presetting Data
IW00 RUN Status
IL02 Warning
IL04 Alarm
IW08 Motion Command Response Code
IW09 Motion Command Status
IW0A Motion Subcommand Response Code
IW0B Subcommand Status
IW0C Position Management Status
IL0E
Target Position in Machine Coordinate System (TPOS)
IL10 Calculated Position in Machine Coordinate System (CPOS)
IL12 Machine Coordinate System Position (MPOS)
IL14 CPOS for 32bit (DPOS)
IL16 Machine Coordinate System Feedback Position (APOS)
IL18 Machine Coordinate System Latch Position (LPOS)
IL1A Position Error (PERR)
IL1C Target Position Difference Monitor
IL1E Number of POSMAX Turns
IL20 Speed Reference Output Monitor
IW2C Servo Driver Status
IW2D Servo Driver Alarm Code
IW2E Servo Driver I/O Monitor
IW2F
Servo Driver User Monitor Information
IW30 Servo Driver User Monitor 2
IL40 Feedback Speed
IL42 Feedback Torque/Thrust
Ǜ
Ǜ
㧙
+
Note: Processing performed by CPU.
Run Settings
Speed/Position References
Acceleration/ Deceleration
Zero Point Return
Feed speeds
Coordinates
Run Information
Motion Command Information
Position Information
SERVOPACK Information
INTERPOLATE
commands
Position pattern generation
for interpolation
Electronic
gear
Motion program
Acceleration/deceleration:
IAC, IDC
Motion program or user
application (ladder
program)
Valid only for
interpolation.
Speed reference
unit conversion
POSMAX processing
POSMAX processing
POSMAX processing
Electronic gear
Electronic gear
Electronic gear
(continued on next page)
