1.2 Specifications

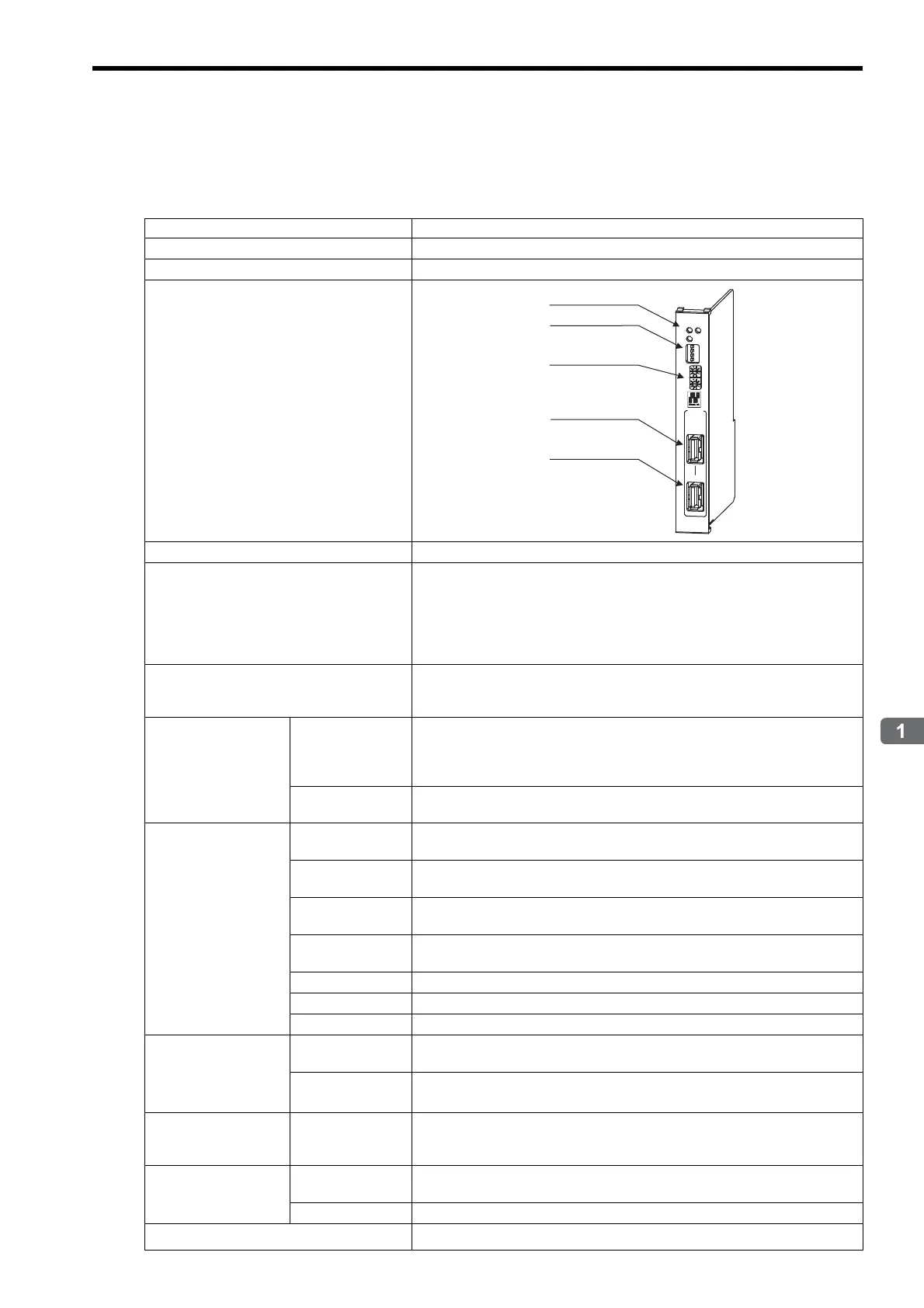

1.2.1 SVB-01 Module Hardware Specifications
1-9
Overview
1.2 Specifications
1.2.1 SVB-01 Module Hardware Specifications
Item Specifications
Description
SVB-01
Model Number
JAPMC-MC2310
Module Appearance
Max. No. of Modules to be mounted
MP2300: 2, MP2200: 16
MECHATROLINK Motion Network
Motion network: 1 channel
Communication ports: 2 ports
SERVOPACK and I/O:
Up to 21 stations connectable (SERVOPACK for up to 16 axes)
Baud rate:
4 Mbps (MECHATROLINK-I) or 10 Mbps (MECHATROLINK-II)
Indicators
RUN (green)
ERR (red)
TX (green)
Switches
DIP Switch
−
M/S (Master/Slave)
SIZE (Number of transfer bytes)
SPD (Baud rate)
Rotary Switch
×1 (slave address)
×10 (slave address)
Environmental
Conditions
Ambient Operating
Temperature
0°C to 55°C
Ambient Storage
Temperature
-25°C to 85°C
Ambient Operating
Humidity
30% to 95% RH (with no condensation)
Ambient Storage
Humidity
5% to 95% RH (with no condensation)
Pollution level
Pollution level 2 (conforming to JIS B 3502)
Corrosive Gas
There must be no combustible or corrosive gas.
Operating Altitude
2,000 m above sea level or lower
Mechanical Operating
Conditions
Vibration
Resistance
Conforming to EN61000-6-2, EN61000-6-4, EN55011 (Group 1 Class A)
Shock Resistance
Conforms to JIS B 3502.
Peak acceleration of 147 m/s
2
twice for 11 ms each in the X, Y, and Z directions
Electrical Operating
Conditions
Noise Resistance
Conforms to EN 61000-6-2 and EN 55011 (Group 1, Class A).
Power supply noise (FT noise): 2 kV min., for one minute
Radiation noise (FT noise): 1 kV min., for one minute
Installation
Requirements
Ground
Ground to 100 Ω max.
Cooling Method
Natural cooling
Dimensions (mm)
125 × 95 (H × D)
SVB-01
TX
ERRRUN
SPD
SIZE
M/S
ON
OFF
10
1
M-I/II
CN1
CN2
LED indicators
ࠉRotary switches
(For station address
setting)
DIP switch
MECHATROLINK
connector
MECHATROLINK
connector
