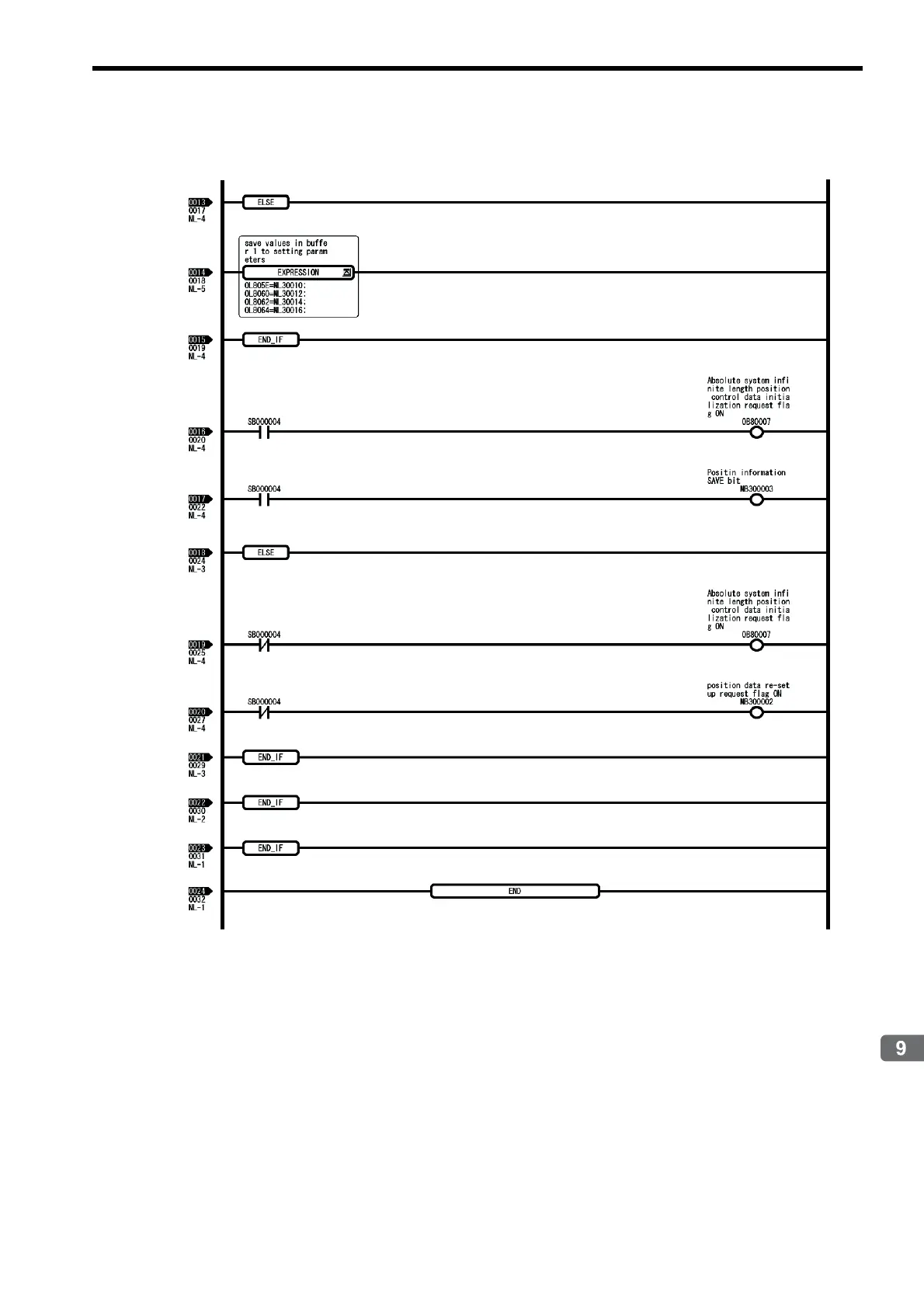

9.4 Absolute Position Detection for Infinite Length Axes
9.4.5 Infinite Length Position
Control without Simple Absolute Positions
9-27
Absolute Position Detection
There are no restriction
s in the executing order for ladder
programs H1
0 and H1
1 when an absolute encoder is
used
for a finite
length axis.
368
370
