2.3 Mounting/Removing SVB-01 Modules
2.3.1 Mounting an SVB-01 Module
2-8
2.

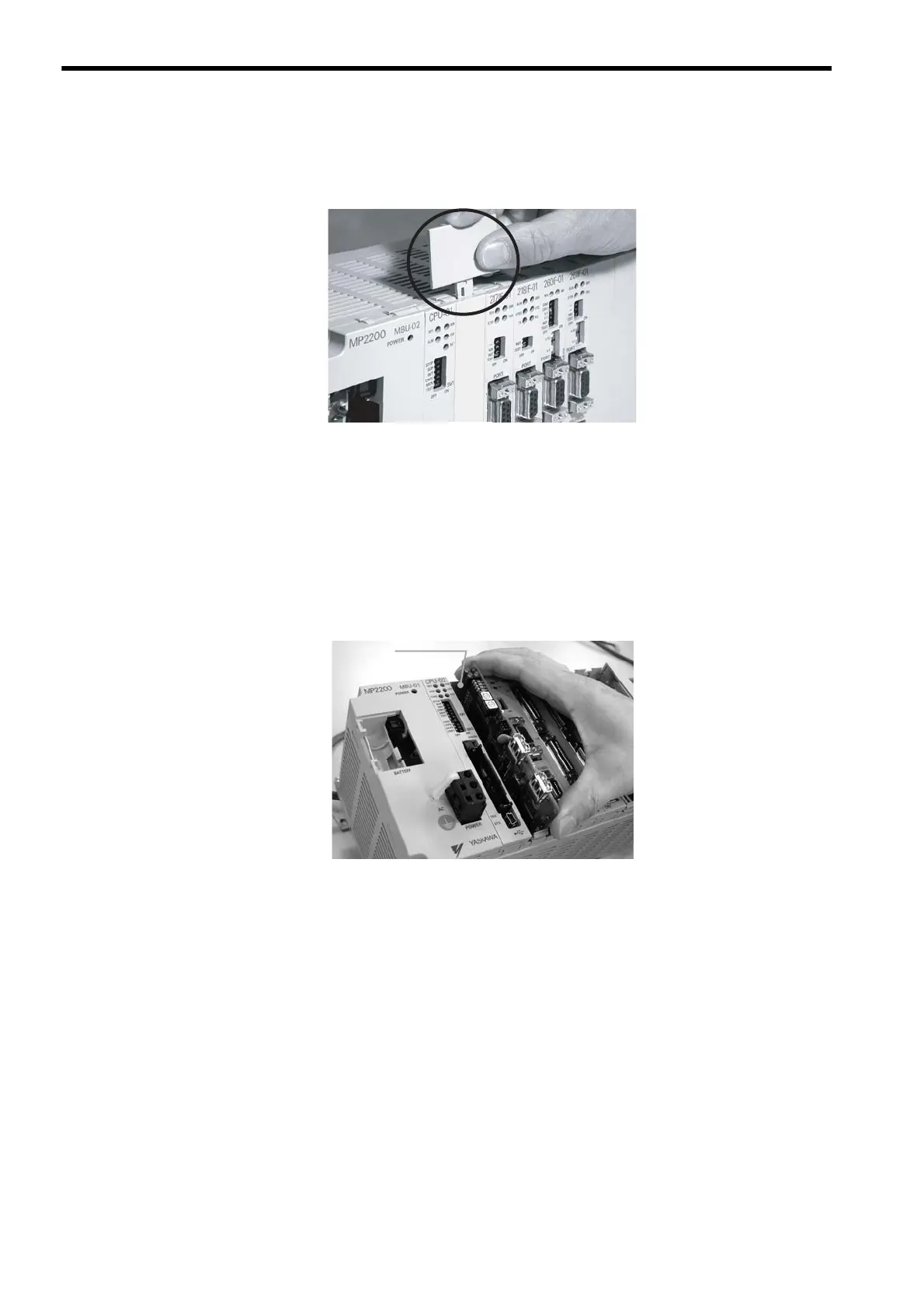

Remove the cover of the SVB-01 Module.
Insert the tab of the battery cover into the slot on the top of the cover of the SVB-01 Module to release it, as
shown in the diagram. Turn the front of the battery cover towards you for this operation.
Release the bottom in the same way.
( 3 ) Mounting SVB-01 Modules
1.
Insert a SVB-01 Module.
Guide rails can be seen or are located at the top and bottom of the option slot, as shown in the following diagram.
While holding both the top and bottom of the Module, line up the Module with the guide rails inside the option
slot, make sure the Module is straight and insert it.
If the Module is not lined up with the guide rails, the FG bar on the bottom inside the slot may become dam-
aged.
2.
Mount onto the mounting base.
After the SVB-01 Module has been completely inserted, firmly push the front of the Module into the mounting-
base connectors. If the SVB-01 Module has been installed correctly, the front of the SVB-01 Module and the
hook will be aligned.
To Next Page
