Appendix C Initializing the Absolute Encoder
C.1
Σ
-
III
,
Σ
-
V
, and
Σ
-7 Series SERVOP
ACKs
A-13
Appendices
3.

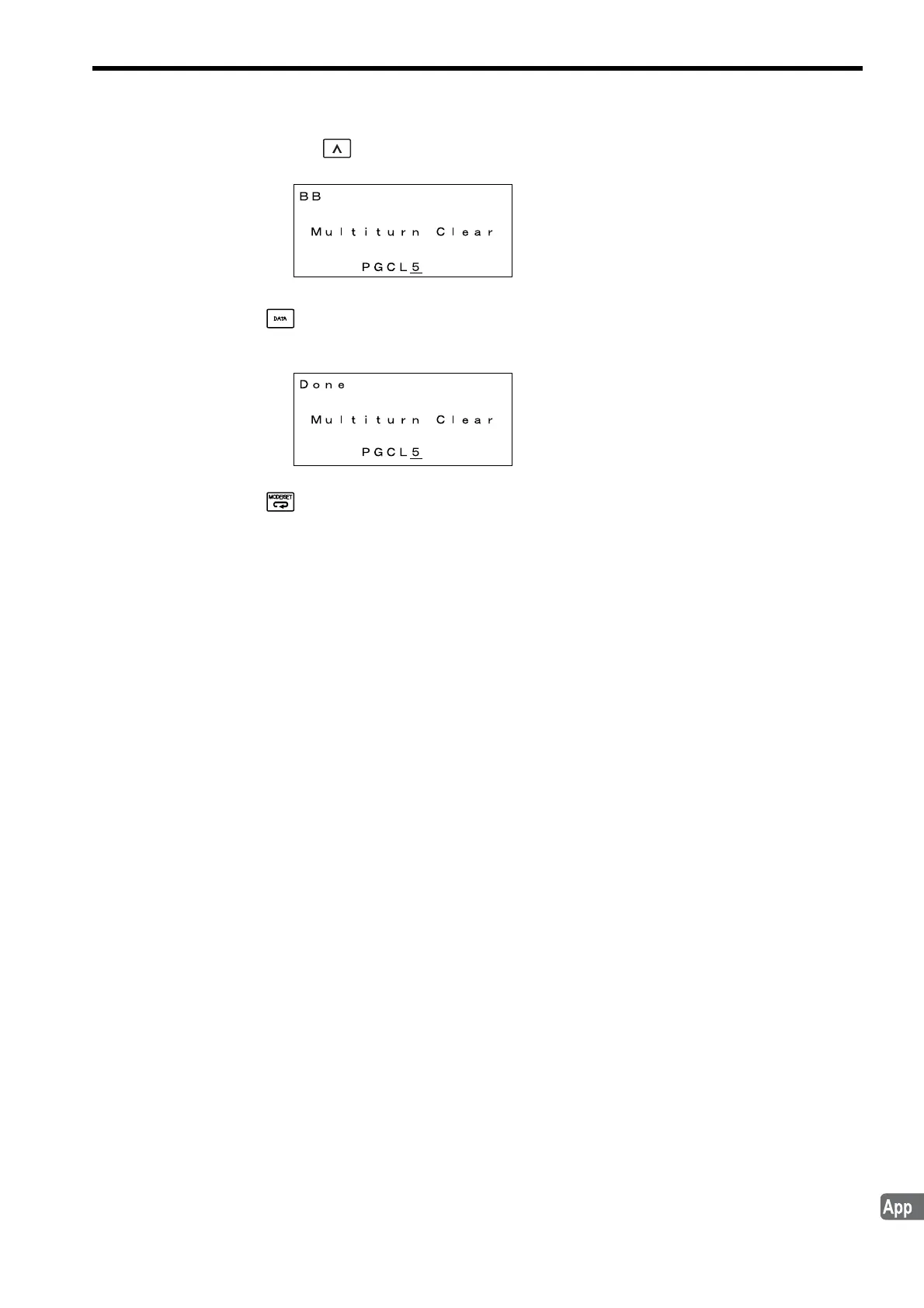

Keep pressing the
Key until “PGCL1” is changed to “PGCL5.”
4.
Press the
Key
.
“BB” in the status display changes
to “Done.”
5.
Press the
Key
. The display returns to the Utility Function Mode main menu.
This completes setting up the absolute encoder
.
T
urn the power supply OFF and then back ON to reset the SER
VO-
PA
C
K
.
514
516
