YASKAWA P7 User Manual

EMC Compatibility G - 4

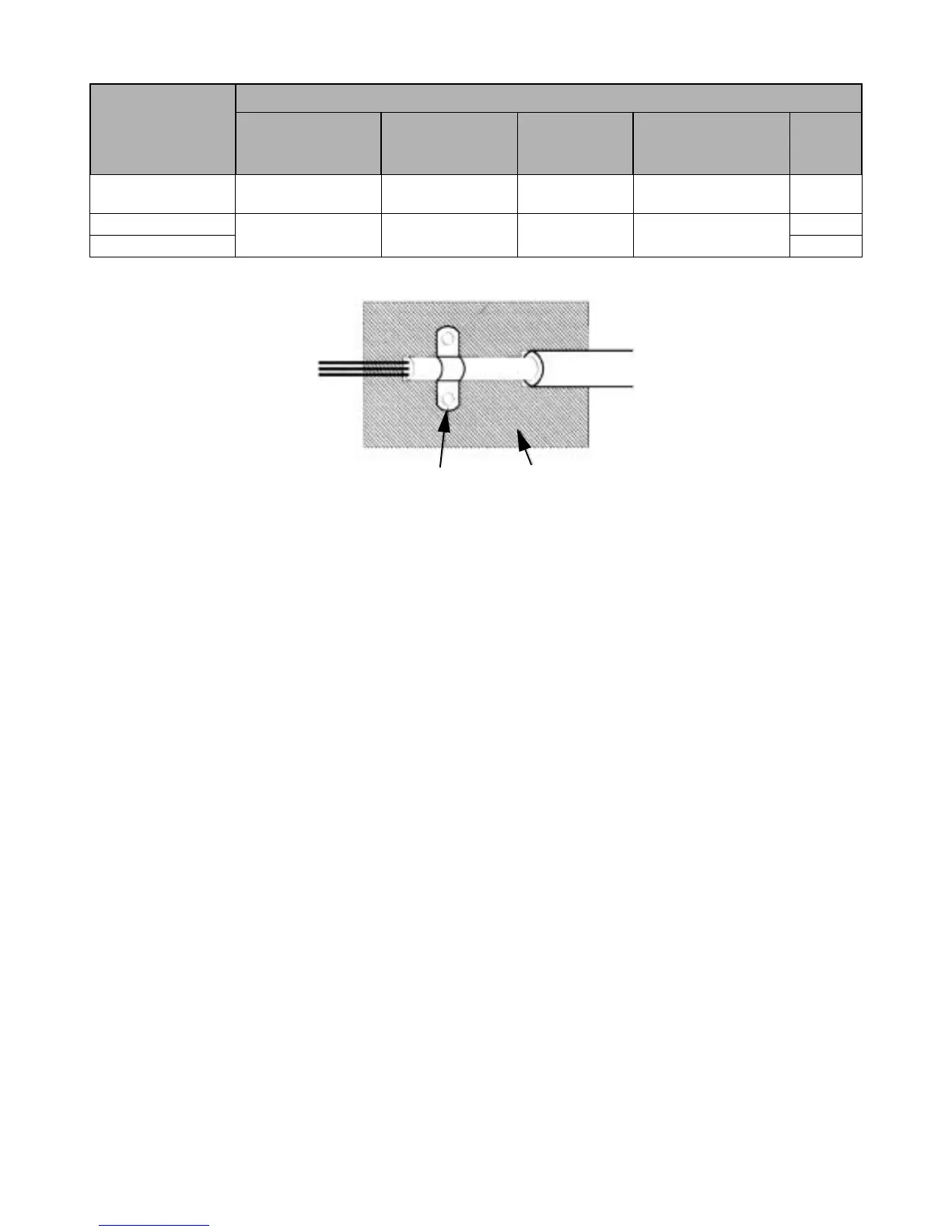

Fig G.1 Grounding Surface Layout
The grounding surfaces must be highly conductive bare metal. Remove any varnish or paint from grounding surfaces.
• Ground the cable shields at both ends.
• Ground the motor of the machine/application.
4075
FS5972-170-40 170 A
13.23
(6)
4.750 x 17.750 x 6.6675
(120 x 451 x 170)
125
4090
FS5972-250-37 250 A
24.25
(11)
5.125 x 24 x 9.4375
(130 x 610 x 240)
150
4110 200
Drive Model
CIMR-P7U
EMC Filter
Model Number Current Rating
Weight
lb.
(kg)
Dimensions
inches
(mm)
Nominal
Hp
Ground clip Ground plate
