Digital Operator 3 - 8
! Operation Menu (-DRIVE-)
This menu is used for setting a speed command or monitoring values such as output frequency and output current. It is also
used for displaying the fault history and the fault traces. The Drive must be in this menu in order to run, see parameter
b1-08.
U1 Monitor List
Follow the key operations below (Fig.3.3) to access the Operation Menu:

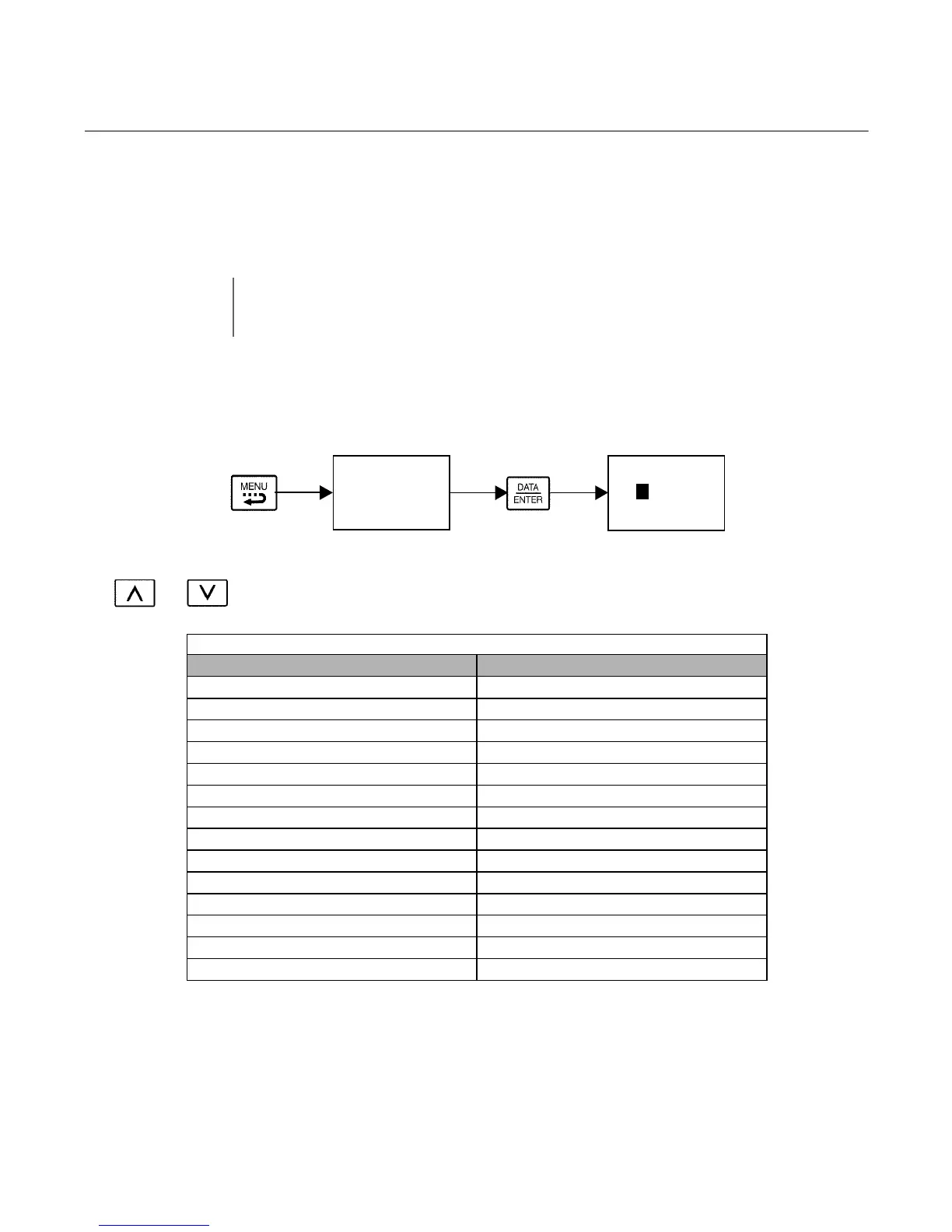

Fig 3.3 U1 Monitor List Access Procedure
Use and keys to scroll through the U1 “Monitor” parameter list. See Appendix A for functional description.
IMPORTANT
Leaving the Drive in a menu other than the Operation Menu, will prohibit the Drive from running. While
running, if the Drive is in a menu other than “Operation” and the run command is removed and re-applied,
the Drive will stop and will not start until the Operation Menu is selected .
Table 3.8 U1 Monitor List
Monitor Monitor
U1-01 Frequency Ref U1-20 SFS Output (Soft Starter Signal)
U1-02 Output Freq U1-24 PI Feedback
U1-03 Output Current U1-28 CPU ID
U1-06 Output Voltage U1-29 kWh
U1-07 DC Bus Voltage U1-30 MWh
U1-08 Output kWatts U1-34 OPE Detected
U1-10 Input Term Sts U1-36 PI Input
U1-11 Output Term Sts U1-37 PI Output
U1-12 Int Ctl Sts 1 U1-38 PI Setpoint
U1-13 Elapsed Time U1-39 Transmit Err
U1-14 FLASH ID U1-40 FAN Elapsed Time
U1-15 Term A1 Level U1-51 Auto Mode Fref
U1-16 Term A2 Level U1-52 Hand Mode Fref
U1-18 Mot SEC Current (Secondary Current) U1-53 PI Feedback 2
-DRIVE-
** Main Menu **
- - - - - - - - - - - - - -
Operation
-DRIVE- Rdy
Frequency Ref
U1-01= 0.00Hz
- - - - - - - - - - - - - - - - - - - -
U1-02= 0.00Hz
U1
-
03= 0.00A
x1
