Electrical Installation 2 - 27
! Terminal Connections
Connections to Drive terminals are shown.

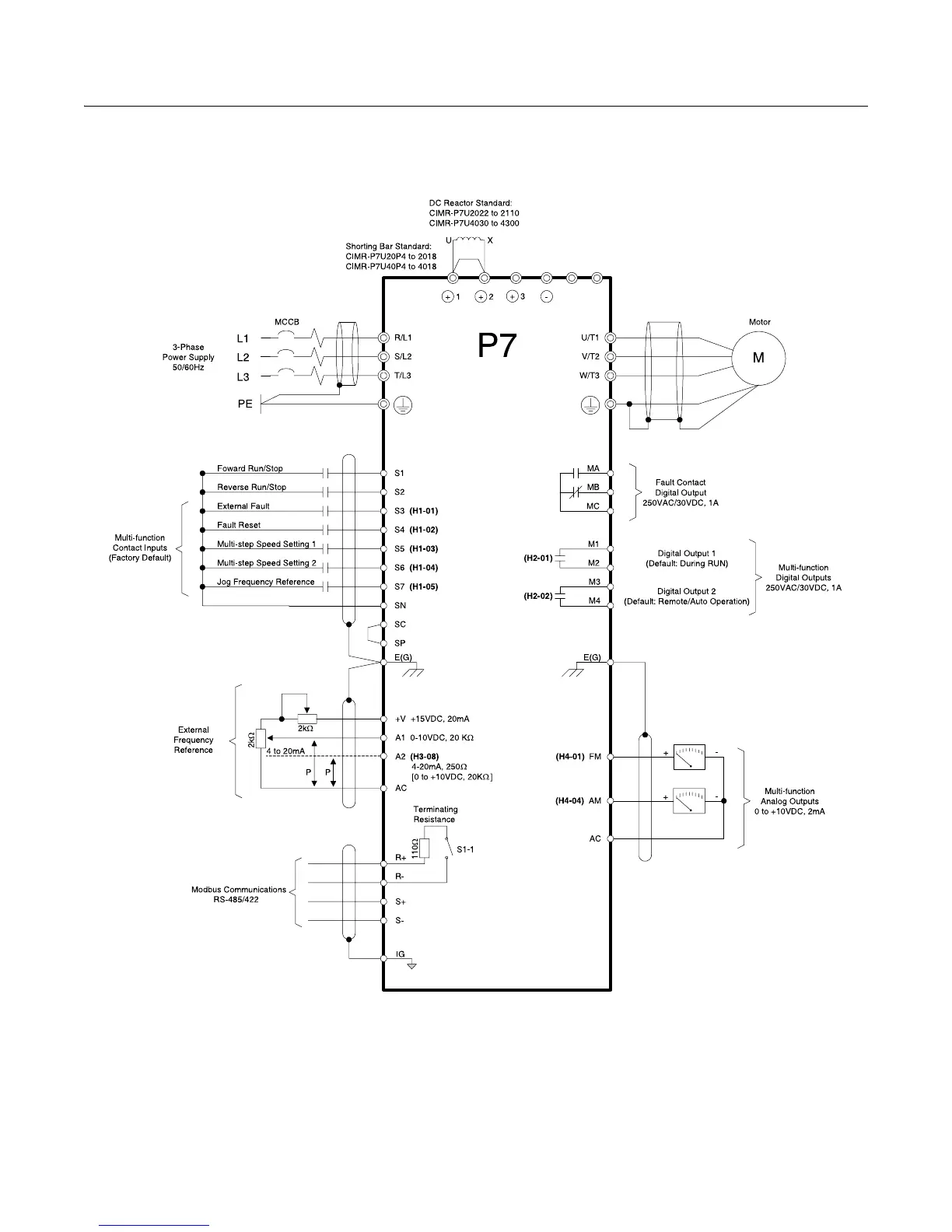

Fig 2.12 Terminal Connections
B1
Braking terminals only on
CIMR-P7U 20P4 to 2018
CIMR-P7U 4030 to 4300
B2
