Physical Installation 1 - 17
! Models CIMR-P7U2022 thru 2110 (30HP to 150HP @ 208V/240V) and 4030 thru
4300 (40HP to 500HP @ 480V)
For Models CIMR-P7U2022/4030 and larger, remove the terminal cover and then use the following procedures to remove the
Digital Operator and front cover.
#Removing the Digital Operator
Use the same procedure for Models CIMR-P7U2018/4018 and smaller.
#Removing the Front Cover
Loosen all screws on the front cover. Lift up at the location labeled 1 at the top of the control circuit terminal card and move in
the direction of arrow 2.

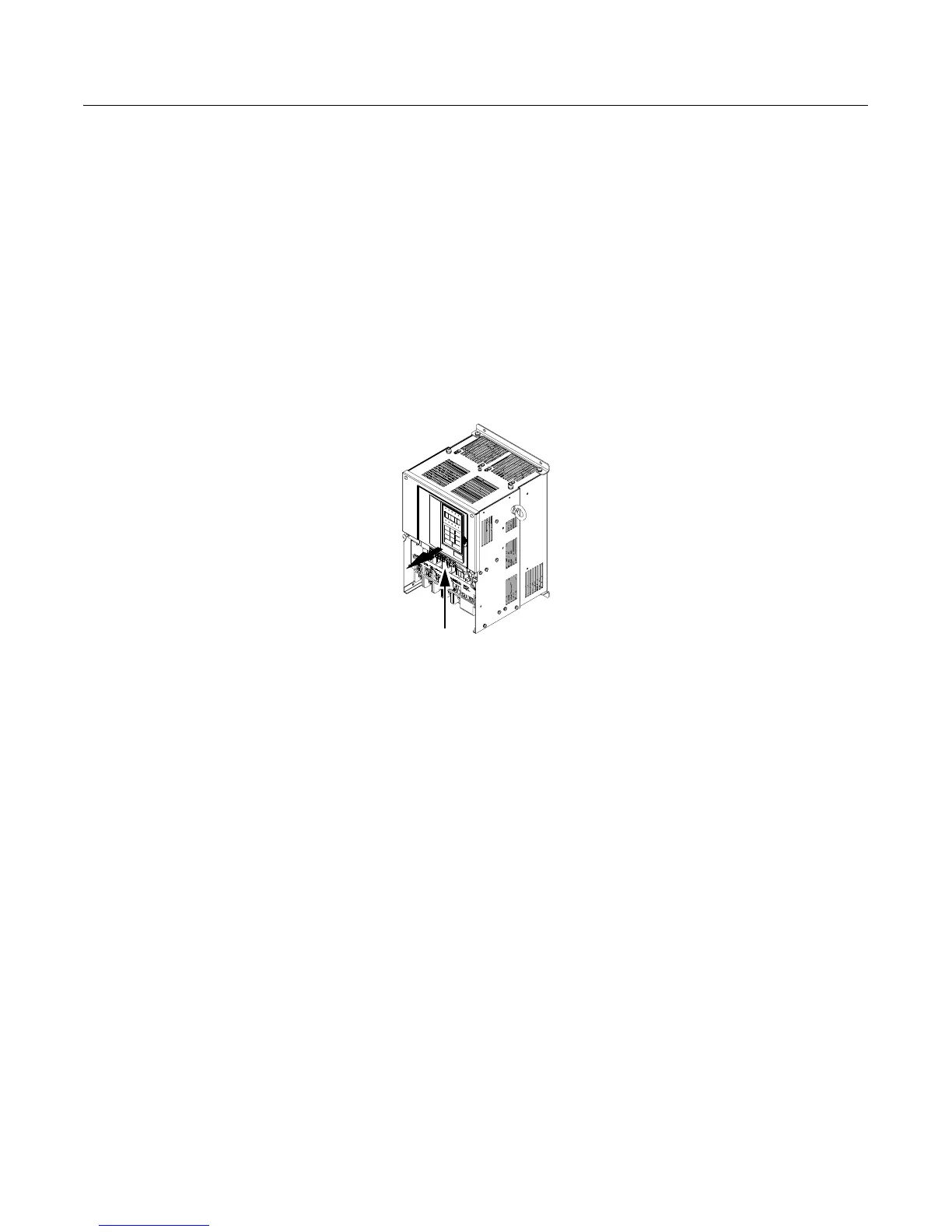

Fig 1.13 Removing the Front Cover
# Attaching the Front Cover
Attach the front cover by reversing the procedure to remove it.
1.Confirm that the Digital Operator is not mounted on the front cover. Contact faults can occur if the cover is attached while
the Digital Operator is mounted to it.
2.Insert the tab on the top of the front cover into the slot on the Drive and press in on the cover until it snaps into place on the
Drive.
1
2
