5.1 Type of Adjustments and Basic Adjustment Procedure
5-7
5
Adjustments

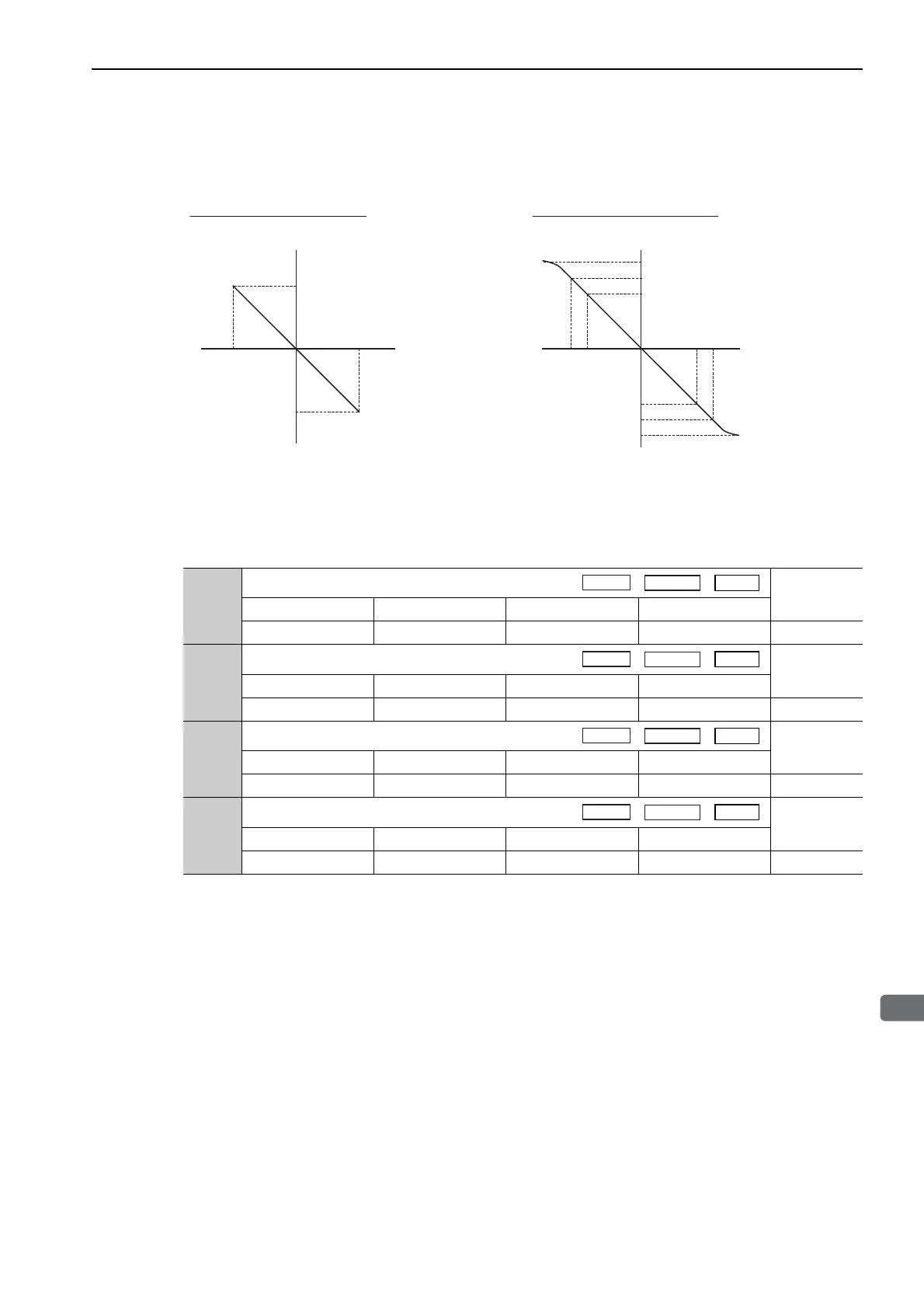

<Example>
Analog monitor output at n.00 (motor rotating speed setting)
(4) Related Parameters
Use the following parameters to change the monitor factor and the offset.
+6 V
-6 V
-600
+600
+8 V
-8 V
-800
+800
+10 V (approx.)
-10 V (approx.)
+6 V
-6 V
-6000
+6000
Analog monitor
output voltage [V]
Analog monitor
output voltage [V]
When multiplier is set to × 1:
When multiplier is set to × 10:
Motor speed
[min
-1
]
Motor speed
[min
-1
]
Note: Linear effective range: within ± 8 V
Output resolution: 16-bit
Pn550
Analog Monitor 1 Offset Voltage
Classification
Setting Range Setting Unit Factory Setting When Enabled
-10000 to 10000 0.1 V 0 Immediately Setup
Pn551
Analog Monitor 2 Offset Voltage
Classification
Setting Range Setting Unit Factory Setting When Enabled
-10000 to 10000 0.1 V 0 Immediately Setup
Pn552
Analog Monitor Magnification (× 1)
Classification
Setting Range Setting Unit Factory Setting When Enabled
-10000 to 10000 × 0.01 100 Immediately Setup
Pn553
Analog Monitor Magnification (× 2)
Classification
Setting Range Setting Unit Factory Setting When Enabled
-10000 to 10000 × 0.01 100 Immediately Setup
Speed
Position
Torque
Speed
Position
Torque
Speed
Position
Torque
Speed
Position
Torque
