7.3 Monitoring Input Signals
7-5
7
Monitor Displays (Un
)
7.3.2
Input Signal Display Example

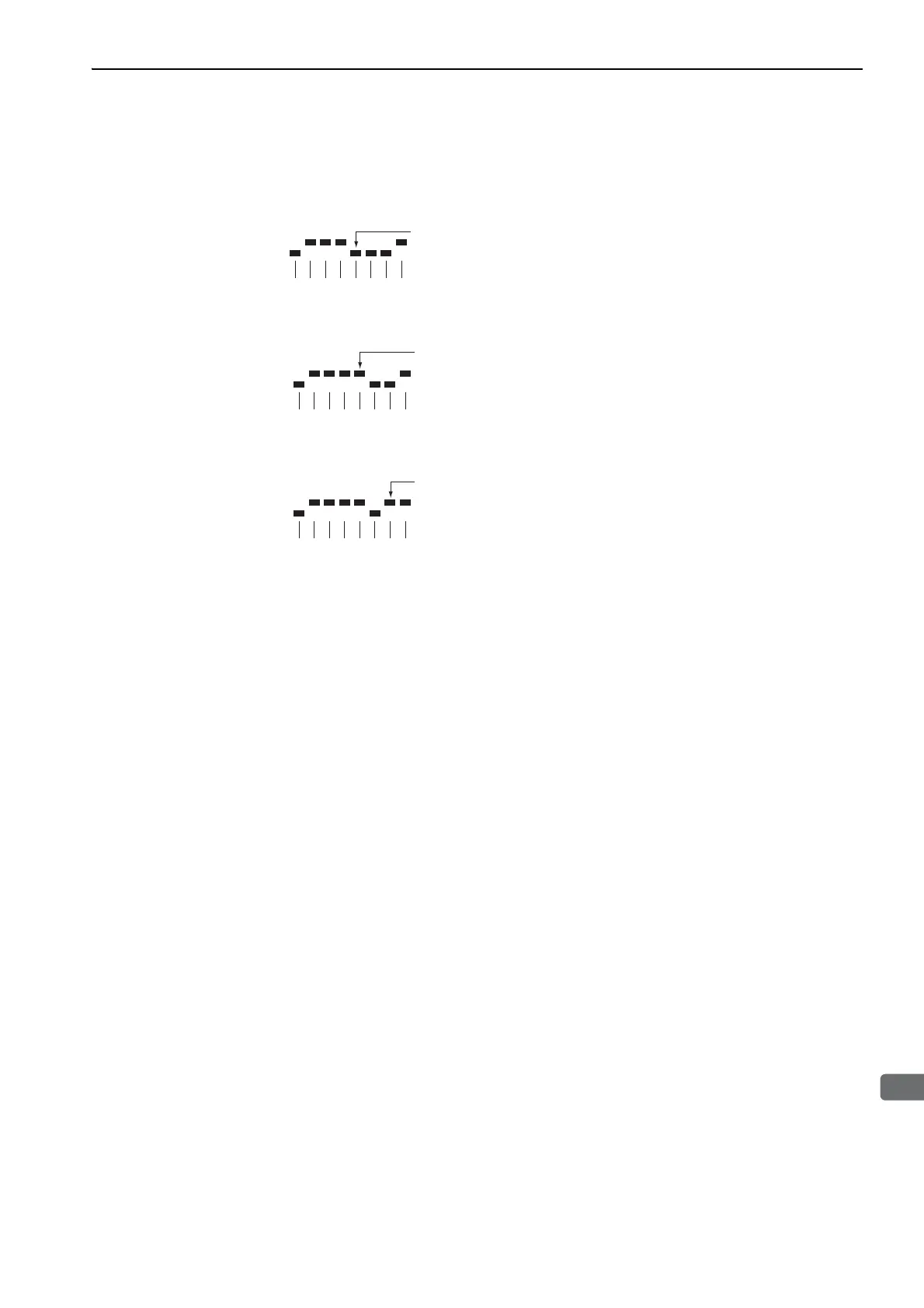

Input signals are displayed as shown below
.
•
When the /DEC signal is ON
•
When the /DEC signal is OFF
•
When the P-OT signal is activated
Un005=
8
7
6
5
4
3
2
1
digit
The fourth digit
is in the lower level.
Un005=
87654321
digit
The fourth digit
is in the upper level.
Un005=
87654321
digit
The second digit
is in the upper level.
273
275
