1 Outline
1.5.2 Connecting to SGDV-A11 SERVOPACK
1-18

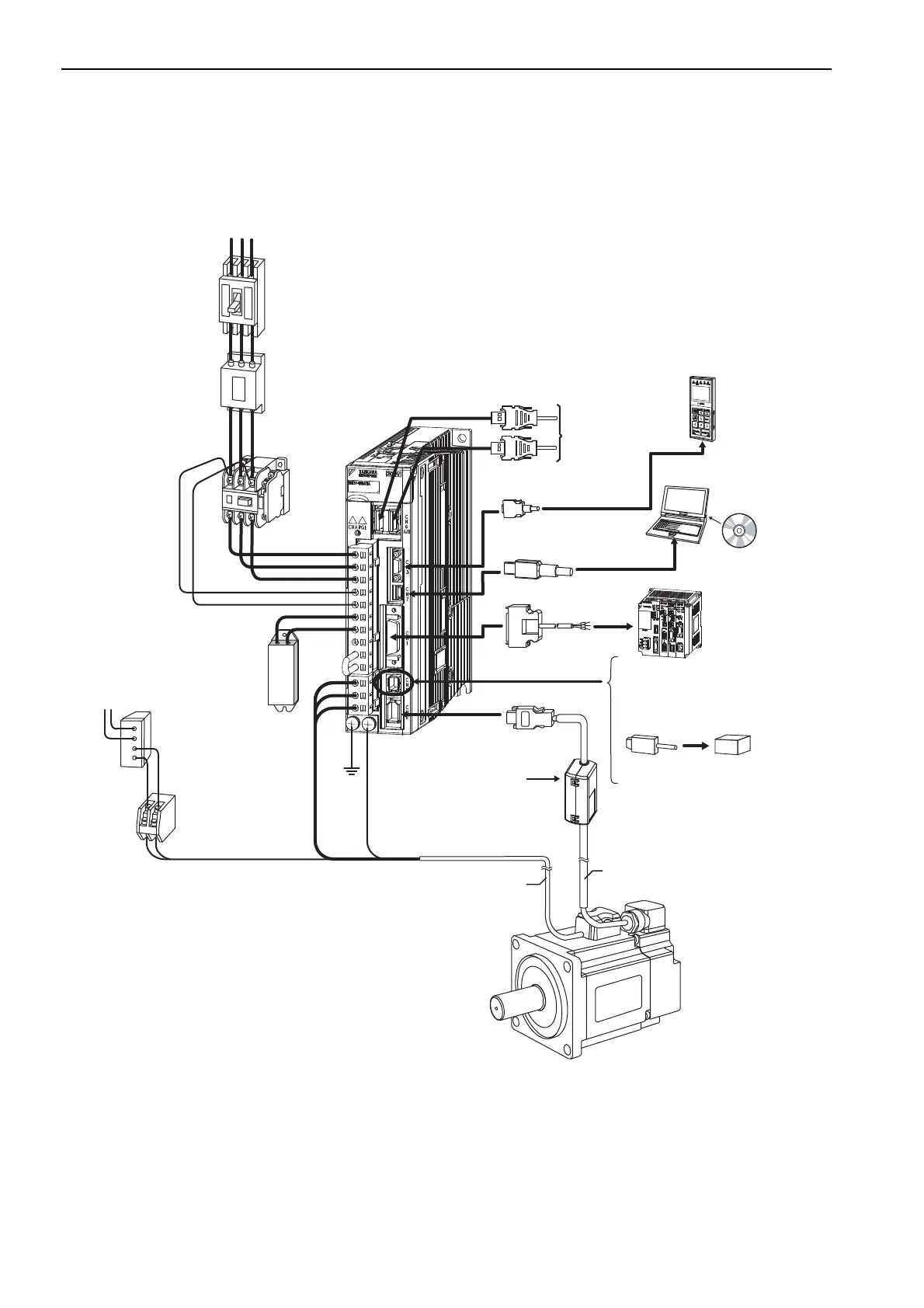

1.5.2 Connecting to SGDV-A11 SERVOPACK
(1) Using a Three-phase, 200-V Power Supply
∗1. Before connecting an external regenerative resistor to the SERVOPACK, refer to 3.7 Connecting Regenerative Resis-
tors.
∗2. Use a 24-VDC power supply. (Not included.)
If using a 90-VDC power supply for a brake, however, use one of the following power supplies.
• For 200-V input voltage: LPSE-2H01-E
• For 100-V input voltage: LPDE-1H01-E
For details, refer to
Σ -V Series Product Catalog (No.: KAEP S800000 42).
Brake power supply
∗2
Servomotor main
circuit cable
Encoder cable
Battery case
Magnetic contactor
Regenerative
resistor
∗1
Noise filter
Molded-case
circuit breaker
(MCCB)
Magnetic
contactor
I/O signal cable
SGDV-A11
SERVOPACK
SGMJV/SGMAV/SGMPS/
SGMGV/SGMSV/SGMCS
Servomotor
Power supply
Three-phase 200 VAC
R S T
Protects the power
line by shutting the
circuit OFF when
overcurrent is
detected.
Eliminates
external noise from
the power line.
Used for a servomotor
with a brake.
Turns the servo
ON and OFF.
Install a surge
absorber.
Turns the brake power supply
ON and OFF.
Install a surge absorber.
(when an absolute
encoder is used.)
Connection cable
for digital operator
Connection cable
for personal computer
Digital
operator
Personal
computer
200 VAC
Connect to the
MECHATROLINK-II
Safety function
devices
Host controller
When not using the safety function,
use the SERVOPACK with the safety
function’s jumper connector inserted.
When using the safety function,
use the safety connection cable.
Safety
connection cable
