8 Fully-closed Loop Control
8.1.4 Example of Connections to External Encoders
8-6

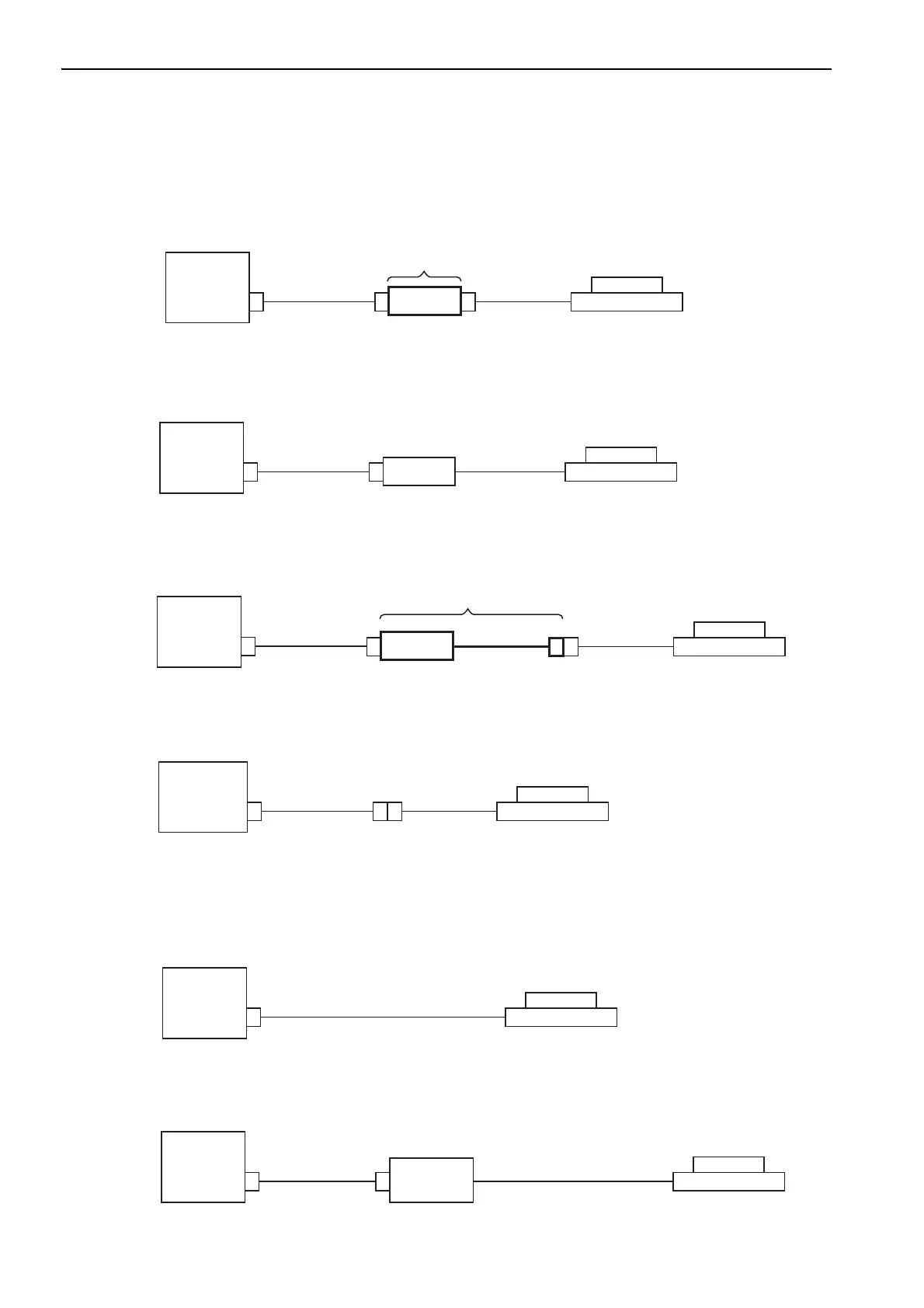

8.1.4 Example of Connections to External Encoders
(1) External Encoder by Heidenhain
 Model: LIDA48 or LIF48 (1 Vp-p Analog Voltage)
 Model: LIC4100 Series
(2)
External Encoder by Renishaw plc
(3) External Encoder by Mitutoyo Corporation
(4) External Encoder by Magnescale Co., Ltd.
 Model: SR75, SR85, SR77, SR87, RU77
 Model: SL700, SL710, SL720, SL730
CN31
JZSP-CLP70--E
CN1 CN2
SERVOPACK with
Fully-closed Module
Serial converter unit
Connection cable
by Heidenhain
External encoder
by Heidenhain
JZDP-D003-000-E
SERVOPACK with
Fully-closed Module
CN31
Interface unit
by Heidenhain
EIB3391
Connection cable
by Heidenhain
External encoder
by Heidenhain
CN1 CN2
CN31
JZSP-CLP70--E
Serial converter unit
JZDP-D005-000-E
External encoder
by Renishaw plc
D-sub 15-pin connector
SERVOPACK with
Fully-closed Module
CN31
JZSP-CLP70--E Connection cable
by Mitutoyo Corporation
External encoder
by Mitutoyo Corporation
SERVOPACK with
Fully-closed Module
CN31
Connection cable
by Magnescale Co., Ltd.
External encoder by
Magnescale Co., Ltd.
SERVOPACK with
Fully-closed Module
CN31
JZSP-CMP0--E
Head with interpolator
PL101-RY
Connection cable by
Magnescale Co., Ltd.
External encoder by
Magnescale Co., Ltd.
SERVOPACK with
Fully-closed Module
