YASKAWA SGMSV User Manual

5 Adjustments

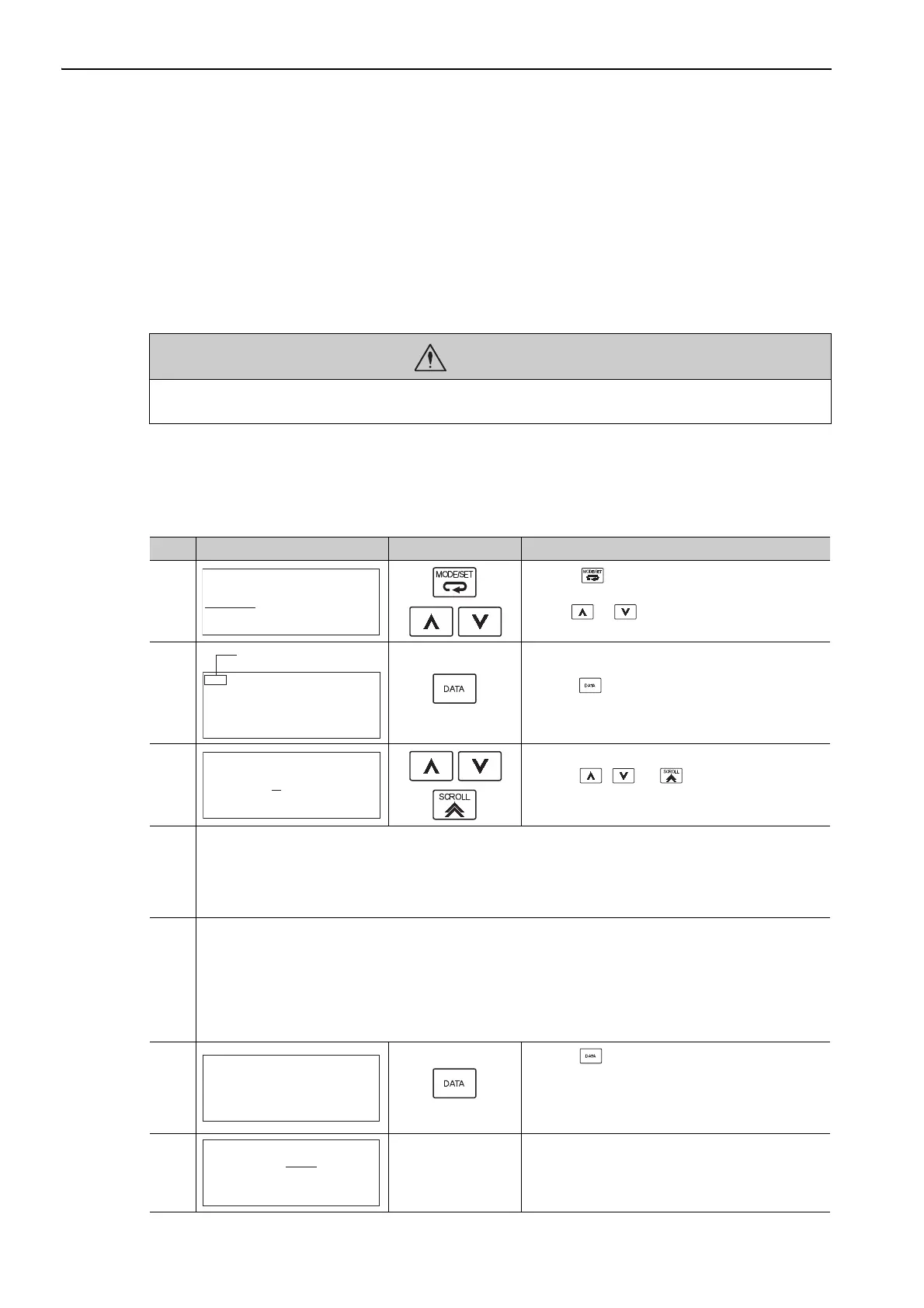

5.4.2 Advanced Autotuning by Reference Procedure
5-30
5.4.2 Advanced Autotuning by Reference Procedure
The following procedure is used for advanced autotuning by reference.
Advanced autotuning by reference is performed from the digital operator (option) or SigmaWin+.
Here, the operating procedure from the digital operator is described.
Refer to the
Σ -V Series User’s Manual, Operation of Digital Operator (No.: SIEP S800000 55) for basic key
operations of the digital operator.
(1) Operating Procedure
Set the correct moment of inertia ratio in Pn103 by using the advanced autotuning before performing this pro-
cedure.
CAUTION
• When using the MP2000 Series with phase control, select the mode = 1 (standard level). If 2 or 3 is
selected, phase control of the MP2000 Series may not be possible.
Step Display after Operation Keys Operation
1
Press the Key to view the main menu for the
utility function.
Use the or Key to move through the list and
select Fn202.
2
Press the Key to display the initial setting screen
for Fn202 (Advanced Autotuning by Reference).
3
Press the , , or Key and set the items in
steps 3-1 and 3-2.
3-1
Mode Selection
Select the mode.
Mode = 1: Makes adjustments considering response characteristics and stability (Standard level).
Mode = 2: Makes adjustments for positioning [Factory setting].
Mode = 3: Makes adjustments for positioning, giving priority to overshooting suppression.
3-2
Type Selection
Select the type according to the machine element to be driven.
If there is noise or the gain does not increase, better results may be obtained by changing the rigidity type.
Type = 1: For belt drive mechanisms
Type = 2: For ball screw drive mechanisms [Factory setting]
Type = 3: For rigid systems in which the servomotor is directly coupled to the machine (without gear or other
transmissions)
4
Press the Key. The advanced autotuning by ref-
erence execution screen will be displayed.
Note: If the mode is set to 1, Pn102 is displayed. If
the mode is set to 2 or 3, the Pn102 display will
change to the Pn141.
5 − Send an SV_ON command from the host controller.
㧮㧮ޓ㧲㨁㧺㧯㨀㧵㧻㧺  
㧲㨚㧞㧜㧝㧦㧭㧭㨀
㧲㨚㧞㧜㧞㧦㧾㨑㨒㧭㧭㨀
㧲㨚㧞㧜㧟㧦㧻㨚㨑㧼㨞㨙㨀㨡㨚
㧲㨚㧞㧜㧠㧦㧭㨂㨕㨎ޓ㧿㨡㨜
㧮㧮㧭㨐㨢㨍㨚㨏㨑㨐㧭㨀
ޓ㧹 㨛 㨐 㨑㧩㧟ޓ㨀㨥㨜㨑㧩㧞
Status Display
㧮㧮㧭㨐㨢㨍㨚㨏㨑㨐㧭㨀
ޓ㧹 㨛 㨐 㨑㧩㧟ޓ㨀㨥㨜㨑㧩㧞
㧮㧮㧭㨐㨢㨍㨚㨏㨑㨐㧭㨀
㧼㨚㧝㧜㧟㧩㧜㧜㧟㧜㧜
㧼㨚㧝㧜㧜㧩㧜㧜㧠㧜㧜
㧼㨚㧝㧜㧝㧩㧜㧜㧞㧜㧜㧜
㧼㨚㧝㧠㧝㧩㧜㧜㧡㧜㧜
㧾㨁㧺㧭㨐㨢㨍㨚㨏㨑㨐㧭㨀
㧼㨚㧝㧜㧟㧩㧜㧜㧟㧜㧜
㧼㨚㧝㧜㧜㧩㧜㧜㧠㧜㧜
㧼㨚㧝㧜㧝㧩㧜㧜㧞㧜㧜㧜
㧼㨚㧝㧠㧝㧩㧜㧜㧡㧜㧜
