YASKAWA SGMSV User Manual

5 Adjustments
5.8.6 Backlash Compensation Function
5-66
 When Servo is ON
The backlash compensation value (Pn231) is added in the compensation direction when the servo is ON (i.e.,
the servomotor is powered) and a reference is input in the same direction as the backlash compensation direc-
tion (Pn230.0). If there is a reference input in the direction opposite to the backlash compensation direction,
the backlash compensation value is not added (i.e., backlash compensation is not performed).
The relationship between APOS and the servomotor shaft position is as follows:
• If a reference is input in the compensation direction: APOS = Motor shaft position - Pn231
• If a reference is input in the direction opposite to the compensation direction: APOS = Motor shaft position

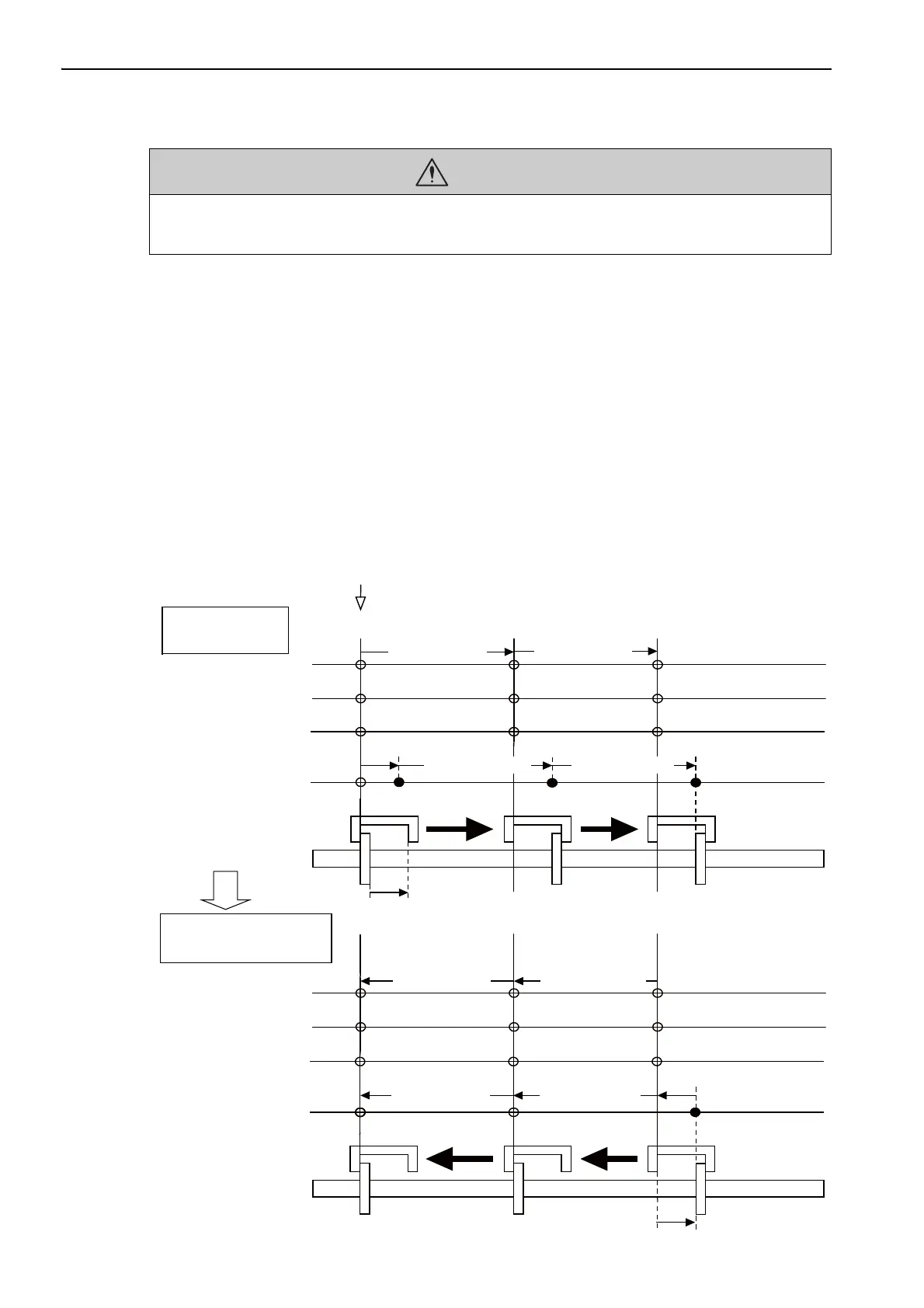

The following figure shows driving the servomotor in the forward direction from target position TPOS0 to
TPOS1 and then to TPOS2, and then returning from TPOS2 to TPOS1 and then to TPOS0.
Backlash compensation is applied when moving from TPOS0 to TPOS1, but not when moving from TPOS2 to
TPOS1.
CAUTION
• The encoder output pulse will output the number of encoder pulses for which driving was actually per-
formed, including the backlash compensation value. If using the encoder output pulse for position feed-
back at the host controller, must consider the backlash compensation value.
Machine axis
Motor axis
Machine axis
Pn231
Travel distance 䋱 Travel distance 䋲
Target position
TPOS0
Travel distance 䋱
Travel distance 䋲
Target position
TPOS1
Target position
TPOS2
Machine axis
Motor axis
Machine axis
Pn231
Travel distance 䋱 Travel distance 䋲
Travel distance 䋱 Travel distance 䋲
Motor axis
Motor axis
POS
APOS
Backlash (= Pn231)
POS
APOS
Backlash (= Pn231)
Servo ON
If a reference is input
in the direction opposite
to the compensation direction
If a reference is input
in the compensation
direction
