6.8 Offset Adjustment of Analog Monitor Output (Fn00C)
6-15
6
Utility Functions (Fn)
(3) Operating Procedure

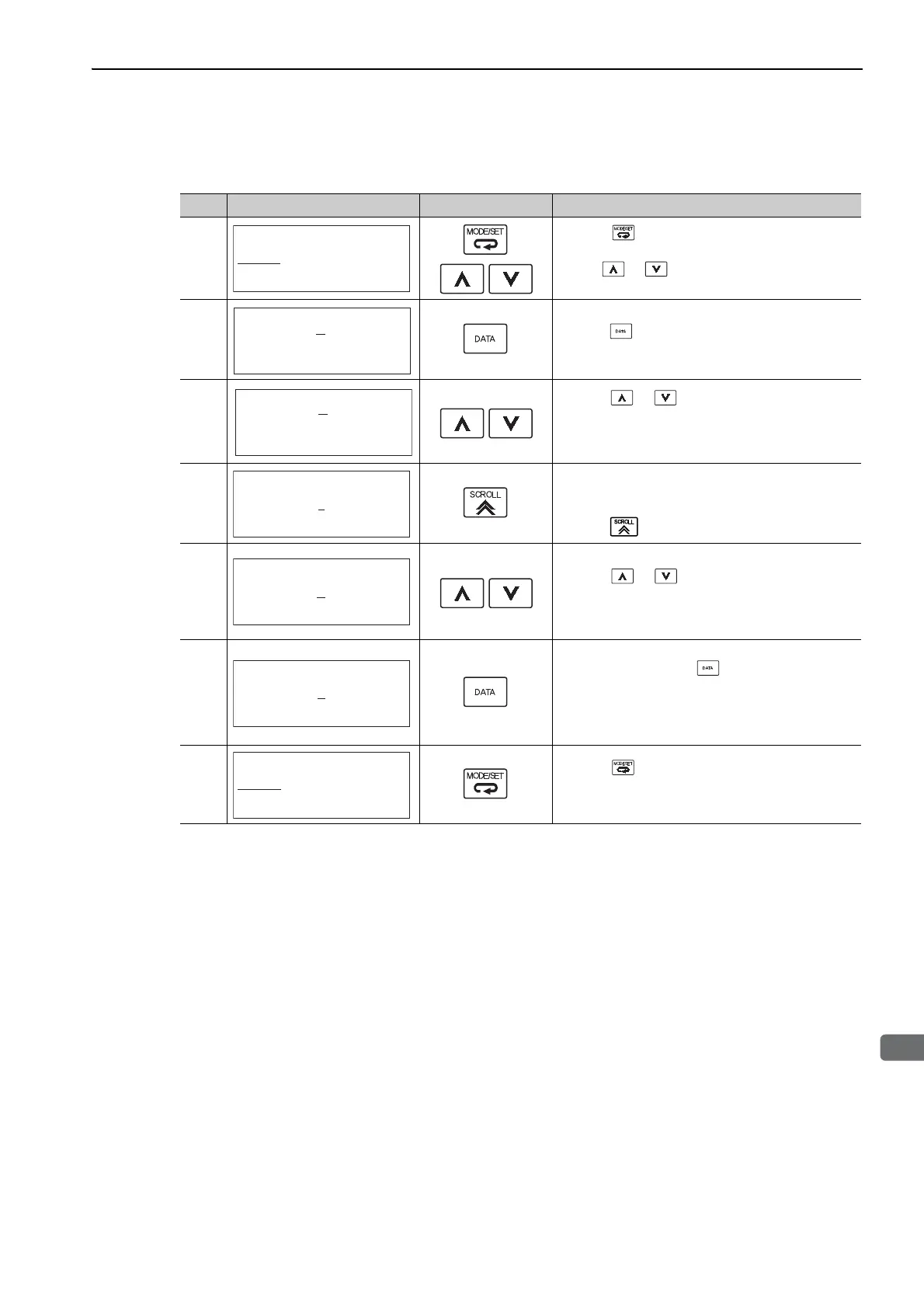

Use the following procedure to perform the offset adjustment of analog monitor output.
Step Display after Operation Keys Operation
1
Press the Key to view the main menu for the
utility function.
Use the or Key to move through the list and
select Fn00C.
2
Press the Key. The display changes to the Fn00C
execution display.
3
Press the or Key to adjust the offset of CH1
(torque reference monitor).
Adjust the offset so that the measurement instrument
reading is as close to 0 V as possible.
4
After the offset adjustment of CH1 has completed,
adjust the offset of CH2 (motor rotating speed moni-
tor).
Press the Key. The cursor moves to CH2 side.
5
Adjust the offset of CH2 in the same way as for CH1.
Press the or Key to adjust the offset of
CH2.
Adjust the offset so that the measurement instrument
reading is as close to 0 V as possible.
6
After having completed the offset adjustment both for
CH1 and CH2, press the Key.
The adjustment results are saved in the SERVO-
PACK, and the status display shows "DONE" for one
second. The status display then returns to show "BB"
again.
7
Press the Key.
The display returns to the main menu of the utility
function.
BB − FUNCTION−
Fn00B:Trq Adj
Fn00C:MonZero Adj
Fn00D:MonGain Adj
Fn00E:Cur AutoAdj
BB − Zero ADJ−
CH1=− 00002
CH2=− 00001
Un 002=0 00000
Un 000=0 00000
BB − Zero ADJ−
CH1=− 00005
CH2=− 00001
Un 002=0 00000
Un 000=0 00000
BB − Zero ADJ−
CH1=− 00005
CH2=− 00001
Un 002=0 00000
Un 000=0 00000
BB − Zero ADJ−
CH1=− 00005
CH2=− 00006
Un 002=0 00000
Un 000=0 00000
BB − Zero ADJ−
CH1=− 00005
CH2=− 00006
Un 002=0 00000
Un 000=0 00000
BB − FUNCTION−
Fn00B:Trq Adj
Fn00C:MonZero Adj
Fn00D:MonGain Adj
Fn00E:Cur AutoAdj
