6 Utility Functions (Fn)
6-20
∗ Examples of the amount to adjust the offsets
• First time: Increments of 10
• Second time: Increments of 5
• Third time: Increments of 1
The above values are a rough guide. Adjust the amount to adjust the offset and the number of times to
repeat the changes according to your system.
7
Press the key to move the cursor to the U-phase
offset (ZADJIU).
8
Repeat steps 4 through 7 a number of times using a
smaller amount of change than was previously used*
to make fine adjustments to the offsets.
9
Press the Key to save the result of adjustment in
the SERVOPACK.
When the saving is completed, the status display
shows "DONE" for one second. The status display
then returns to show "RUN" again.
10
Press the Key.
The display returns to the main menu of the utility
function.
(cont’d)

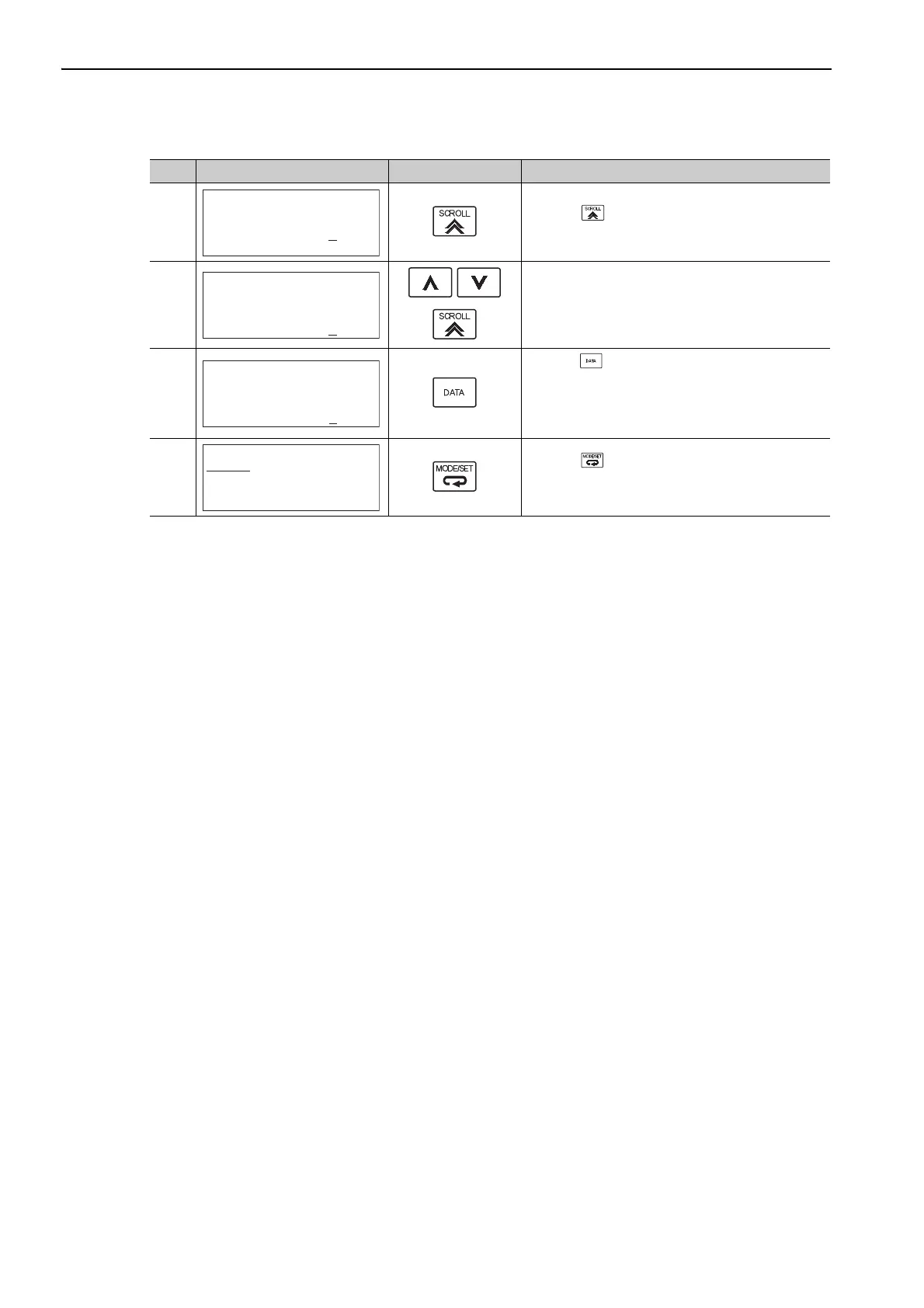

Step Display after Operation Keys Operation
RUN
Manual Offset− ADJ
of Motor Current
ZADJIU=-00019
ZADJIV=-00016
RUN
Manual Offset− ADJ
of Motor Current
ZADJIU=-00024
ZADJIV=-00021
RUN
Manual Offset− ADJ
of Motor Current
ZADJIU=- 00019
ZADJIV=- 00016
RUN − FUNCTION−
Fn00F:Cur ManuAdj
Fn010:Prm Protect
Fn011:Motor Info
Fn012:Soft Ver
To Next Page
