4-9
IM 04L20A01-01E
Measurement Input and Alarm Setup Operations
4
Alarm Output, Alarm Type, Alarm Delay Time <Setting Mode>
Set the alarm output after setting the range.
All alarm settings of a channel are cancelled in the following cases.
• When the input type ([Volt], [TC], etc.) is changed.
• When the input range is changed.
• When the upper or lower limit of the span or scale is changed on channels that are set
to scale or square root computation (including changes in the decimal point position).
When [Range] is set to [Skip], alarm output cannot be specified (the alarm entry box is
grayed).
For a description on the alarm setting of computation channels, see section 8.3.
Procedure
Opening the Setting Display
• Setting the alarm output and alarm type
MENU key (switch to setting mode) > #1 soft key (select [Range, Alarm])

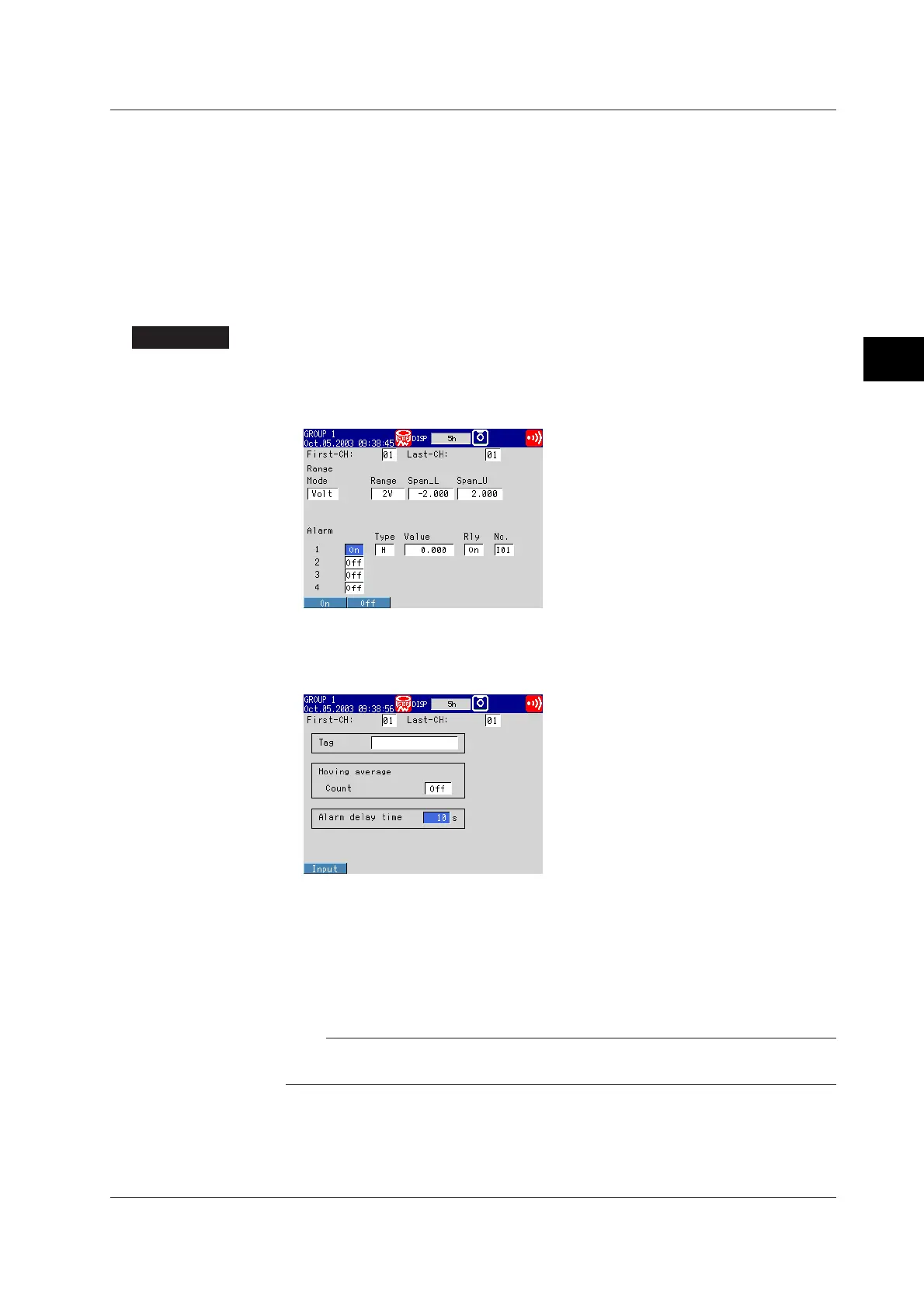

From the operation mode, use the above keys to open the following setting display.
• Setting the alarm delay time (when [Type] is set [T] or [t])
MENU key (switch to setting mode) > #2 soft key (select [Tag, Moving average (or
Filter), Alarm delay time])
From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1.
Use the arrow keys to move the cursor (blue) to the item box you wish to change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
Note
The [Alarm delay time] is set using the pop-up window that appears by pressing the [Input]
soft key.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
4.2 Setting Alarm Related Parameters
To Next Page
