7-1
IM 04L20A01-01E
7
Data Save/Load Operations
Chapter 7 Data Save/Load Operations
7.1 Setting Measured Data Acquisition to the
Internal Memory and Data Save to the External
Storage Medium
This section explains how to set data acquisition of measured data (display data and
event data) to the internal memory, as well as how to set the storage of data to the
external storage medium.
Measured Data Acquisition to the Internal Memory, Data Save to the External Storage
Medium <Basic Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > Hold down the FUNC key for 3 seconds
(switch to basic setting mode) > #3 soft key (select [Memory]), #4 soft key (select
[Memory and trend, Memory timeup]), and #5 soft key (select [Aux, Time zone])

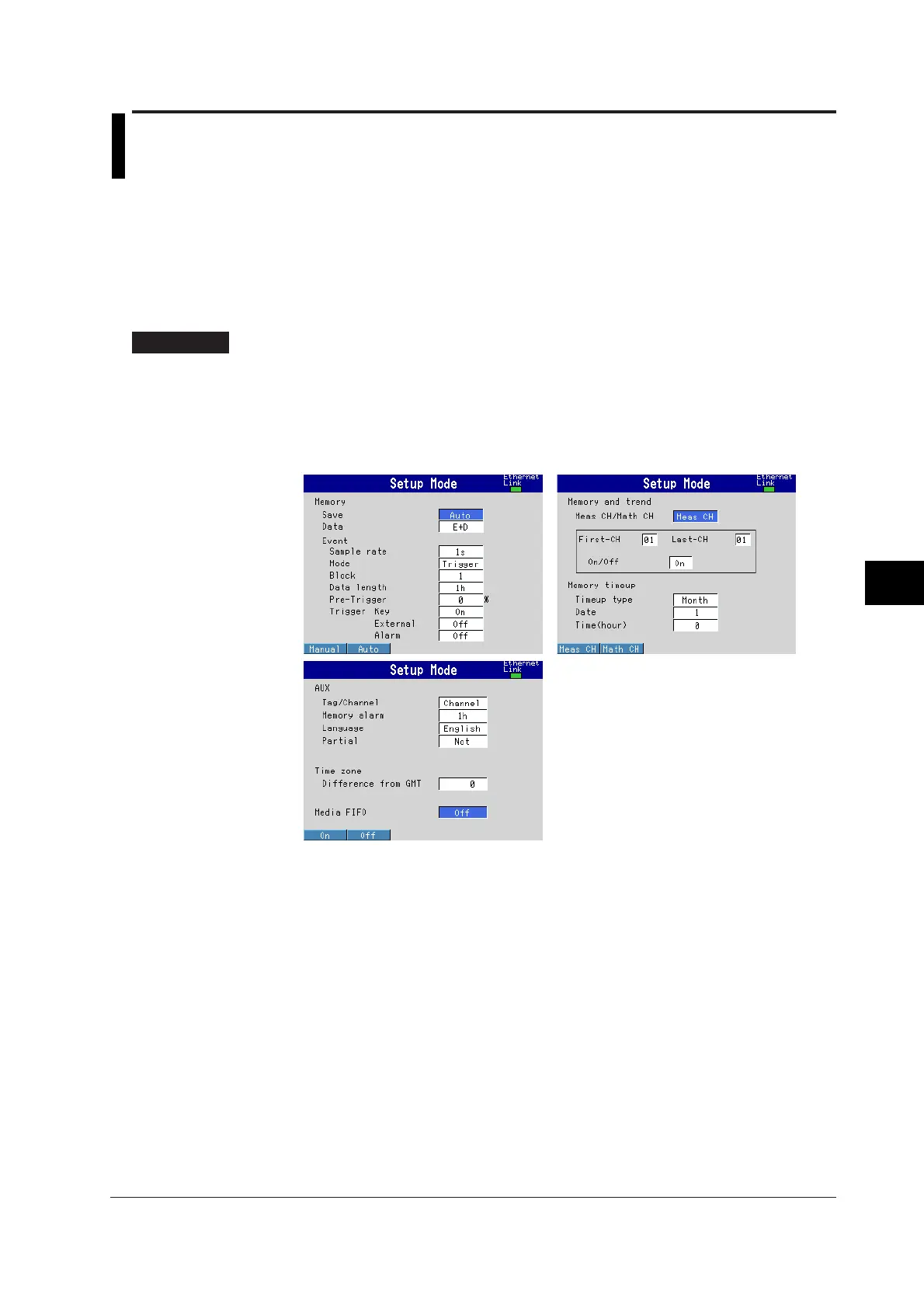

From the operation mode, use the above keys to open the following setting display.
[Media FIFO] is displayed only on models with CF memory card slot.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Saving the Settings in Basic Setting Mode
1. Press the ESC key.
The display returns to basic setting menu.
2. Press the [End] soft key.
A confirmation dialog box appears
3. Select [Yes] and press the DISP/ENTER key.
The operation screen is displayed.
To Next Page
