iv IM 04L20A01-01E

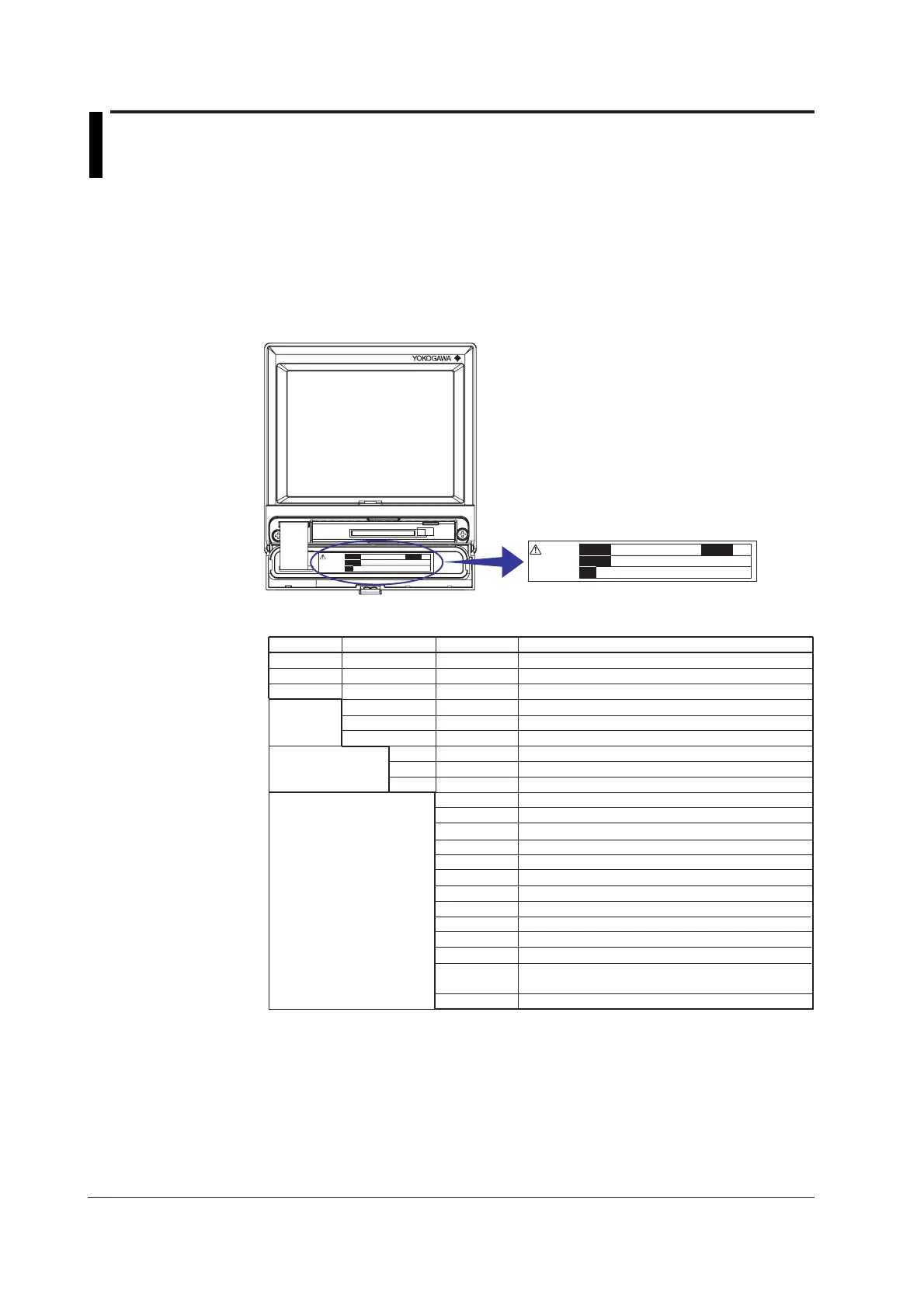

Checking the Contents of the Package
Unpack the box and check the contents before operating the instrument. If some of the
contents are not correct or missing or if there is physical damage, contact the dealer
from which you purchased them.
FX100
When you open the operation key panel on the front panel, a name plate is located on
the back side of the cover. Check that the model name and suffix code given on the
name plate on the rear panel match those on the order.
STYLE
MODEL
SUFFIX
NO.
Do not remove
the cover.
Repair by trained
personal only.
STYLE
MODEL
SUFFIX
NO.
Do not remove
the cover.
Repair by trained
personal only.
MODEL and SUFFIX
/A1
/A2
/A3
/C2
/C3
/C7
/F1
/M1
/N2
/N3
/P1
/PM1
/R1
–0
–1
–4
–1
–2
–3
FX103
FX106
FX112
External
storage
medium
Displayed language
Options
*1 Only one can be specified at once.
*2 Either one can be specified.
*3 If /F1 is specified, /A3 cannot be specified.
*4 If /PM1 is specified, /A3, /M1, or /R1 cannot be specified.
If /PM1 is specified, /A2/F1 cannot be specified.
Model
Suffix Code Optional Code Description
Number of inputs for measurement: 3ch
Number of inputs for measurement: 6 ch
Number of inputs for measurement: 12 ch
No external memory
FDD
Compact flash memory card (with medium)
Japnese
English
Chinese
Alarm output relays 2 points
*1
Alarm output relays 4 points
*1
Alarm output relays 6 points
*1
RS-232 interface (including Modbus protocol)
*2
RS-422-A/485 interface (including Modbus protocol)
*2
Ethernet (10BASE-T) interface
Fail/memory end detection and output
*3
Mathematical function (report fuction included)
Three-terminal isolated RTD (input for measurement)
Pt1000 Ω RTD input
24 VDC/AC power supply
Pulse measurement input 3 points, Remote control
5 points*
4
Remote control 8 points
NO. (Instrument Number)
When contacting the dealer from which you purchased the instrument, please give them
the instrument number.
