3-13
IM 04L20A01-01E
Names of Parts, Display Modes, and Common Operations
3
3.4 Setting the Brightness of the Display and the
Backlight Saver Function
This section explains how to set the brightness of the LCD and the backlight saver
function used to prolong the life of the LCD backlight.
Brightness of the Display / Backlight Saver Function <Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > #5 soft key (select [Display]) > #4 soft key
(select [View, Direction, LCD]

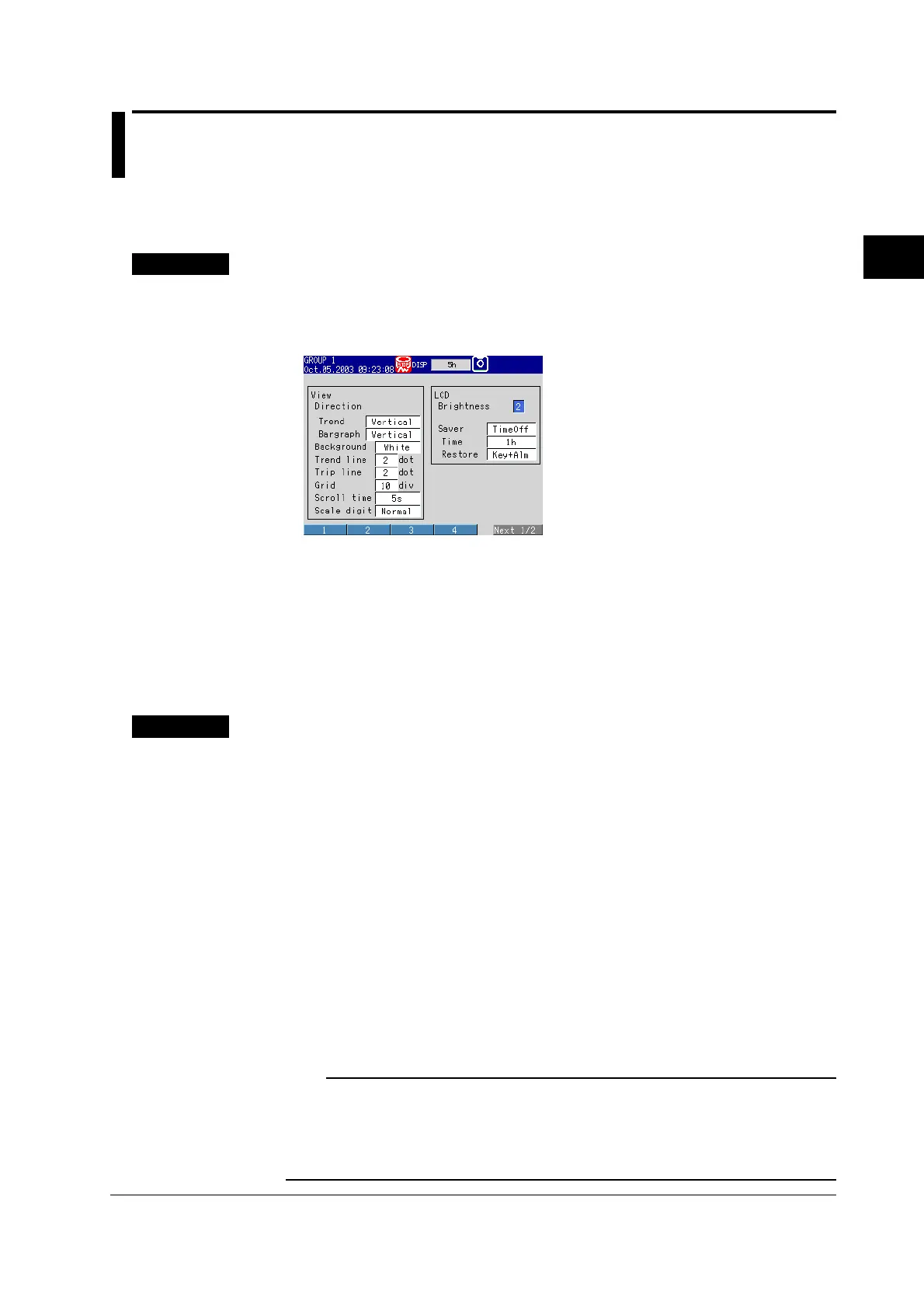

From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to the [Brightness] or [Saver].
The selections are displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to change.
The box for the item you changed turns yellow, and the cursor moves to the next
item. If [Saver] is set to [On], [Time] and [Restore] entry boxes appear.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
4.
Press the DISP/ENTER key to confirm the changes. The boxes for the items you
changed turn from yellow to white, and the cursor returns to the first item box.
Setup Items
Brightness of the Display / Backlight Saver Function
• LCD
• Brightness
Select a value from [1] to [8] (initial setting is 2). The larger the value, the brighter
the display becomes.
• Saver
Select [Dimmer], [TimeOff], or [NotOn] (do not use) for the LCD backlight saver.
Dimmer: LCD backlight is automatically dimmed.
TimeOff: LCD backlight is automatically turned off.
• Time
Select a value from [1min], [2min], [5min], [10min], [30min], [1h] (initial setting is
1h). If the specified time elapses without any key operation, the LCD backlight is
automatically dimmed or turned off.
• Restore
Key: The backlight returns to the original brightness on a key operation.
Key + Alm: The backlight returns to the original brightness on a key operation or an
alarm occurrence.
Note
• When the backlight is dimmed or completely off, the backlight saver function causes it to
return to its original brightness whenever you press any key on the FX100. When doing so,
the key’s primary function is not carried out.
• The degradation of the brightness and the discoloration of the screen (become yellowish)
tend to progress faster as the brightness is set higher. Extended use at an unnecessary high
setting should be avoided. It is also recommended that the backlight saver be used.
To Next Page
