Names of Parts, Display Modes, and Common Operations
3
3.2 Basic Key Operations
Switching Operation Modes
The FX100 has thee operation modes: operation mode, setting mode, and basic setting
mode. Many of the settings in basic setting mode are prerequisites for the settings.
Therefore, enter these settings first.
Mode Types Description Main Operations Possible
Operation mode Mode used to conduct measurement. • Display measured data.
Contains a screen for displaying the • Save or abort the saving of the
measured data, operation history, etc. measured data.
Setting mode Mode used to set parameters* that are • Set the operation of the
changeable during measurement. measurement functions.
• Set items related to the display
format.
Basic setting mode Mode used to set basic items such as • Set basic items of each function.
the input format and the data storage • Set communication parameters.
format. You cannot switch to basic • Initialize the internal memory.
setting mode while data acquisition or
computation is in progress.
* Some of the items such as the input range or computation settings cannot be changed during
data acquisition to the internal memory, or during computation.
Power ON
Basic Setting Mode
Hold down
the FUNC
key for 3 s.
Soft key Soft key ESC key
[End] soft key > DISP/ENTER key
Operation screens
Setting ModeOperation Mode
MENU key
MENU key
or
ESC key
MENU key
or
ESC key

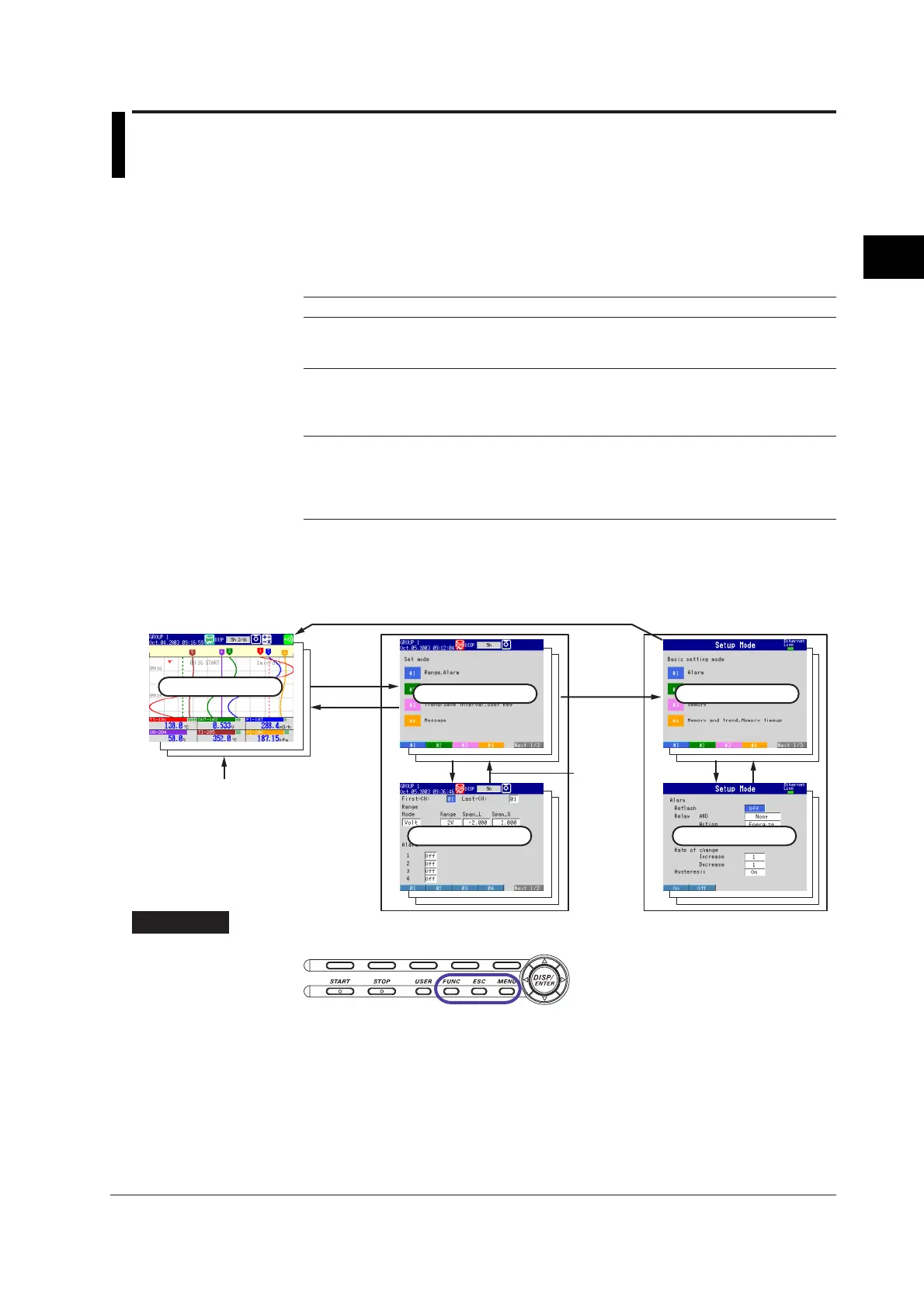

Display Transition Diagram
Menu screens Menu screens
Setting screens Setting screens
Procedure
Operation Keys
Switching the Operation Mode and Setting Menu
The display switches each time the MENU key is pressed. The ESC key can also be
used when switching to the operation mode from the setting menu.
