7-14 IM 04L20A01-01E
7.4 Saving Measured Data at Arbitrary Times
(Manual Sample)
This section explains how to save the measured data of all channels at arbitrary times.
Saving Measured Data at Arbitrary Times (Manual Sample) <Operation Mode>
Procedure
1. In operation mode, press the FUNC key.

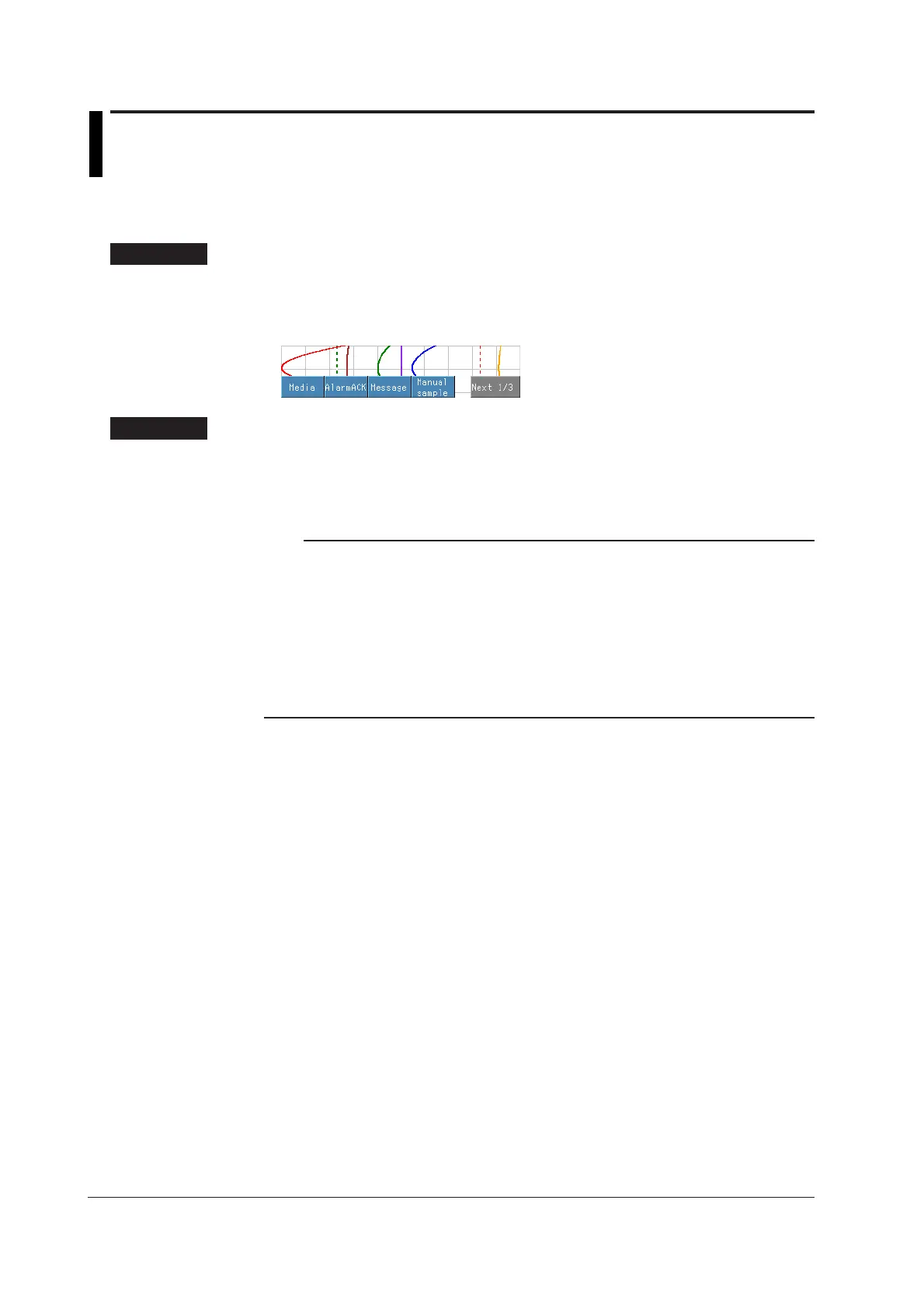

A soft key menu is displayed at the bottom of the display.
2. Press the [Manual sample] soft key.
The measured data of all channels is acquired to the internal memory.
Explanation
Manual Sample Operation
When manual sample is executed, the instantaneous values of all channels
(excluding measurement channels set to skip and computation channels set to Off)
are acquired to the internal memory.
Note
• Up to 50 sets of data can be acquired to the internal memory. When 50 is exceeded, the data
is overwritten from the oldest data.
• The number of manual sample data points in the internal memory can be confirmed using
memory summary (see section 1.4).
• For the data format of the manual sampled data, see appendix 5, “
Data Formats of ASCII
Files
.”
• You can assign the manual sample function to the USER key and save the data simply by
pressing a single key. For the procedure in assigning the function to the USER key, see
section 9.1.
To Next Page
