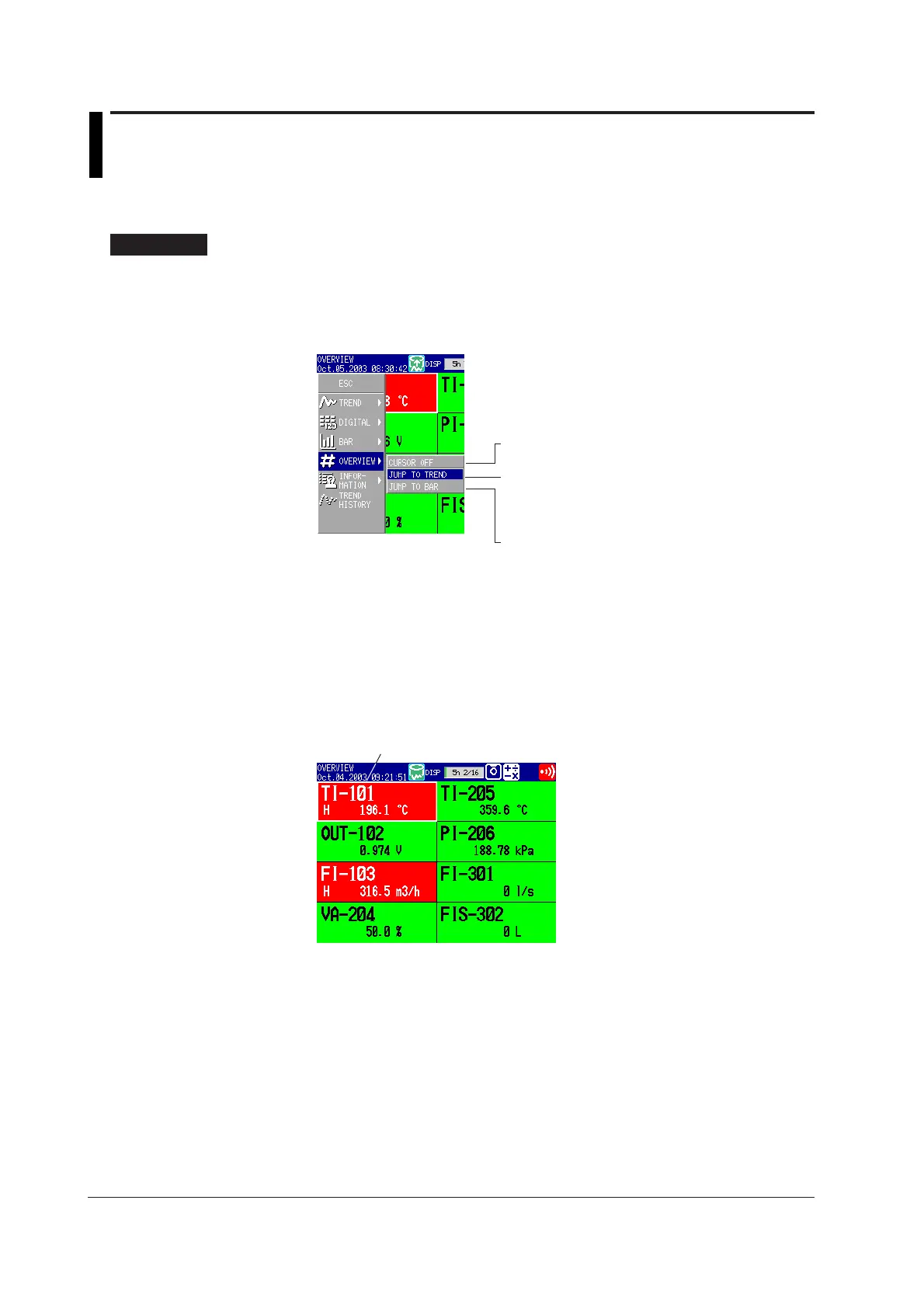

5.2 Displaying All Channels on a Screen (Overview
Screen)
Overview Screen <Operation Mode>
For details, see section 1.4, “
Display Function
.”
Procedure
Changing the Display
1. Press the DISP/ENTER key to display the screen menu.
2. Press the right arrow key to display the sub menu.
3. Select the sub menu item using the up and down arrow keys.
JUMP TO BAR:
Displays the bar graph screen of the
group containing the channel selected
using the cursor.
JUMP TO TREND:
Displays the trend screen of the group
containing the channel selected using
the cursor.
CURSOR OFF: Clears the cursor
CURSOR ON: Displays the cursor
Sub menu of the overview screen
4. Press the DISP/ENTER key to execute the display.
To close the menu without switching the screen, press the ESC key.
Switching to the Trend/Bar Graph Display Containing the Channel Specified Using
the Cursor
The operation described here is for the screen with the cursor displayed.
1. Move the cursor using the arrow keys and select the channel.
Cursor (white frame)
2. Switch to the trend display or bar graph according to the procedure described in
“
Changing the Display
.”
To Next Page
