Operations on the Operation Screens
3. Select the sub menu item using the up and down arrow keys.
AUTO SCROLL ON:
Automatically switches the displayed groups.
(see "
Explanation
.")
AUTO SCROLL OFF:
Cancels the auto switching of the displayed.
GROUP 1 to GROUP 4: Displays group 1 to 4.
The specified group name is displayed
in place of GROUP1 to GROUP4.
Sub menu of the bar graph screen
4. Press the DISP/ENTER key to execute the display.
To close the menu without switching the screen, press the ESC key.
Changing the Displayed Group Using the Arrow Keys
Press the right arrow key while displaying the trend, digital, or bar graph screen to
rotate the displayed group from group 1 to group 4.
Press the left arrow key to rotate the displayed group in reverse order.

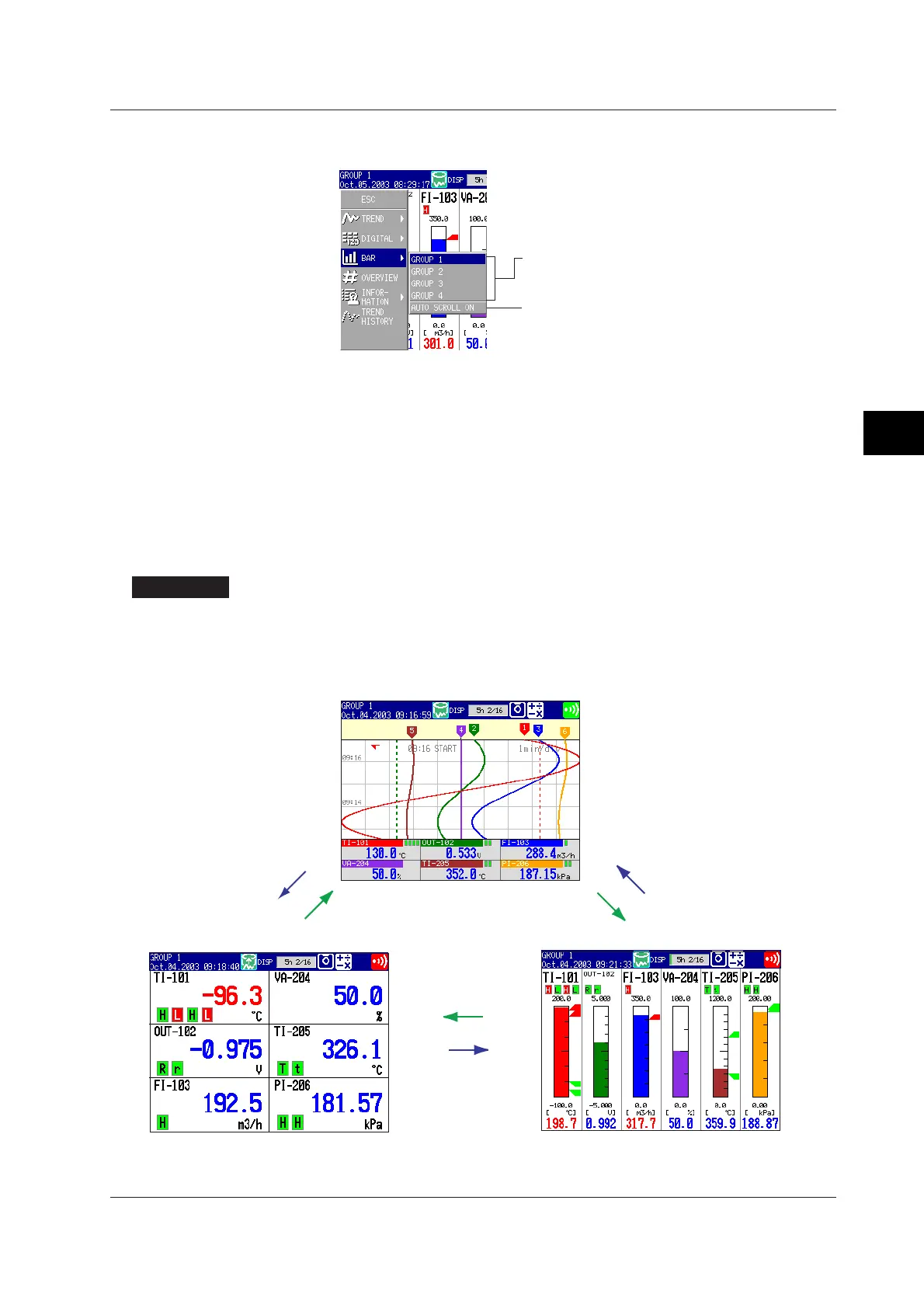

Switching the Trend, Digital, and Bar Graph Screens Using the Arrow Keys <Operation
Mode>
Procedure
Changing the Display
Press the down arrow key while displaying the trend, digital, or bar graph screen to
switch the screen in the order trend, digital, bar graph, trend, and so on.
Press the up arrow key to switch the screen in reverse order.
Digital screen
Bar graph screen
Trend screen
Down arrow key
Up arrow key
