8-9
IM 04L20A01-01E
Computation and Report Function Related Operations (/M1 or /PM1 Option)
8
8.4 Setting the Timer for Statistical Computations
(TLOG Computation) and Data Save (TLOG
Data)
This section explains how to set the timer that can be used for TLOG computation and
how to set data save at intervals specified by the timer.
Timer, Data Save (TLOG Data) <Basic Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > Hold down the FUNC key for 3 seconds
(switch to basic setting mode) > #9 soft key (select [Option]) > #3 soft key (select
Timer(TLOG)])

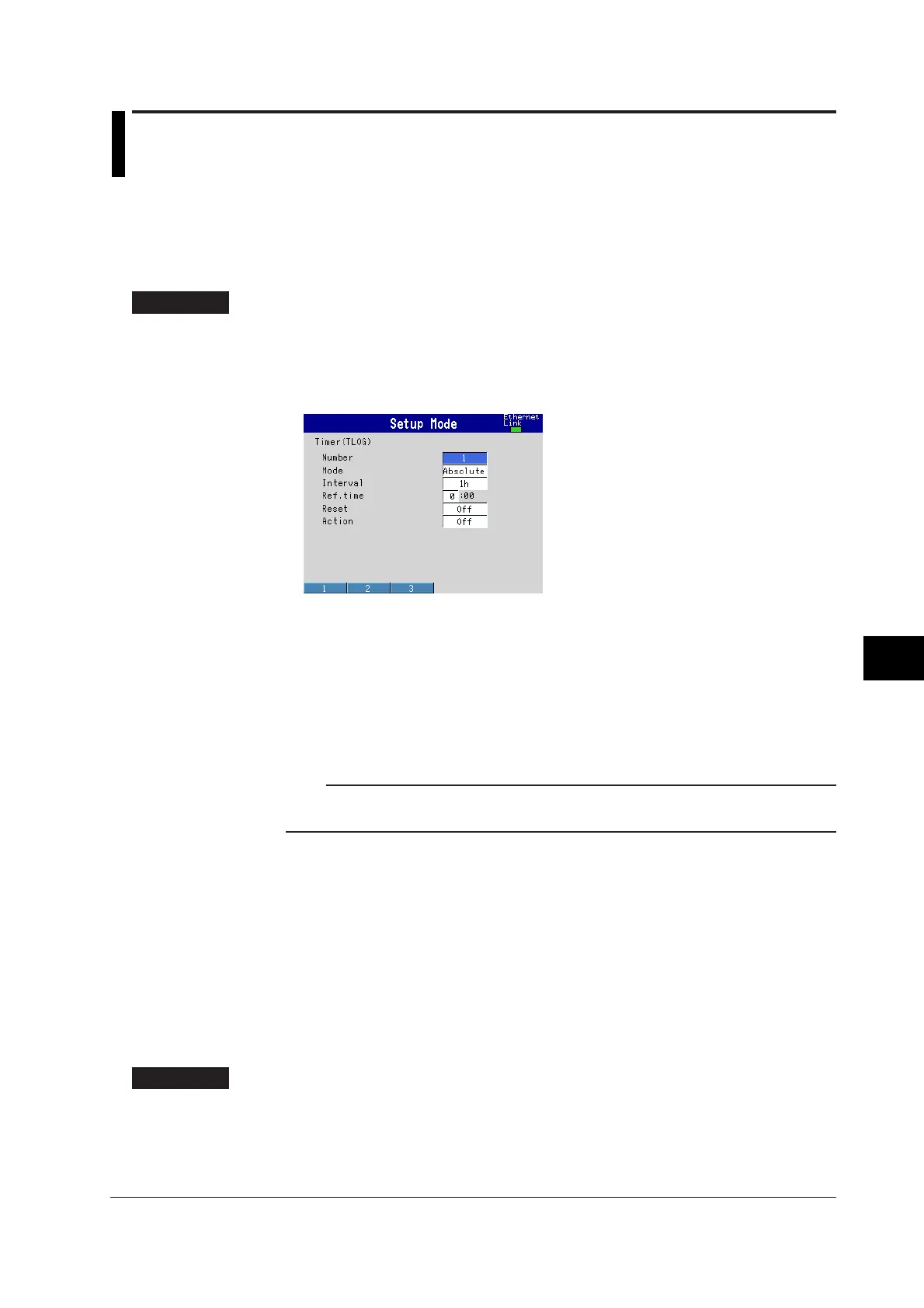

From the operation mode, use the above keys to open the following setting display.
Operations on the Display
1. Use the arrow keys to move the cursor (blue) to the item box you wish to
change.
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Repeat steps 1 and 2 to change the value of all the items you wish to change.
Note
The [Interval] under [Relative] timer and [Ref. Time] under [Absolute] timer are set using the
pop-up window that appears by pressing the [Input] soft key.
4. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Saving the Settings in Basic Setting Mode
1. Press the ESC key.
The display returns to basic setting menu.
2. Press the [End] soft key.
A confirmation dialog box appears
3. Select [Yes] and press the DISP/ENTER key.
The operation screen is displayed.
Setup Items
Setting the Timer
• Number
Select timer number from [1], [2], and [3].
• Mode
Select either [Relative] or [Absolute]. Select [Off] if you do not use the timer.
To Next Page
