6-20 IM 04L20A01-01E
6.11 Switching the Displayed Groups Automatically
at a Specified Time Interval (Scroll Time)
This section explains how to set the automatic switching interval of the displayed groups.
Automatic Switching Interval of the Displayed Groups (Scroll Time) <Setting Mode>
Procedure
Opening the Setting Display
MENU key (switch to setting mode) > #5 soft key (select [Display]) > #4 soft key
(select [View, Direction, LCD])

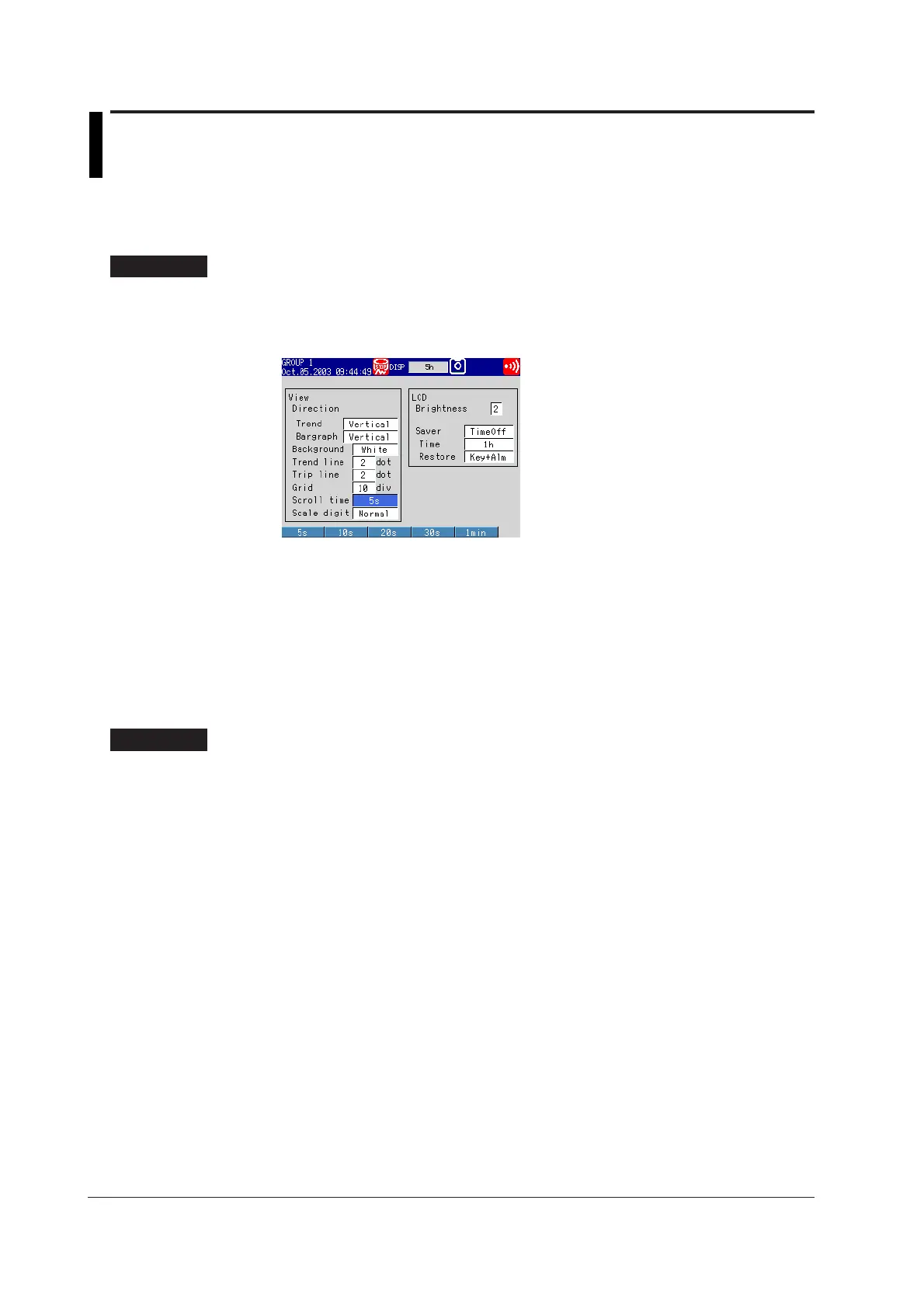

From the operation mode, use the above keys to open the following setting display.
Setup Procedure
1. Use the arrow keys to move the cursor (blue) to [Scroll time].
A soft key menu is displayed at the bottom of the display.
2. Press the soft key corresponding to the value you wish to select.
The box for the item you changed turns yellow, and the cursor moves to the next
item.
3. Press the DISP/ENTER key to confirm the changes.
The boxes for the items you changed turn from yellow to white, and the cursor
returns to the first item box.
Setup Items
Automatic Switching Interval of the Displayed Groups
• Scroll time
Select the interval used when automatically switching the displayed groups on the
trend, digital, and bar graph screens from [5s], [10s], [20s], [30s], and [1min]. The
displayed group rotates among group 1 to group 4.
To Next Page
