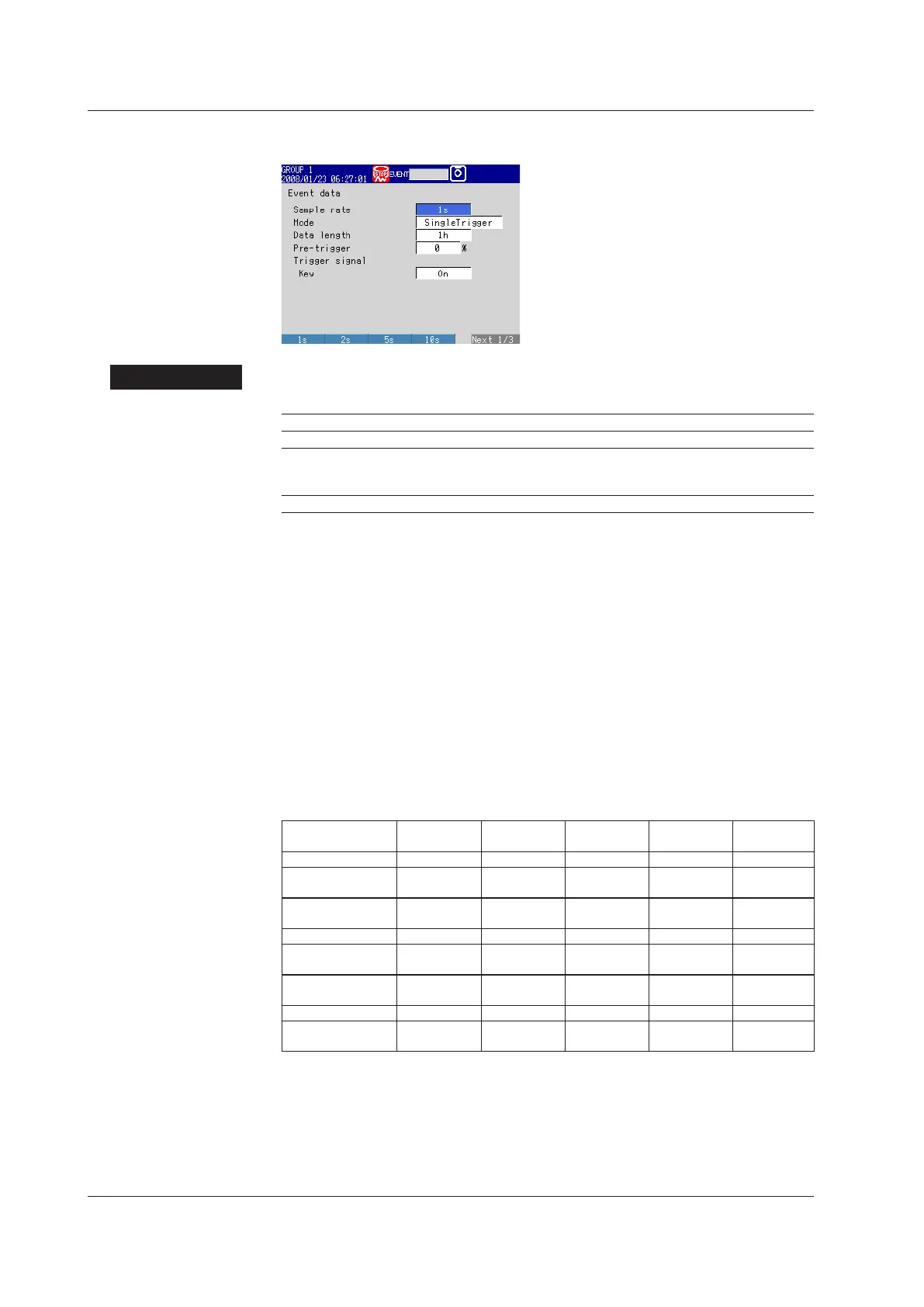

• Event Data Recording Conditions
Press MENU and then select > Menu tab > Data save > Event data.
Settings
• Memory > Data Kind
Setting Description
Display Records display data.
E+D Records display data and event data. You cannot select this setting if the
trend interval switching function (Trend rate switching) is set to on On (see
section 6.3 for details)
Event Records event data.
• Memory sample > On/Off
Select On for the target channels.
• Disp data > Trend/Storage interval
Set the display trend/storage interval. For the trend/storage intervals that can only be
set on high-speed input models, 5 s/div and 10 s/div, 1 division (div) is equal to 40
dots.
Y
ou can only set trend/storage intervals that are longer than the scan interval you set
in Basic Setting Mode.
• Disp data > Save interval (when recording display data)
Set the size of recorded data les. Recorded data is divided into les of the size
specied here. The values that you can set here vary depending on the Trend/Storage
interval setting.
Trend/Storage
interval
1
5s
2
10s
2
15s
3
30s 1min
Sampling interval 125ms 250ms 500ms 1s 2s
Selectable Save
Interval Values
10 min to 12 h 10 min to 1
day
10 min to 3
days
10 min to 7
days
10 min to 14
days
Trend/Storage
i
nterval
1
2min 5min 10min 15min 20min
Sampling interval 4s 10s 20s 30s 40s
Selectable Save
Interval Values
10 min to 14
days
10 min to 31
days
10 min to 31
days
10 min to 31
days
1 h to 31 days
Trend/Storage
i
nterval
1
30min 1h 2h 4h 10h
Sampling interval 1 min 2 min 4 min 8 min 20 min
Selectable Save
Interval Values
1 h to 31 days 1 h to 31 days 2 h to 31 days 4 h to 31 days 8 h to 31 days
1 You can only set a data interval that corresponds to a sampling interval that is slower than
the scan interval.
2 Only available on high-speed input models of the MV.
3 Selectable in fast sampling mode on medium-speed input models of the MV.
4.1 Setting the Recording Conditions of Measured Data
