5-13
IM MV1000-01E
Screen Operations
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
• Writing Added Messages
For instructions on how to use this function, see section 6.4.

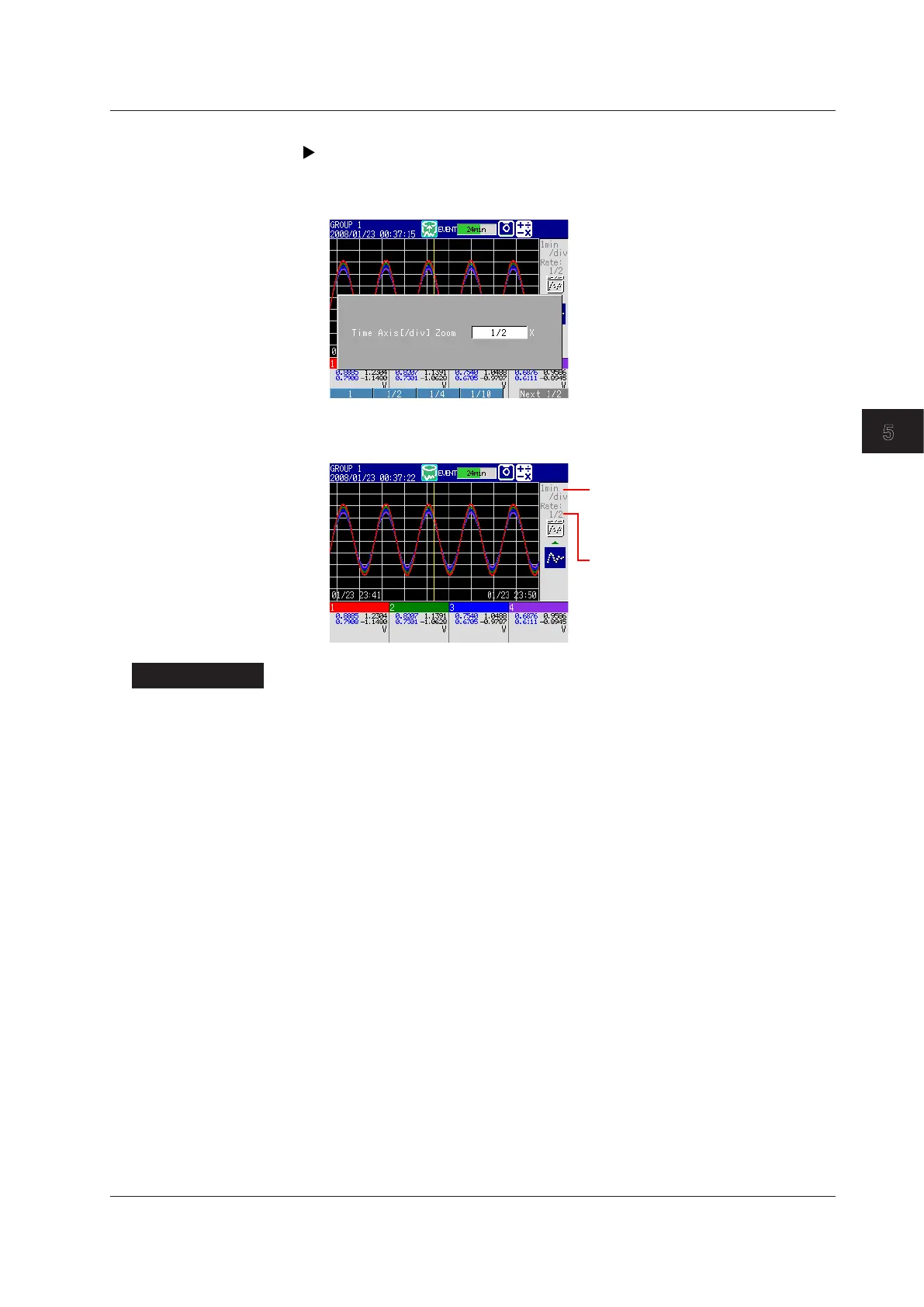

• Changing the Time Axis Zoom
1.
Press the T/DIV key to open the display for setting the time axis zoom.
2.
Select the time axis zoom using the soft keys. The waveform will appear with the
new time axis zoom.
Historical trend display rate
of the zoomed display.
Set time axis zoom
Explanation
• ALL CHANNEL/GROUP CHANNEL Display
Switches between displaying the waveforms of the selected group’s channels and
displaying the waveforms of all channels that have been set to be recorded. The
waveforms of channels that are not registered to the group are displayed, without any
additional information, in the waveform display area.
• SCALE ON/OFF
Select whether or not to display the scale. The scale’s current value mark indicates
the value at the cursor location.
• MESSAGE DISP 1, MESSAGE DISP 2
Select which message display method to use.
• AUTO SPAN
For details, see section 1.4.
• Changing the Time Axis Zoom
Displays a historical trend with a zoomed time axis.
If the display interval with the new time axis is 5 s/div or 10 s/div, 1 division is equal to
40 dots.
5.3 Displaying Previously Measured Data (TREND HISTORY)
To Next Page
