Display Configuration
1
2
3
4
5
6
7
8
9
10
11
12
13
App
Index
MV2000

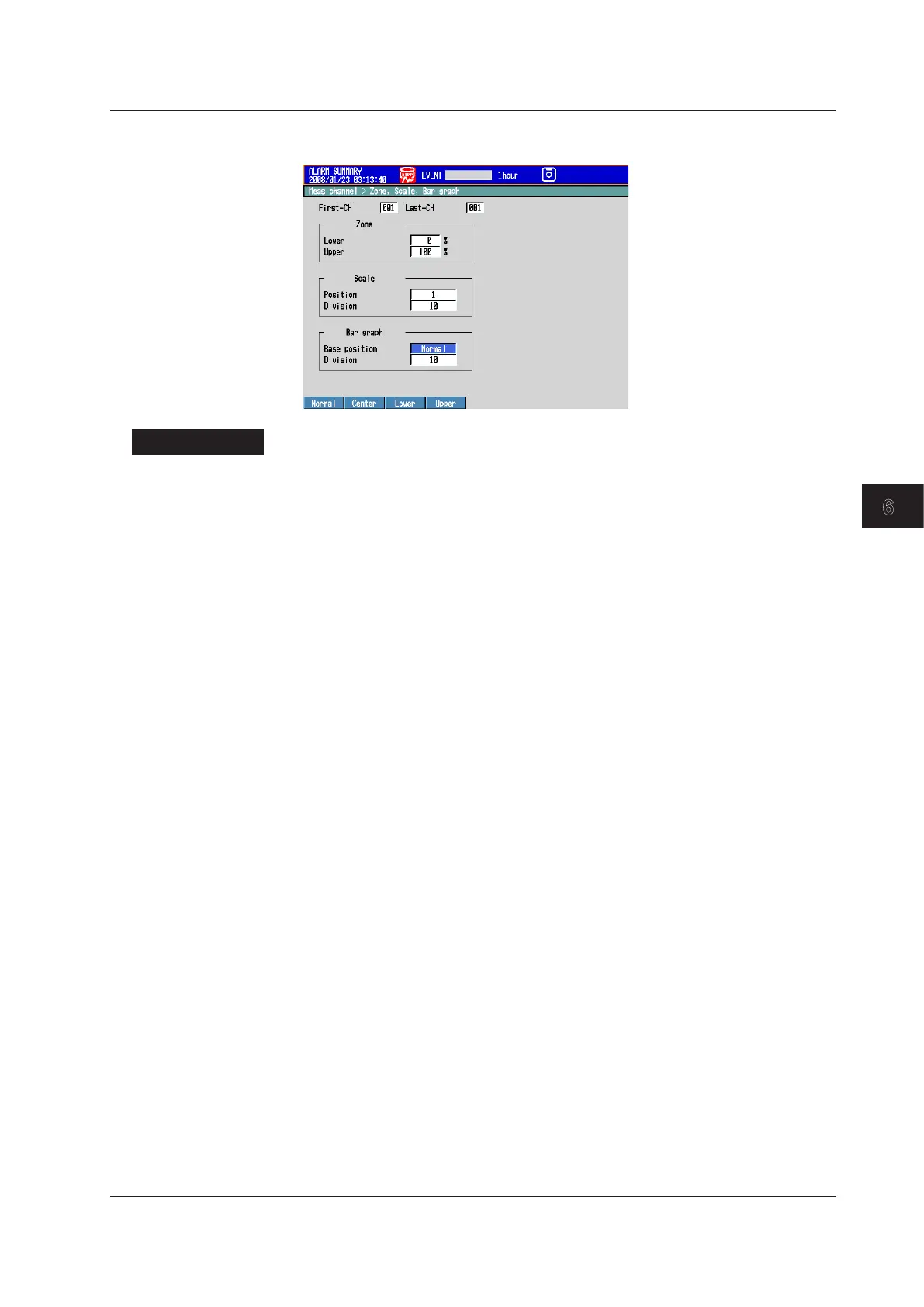

Press MENU and then select Menu tab > Meas channel > Zone, Scale, Bar graph.
Settings
• Bar graph > Direction
Set the bar graph display direction to Horizontal or Vertical.
• First-CH, Last-CH
Select the target channels. All of the other settings selected here will be applied to
these channels.
• Bar graph > Base position
Set the base position of bar graphs to Normal, Center, Lower, or Upper. A description
of how the MV displays bar graphs depending on this setting is given on the following
pages. This setting is applied to the bar graph display and to the bar that indicates the
current value on the scale in the trend display.
6.11 Changing the Bar Graph Display Method
