YOKOGAWA MVAdvanced MV1000 Series User Manual

6-26
IM MV1000-01E

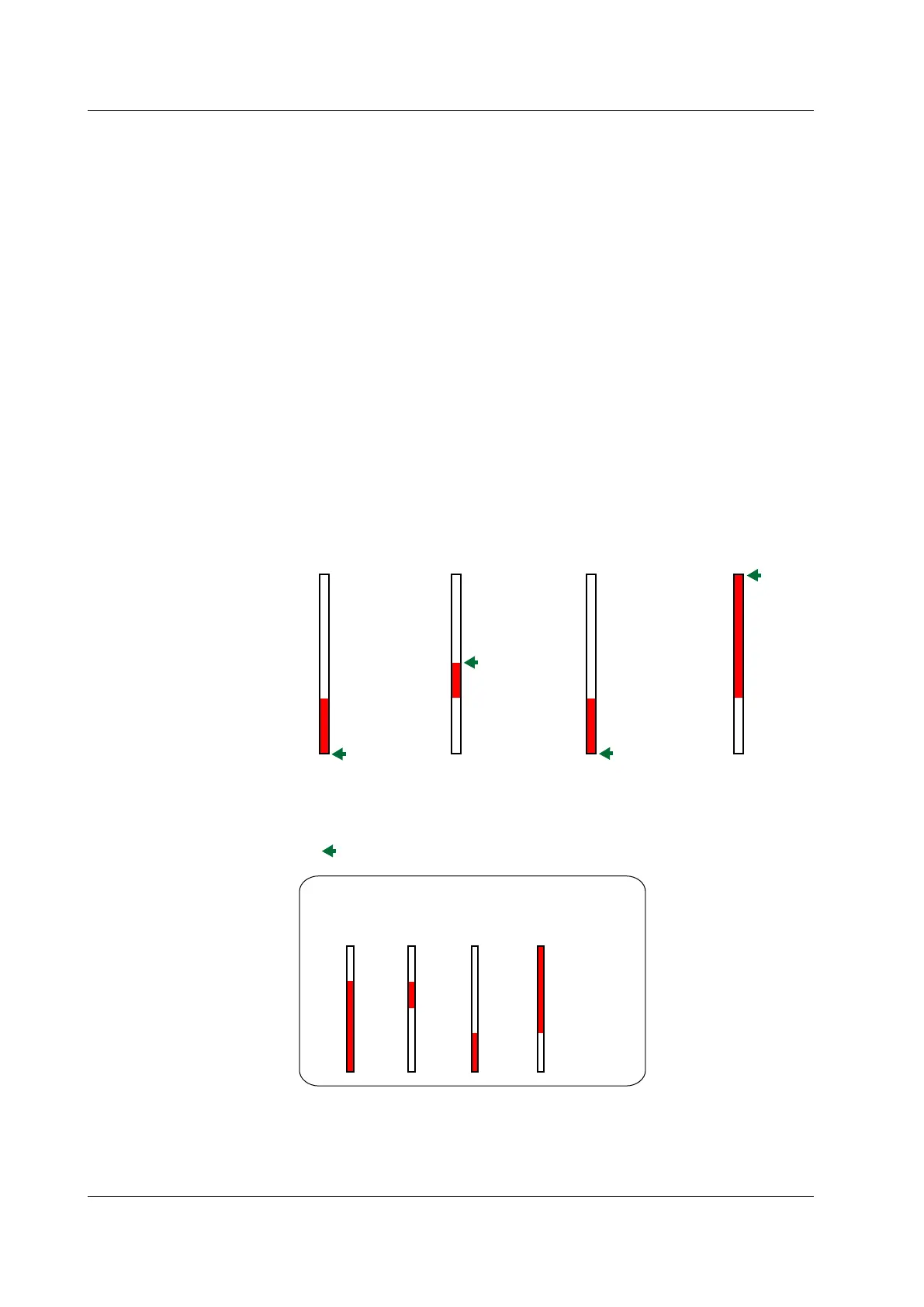

When the Bar Graph Display Direction Is Set to Vertical
• Normal
The value at the bottom of the bar graph: The span lower limit or span upper limit
(or scale lower limit or scale upper limit),
whichever is less
The value at the top of the bar graph: The span lower limit or span upper limit
(or scale lower limit or scale upper limit),
whichever is greater
Starting point of the bar: Bottom edge
• Center
The value at the bottom of the bar graph:
Same as with Normal.
The value at the top of the bar graph: Same as with Normal.
Starting point of the bar: Center
• Lower
The value at the bottom of the bar graph: Span lower limit (or scale lower limit)
The value at the top of the bar graph: Span upper limit (or scale upper limit)
Starting point of the bar: Bottom edge
• Upper
The value at the bottom of the bar graph: Same as with Lower.
The value at the top of the bar graph: Same as with Lower.
Starting point of the bar: Top edge
Normal Center Lower Upper
V
S
V
L
V
S
V
L
V
lower
V
upper
V
lower
V
upper
Vupper: Span upper limit (or scale upper limit)
Vlower: Span lower limit (or scale lower limit)
VL: Vlower or Vupper, whichever is greater
VS: Vlower or Vupper, whichever is less
: Starting point of the bar
Normal Center Lower Upper
0.0
-100.0
0.0
-100.0
–100.0
0.0
–100.0
0.0
Example: When the span lower and upper limits of the input
range are 0.0 and –100.0, respectively
6.11 Changing the Bar Graph Display Method
