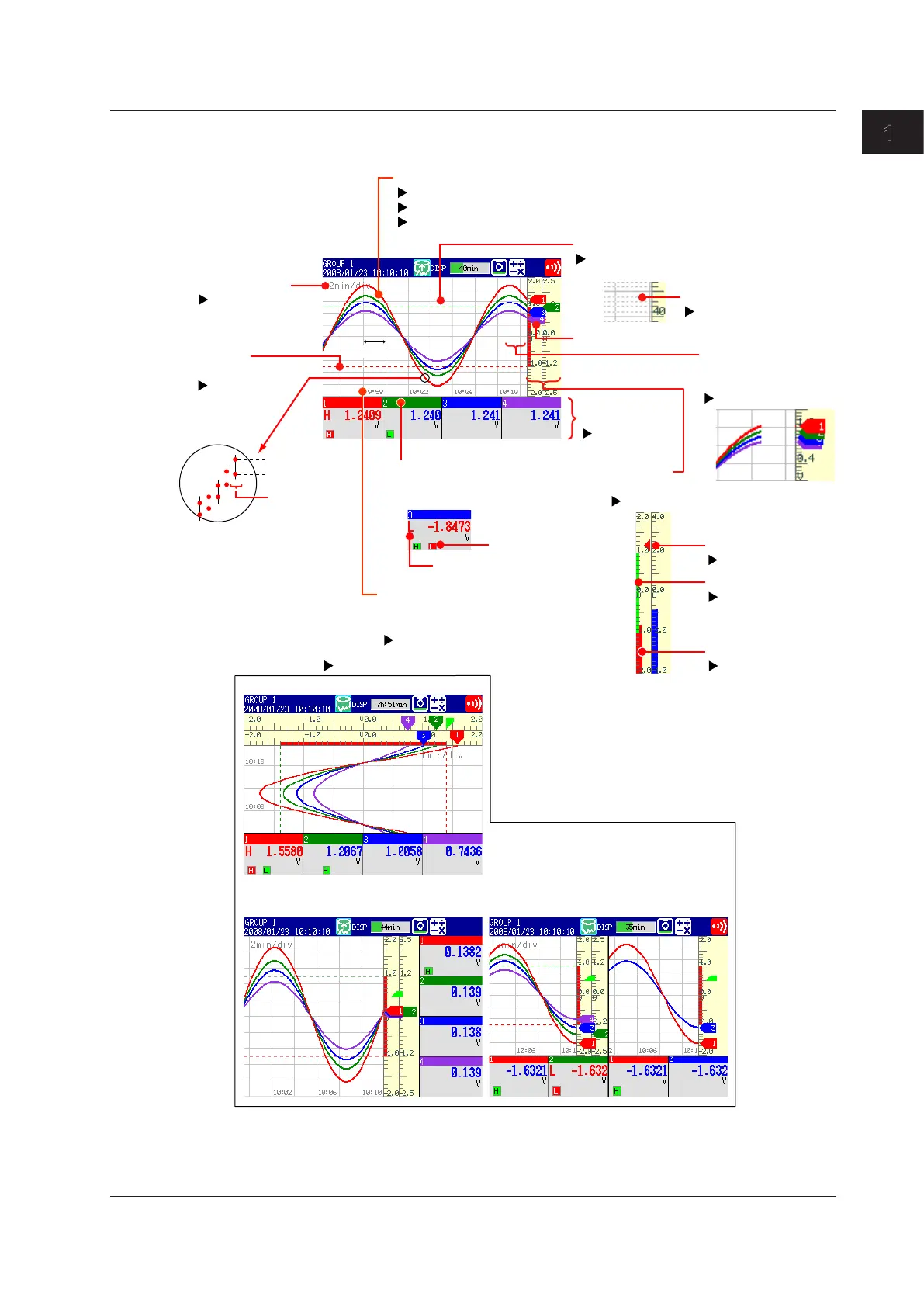

Trend Display (T-Y)
Displays measured data using waveforms. (For operating instructions, see section 5.2.)
Vertical display
Display layout
Horizontal display
Current value mark
Alarm mark
Alarm type
The tag name or channel number,
measured value, unit, and the set
alarm
Displays the maximum and
minimum values sampled
in the time corresponding
to one dot.
Maximum value
Minimum value
1 dot
Waveform (displayed with the set channel color)
To change channel colors, see section 6.5
To change waveform line width, see section 6.10
To display every channel's waveform, see section 5.2
Color scale band
Section 6.8
Current value
Section 6.7
Section 6.10
Trend space function
Inserts a division-wide
space here.
Section 5.2
Time at the grid location
Either displays the time, or
the date and time.
Sections 6.3 and 9.1
Grid
Section 6.10
You can display a fine grid.
Fine grid
Section 5.2
Trend interval
*1
Sections 5.2
and 6.3
Trip line
(up to four lines)
Section 6.1
Measured
value scale
Section 6.7
Alarm value mark
Section 6.8
Numeric display
section
Section 5.2
1 division
Horizontal split display
(displays two groups)
The waveforms of two consecutive groups
are displayed. The numeric display sections
show the data for the first four channels in
their groups.
*1 When the trend interval is changed, only the time axis display changes. The sampling
interval when recording display data (section 1.5) is specified by the Trend/Storage interval
(section 4.1).
