Power Measurement

• Setting the Integration Timer

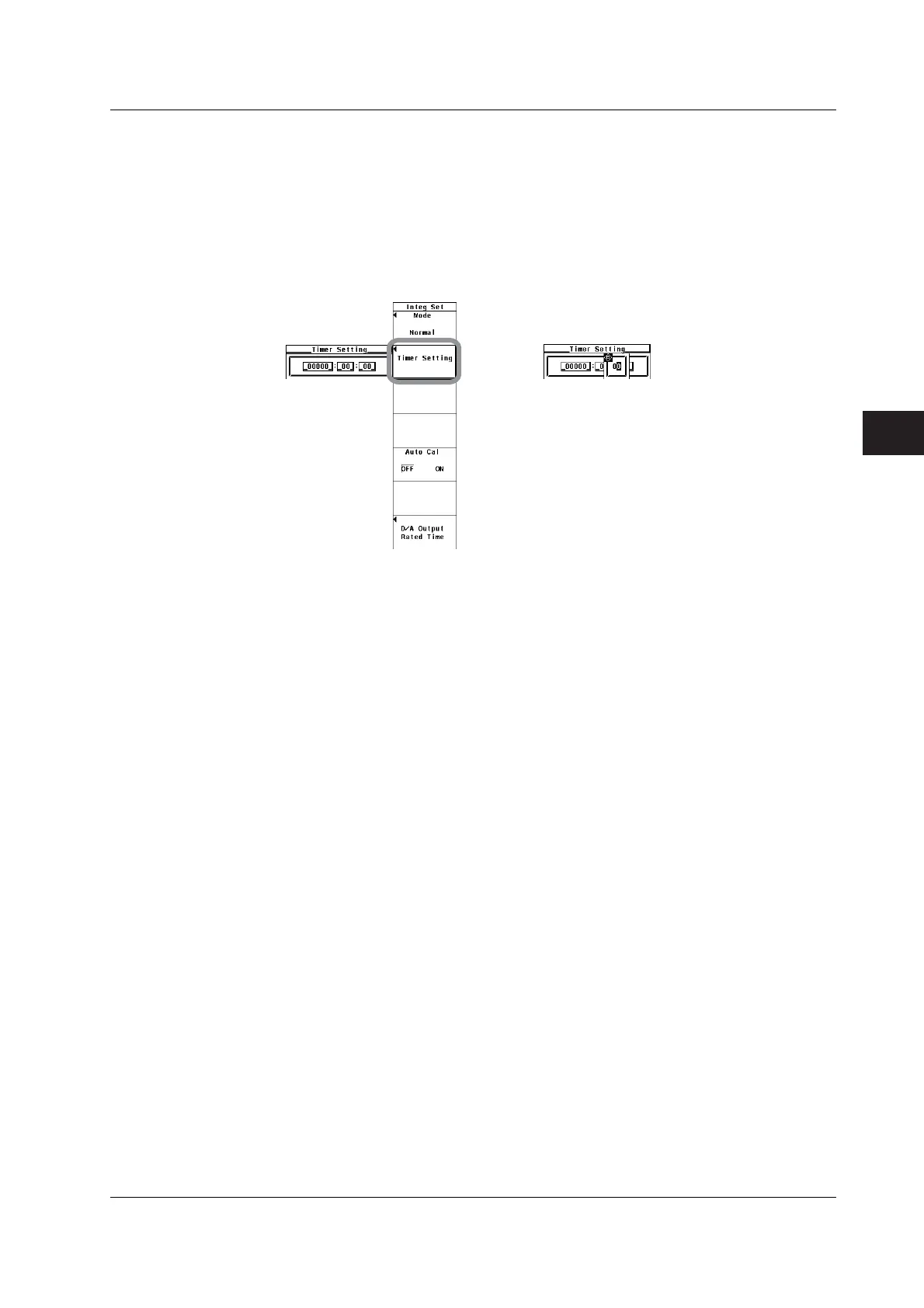

5. Press the Timer Setting soft key to display the Timer Setting dialog box.

6. Press the cursor keys to select the hour, minute, or second box.

7. Press SET to display the entry box.

8. Press the cursor keys to set the hour, minute, or second that you selected in

step 6.

9. Press SET or ESC to close the box.

10. Repeat steps 6 to 9 to set the hour, minute, and second.

• Integrating in Normal Integration Mode or Repetitive Integration Mode

• Starting the Integration

11. Press INTEG to display the Integ menu.

12. Press the START soft key. The START indicator to the right of the INTEG key

illuminates, and the integration is started.

• Holding the Integration

13. Press HOLD. The HOLD key illuminates, and the numeric data display is held.

Integration continues.

• Releasing the Hold Operation

14. Press HOLD while the values are held. The HOLD key turns OFF, and the

numeric data display is updated. In the hold condition, the display can be

updated by carrying out single measurements (by pressing SINGLE).

• Stopping the Integration

15. Press the STOP soft key. The START indicator turns OFF and the STOP

indicator illuminates. The integration time and integration value are held. If you

press STOP before the time specified by the integration timer is reached and

then press START, integration continues up to the time specified by the

integration timer.

If the time specified by the integration timer elapses in the normal integration

mode, the START indicator turns OFF and the STOP indicator illuminates. The

integration time and integration value are held.

If the time specified by the integration timer elapses in the repetitive integration

mode, the integration time and integration value are automatically reset, and the

integration is repeated until STOP is pressed.

• Resetting the Integration

16. Press the RESET soft key. The STOP indicator turns OFF, the integration time

and integration value are reset, and the display shows [-------] (no data).
