6-6 IM 760301-01E
Explanation
For functional details, see section 2.7.
Set the time axis in terms of Time/div (time per grid).
The time axis can be set in 1, 2, or 5 steps in the range up to the point in which the time
corresponding to one screen is equal to the data update interval. For example, changing
the time per division in the order 0.5 ms, 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, and 50 ms
when the data update interval is 500 ms changes the time corresponding to one screen
in the order 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms, and 500 ms.

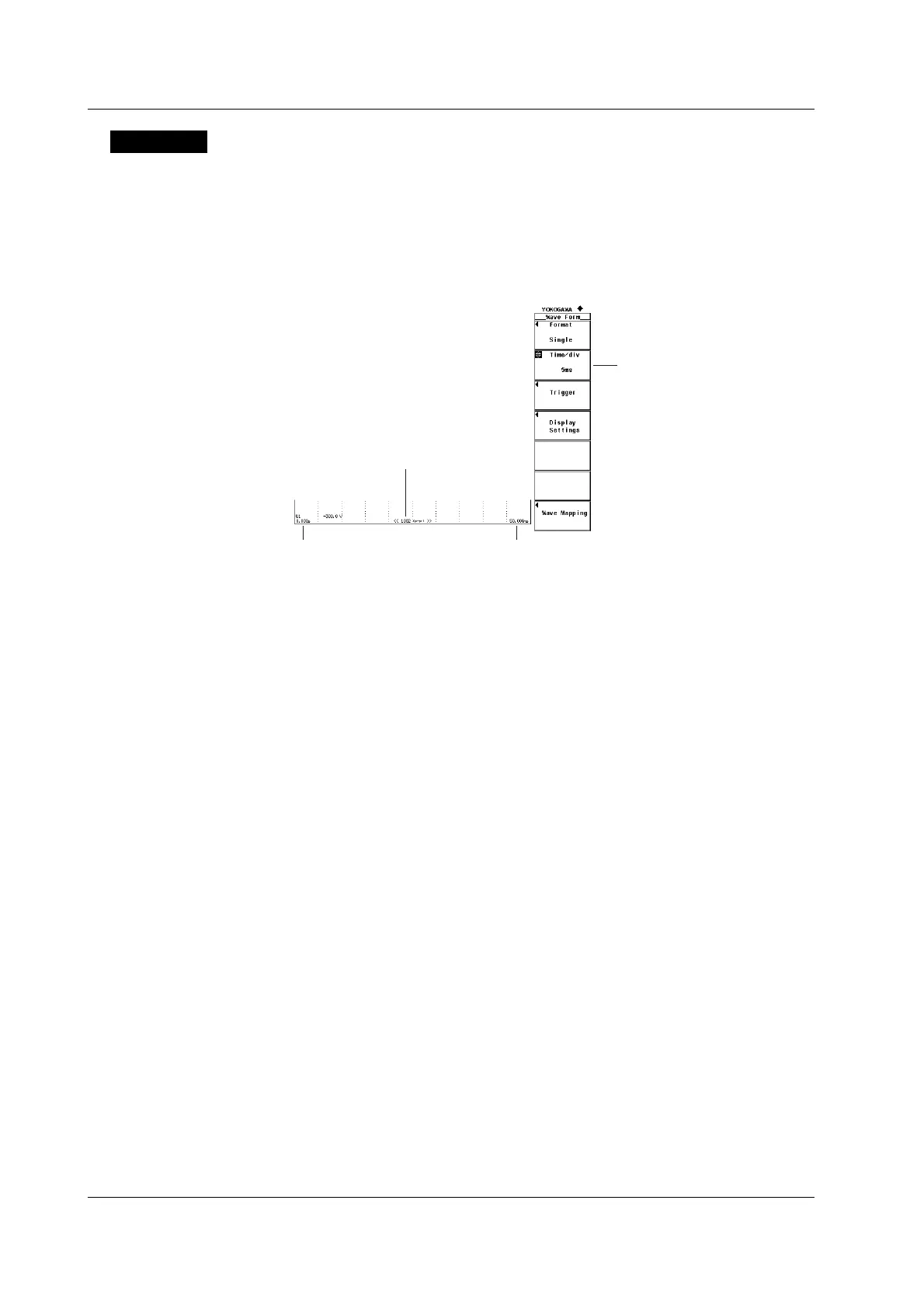

Time at the right end of the screen
(time span of the screen)
Time at the left end of the screen
(fixed to 0 s)
• Number of data points displayed
in the range from the left to
the right end of the screen
• When "P-P" is displayed, waveform
is displayed using P-P compression
(see section 2.7)
Time/div setting
6.3 Setting the Time Axis
