Waveform Display
• Changing the Graticule

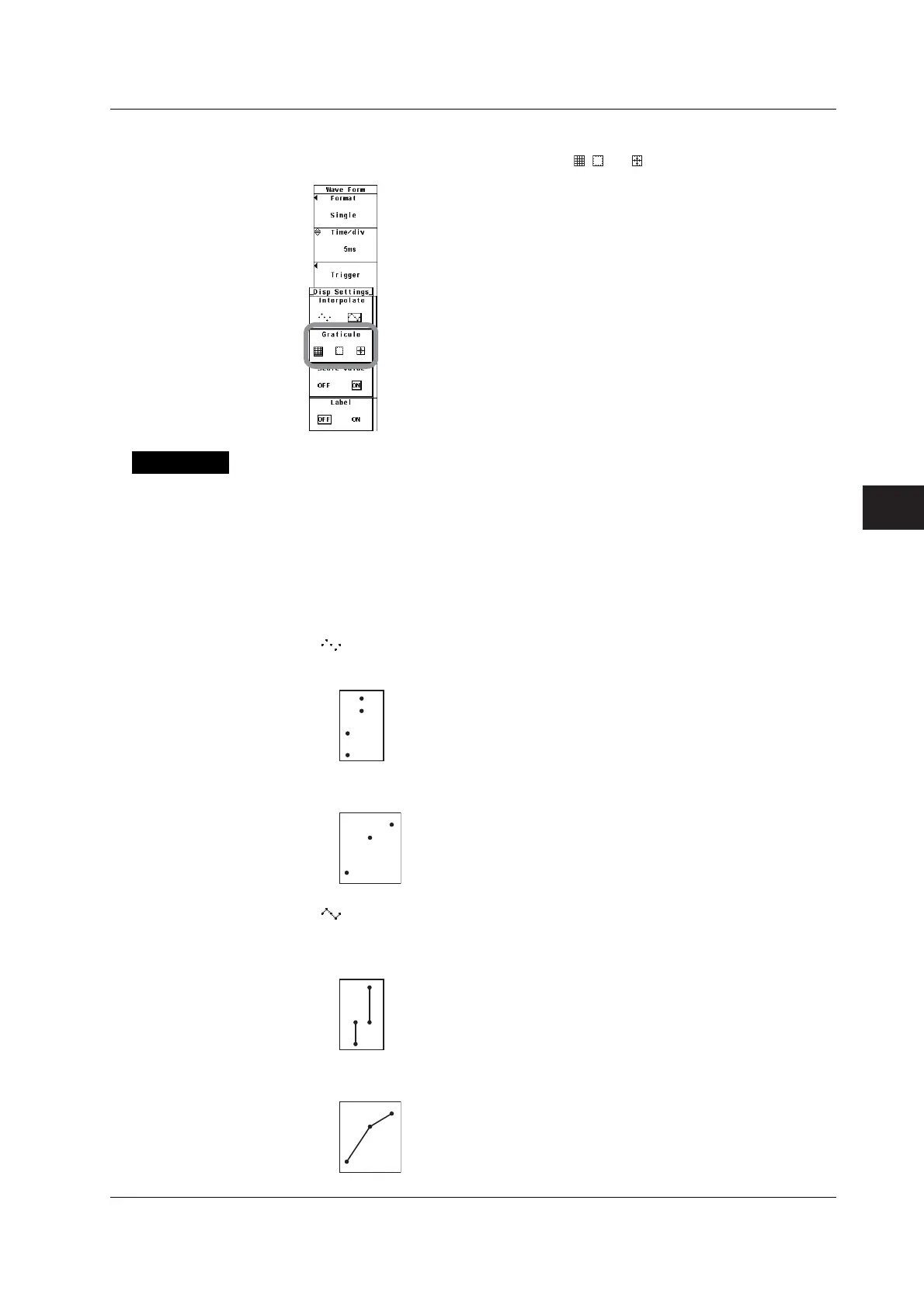

3. Press the Graticule soft key to select
, , or .
Explanation
For functional details, see section 2.7.
• Selecting Whether to Interpolate the Display
When there are less than 500 points of sampled data on the time axis, the area
between the display points (rasters) is no longer continuous. This function interpolates
between the points to display the waveforms. You can select the measurement range
from the following:
•
: No interpolation is performed.
• When the area is not an interpolation area
• When the area is an interpolation area
• : Linearly interpolates between two points.
• When the area is not an interpolation area
Connects the dots vertically.
• When the area is an interpolation area
6.7 Selecting the Display Interpolation and Graticule
