6-24 IM 760301-01E
• Selecting the Target Waveform for Cursor Measurement
• Selecting the Target Waveform for Cursor +

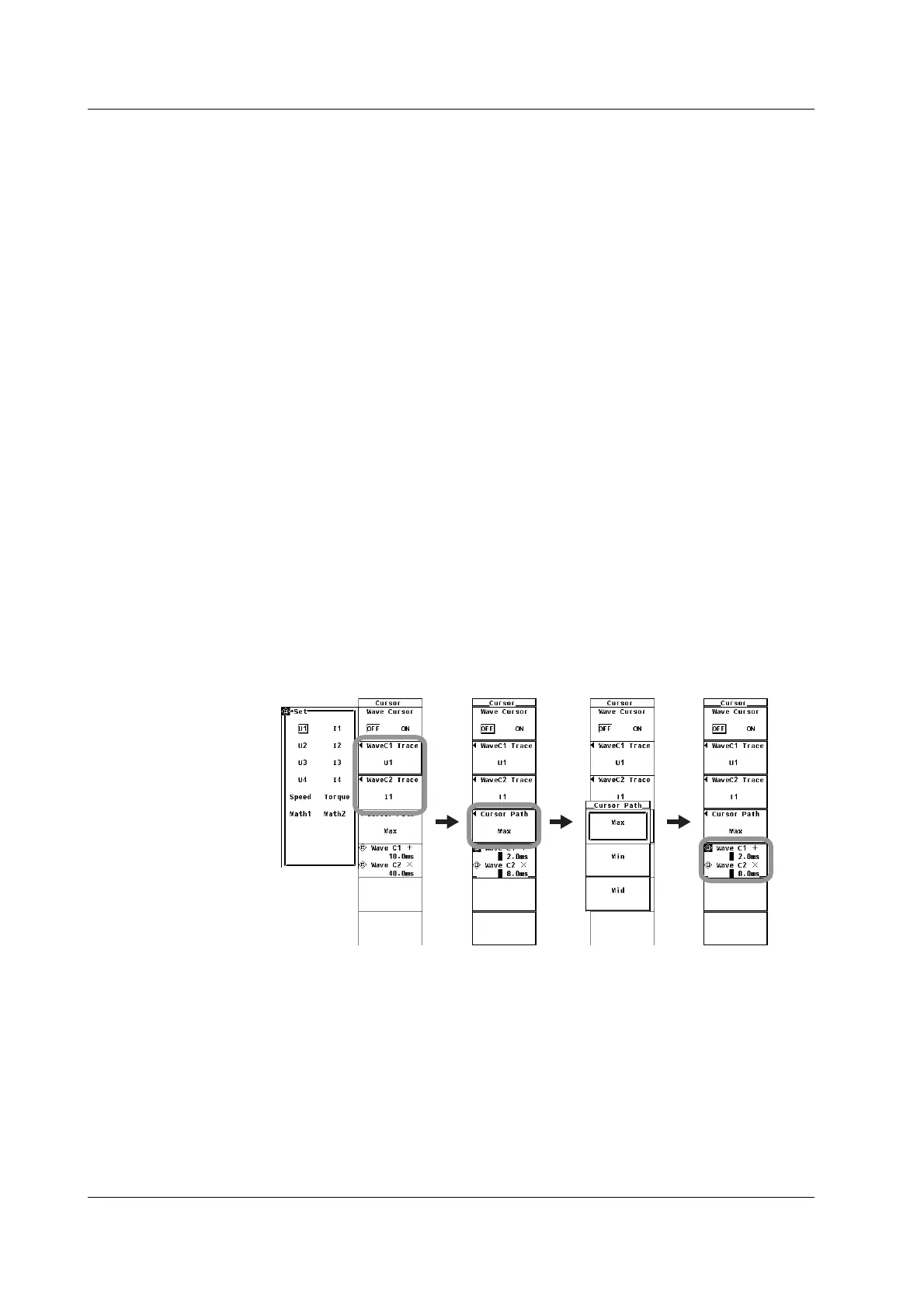

3. Press the Wave C1 Trace soft key. A box used to select the target waveform
appears.
4. Press the cursor keys to select any of the elements/wiring units starting with
U1.
5. Press SET to confirm the new target waveform.
• Selecting the Target Waveform for Cursor x
3. Press the Wave C2 Trace soft key. A box used to select the target waveform
appears.
4. Press the cursor keys to select any of the elements/wiring units starting with
U1.
5. Press SET to confirm the new target waveform.
• Selecting the Movement Path of the Cursor
6. Press the Cursor Path soft key to display the Cursor Path menu.
7. Press any of the soft keys from Max to Mid to select the movement path.
• Moving the Cursor
8. Press the Wave C1 +/Wave C2 x soft key to set the cursor target to Wave C1 +,
Wave C2 x, or both Wave C1 + and Wave C2 x.
• If you select Wave C1 +, the position of cursor + can be moved.
• If you select Wave C2 x, the position of cursor x can be moved.
• If you select both Wave C1 + and Wave C2 x, the two cursors can be moved without
changing the spacing between the two. The value of the digit being specified by Wave
C1 + changes.
9. Press the cursor keys to move the cursor.
6.9 Cursor Measurement
