1-6 IM 760301-01E

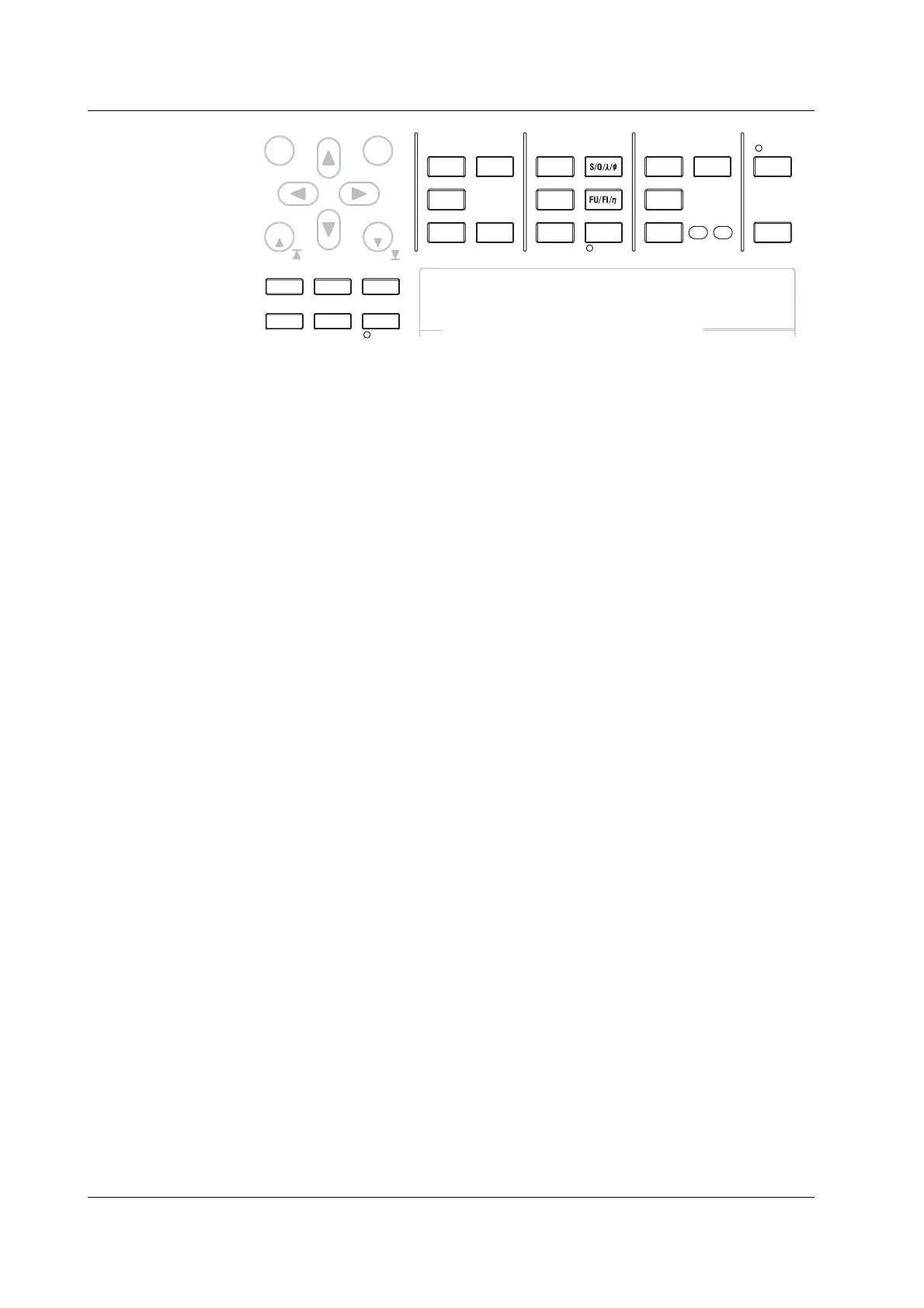

START STOP
REMOTE
CAL
MOTOR
SET
CURSOR NULL
LOWER ITEM LOWER FORM ALLUSER SET
DISPLAY
ITEM & ELEMENT
RESET SET
PAGE PAGE
SCALING
HRM SET
MEASURE
SYNC SOURCE
AVG
LINE FILTER
FREQ
FILTER
NUMERIC
WAVE
OTHERS
ITEM
FORM
U / I / P
WP/q/
TIME
USER
ELEMENT
UPDATE
RATE
HOLD
SINGLE
INTEG
LOCAL
SHIFT
• ITEM Key (See section 5.1, 6.4, 6.5, 7.2, 7.3, and 7.6. For details on bar graphs
and vector displays (option), see the
Expansion Function User’s Manual
IM760301-51E
.)
Displays a menu for selecting the displayed items according to the display type
selected with the NUMERIC, WAVE, or OTHERS key on the previous page.
• SHIFT+ITEM (LOWER ITEM) Key (See section 5.1, 6.4, 6.5, 7.2, 7.3, and 7.6. For
details on bar graphs and vector displays (option), see the
Expansion Function
User’s Manual IM760301-51E
.)
Displays a menu for selecting the displayed item on the bottom half of the display
when two types of displays are displayed simultaneously on the top and bottom
halves of the display using the setup menu shown with the OTHERS key on the
previous page. The menu configuration is the same as when the bottom half of the
display is shown by itself (full screen).
• FORM Key (See section 5.1, 6.2, 6.3, 6.6 to 6.8, 7.4, 7.5, and 7.8. For details on
bar graphs and vector displays (option), see the
Expansion Function User’s
Manual IM760301-51E
.)
Displays a menu for selecting the display format according to the display type
selected with the NUMERIC, WAVE, or OTHERS key on the previous page.
• SHIFT+FORM (LOWER FORM) Key (See section 5.1, 6.2, 6.3, 6.6 to 6.8, 7.4, 7.5,
and 7.8. For details on bar graphs and vector displays (option), see the
Expansion Function User’s Manual IM760301-51E
.)
Displays a menu for selecting the display format for the bottom half of the display
when two types of displays are displayed simultaneously on the top and bottom
halves of the display using the setup menu shown with the OTHERS key on the
previous page. The menu configuration is the same as when the bottom half of the
display is shown by itself (full screen).
• U/I/P Key, S/Q/λ/
φφ
φφ
φ Key, WP/q/TIME Key, FU/FI/η Key (See section 5.1)
Each time the U/I/P key is pressed, the measurement function of the displayed item at
the cursor switches in the following order: U -> I -> P -> the measurement function
before the U/I/P key was pressed -> U, and so on. The numeric data of the selected
measurement function is displayed.
• The above operation is carried out when numeric data is displayed and the menu is
not displayed or the ITEM key has been pressed.
• Only the measurement function switches.
• The measurement function of U and I varies depending on the voltage mode or
current mode. For example, if the voltage mode is set to RMS, Urms and its
numeric data are displayed.
• When the S/Q/λ/φkey, WP/q/TIME key, or FU/FI/η key is pressed, the
measurement function also switches in order similar to the U/I/P key.
1.2 Setup Menu Display Key and Execution Key
To Next Page
