9-22 IM 760301-01E

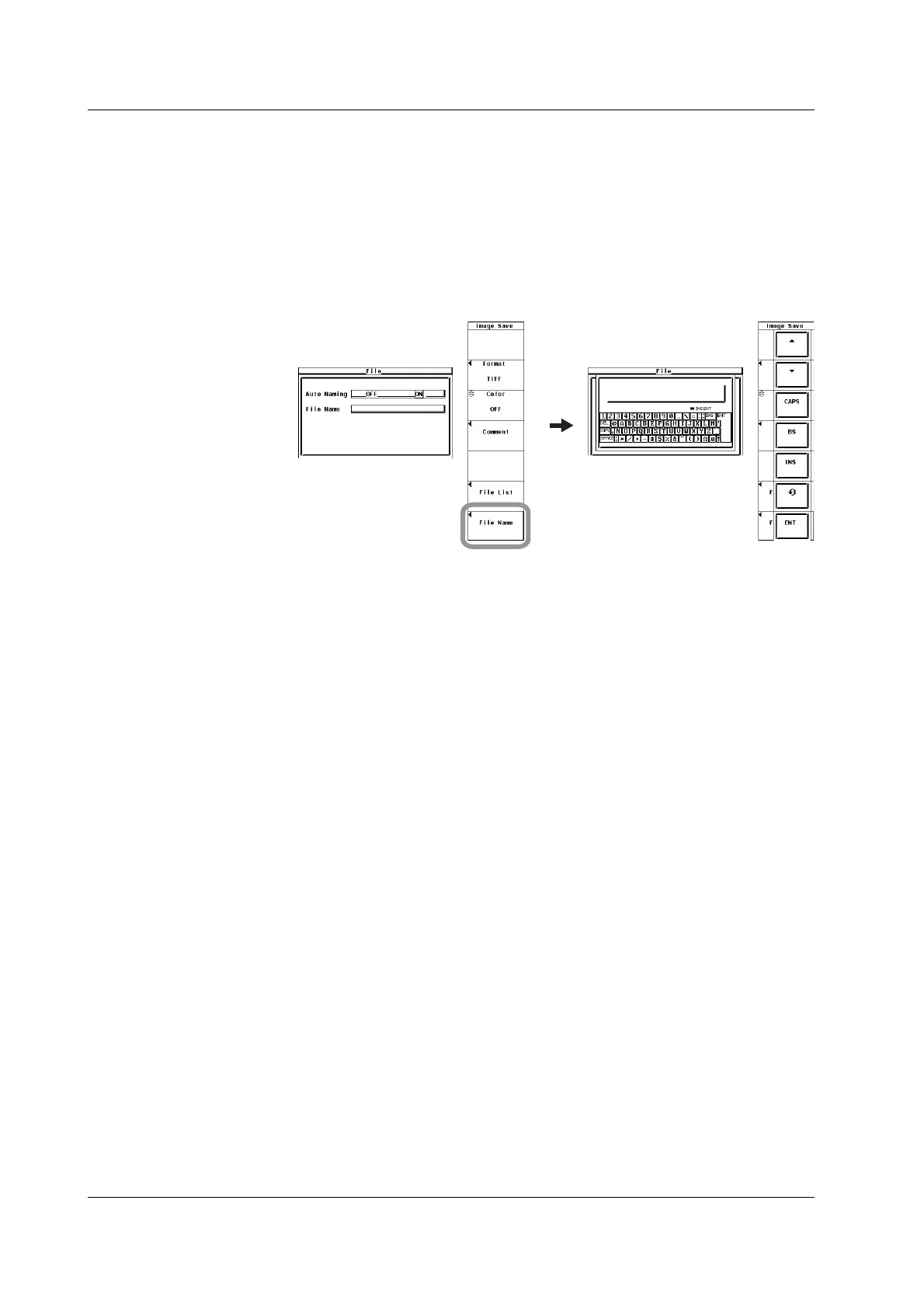

• Setting the file name
11. Press the File Name soft key to display the File Name dialog box.
12. Press the cursor keys to select Auto Naming.
13. Press SET to select ON or OFF.
14. Press the cursor keys to select File Name.
15. Press SET. A keyboard appears.
16. Use the keyboard to set the file name.
For keyboard operations, see section 3.14, “Entering Values and Strings.”
17. Press ESC to close the File Name dialog box.
• Executing or Aborting the Save Operation
Display the desired screen and carry out the following procedure.
Press IMAGE SAVE. The screen image data is saved to the directory indicated
by Path=...... If you press IMAGE SAVE again while the save operation is in
progress, the operation is aborted. An icon appears at the upper left corner of
the screen while the save operation is in progress.
9.4 Saving the Screen Image Data
