Faunctional Description

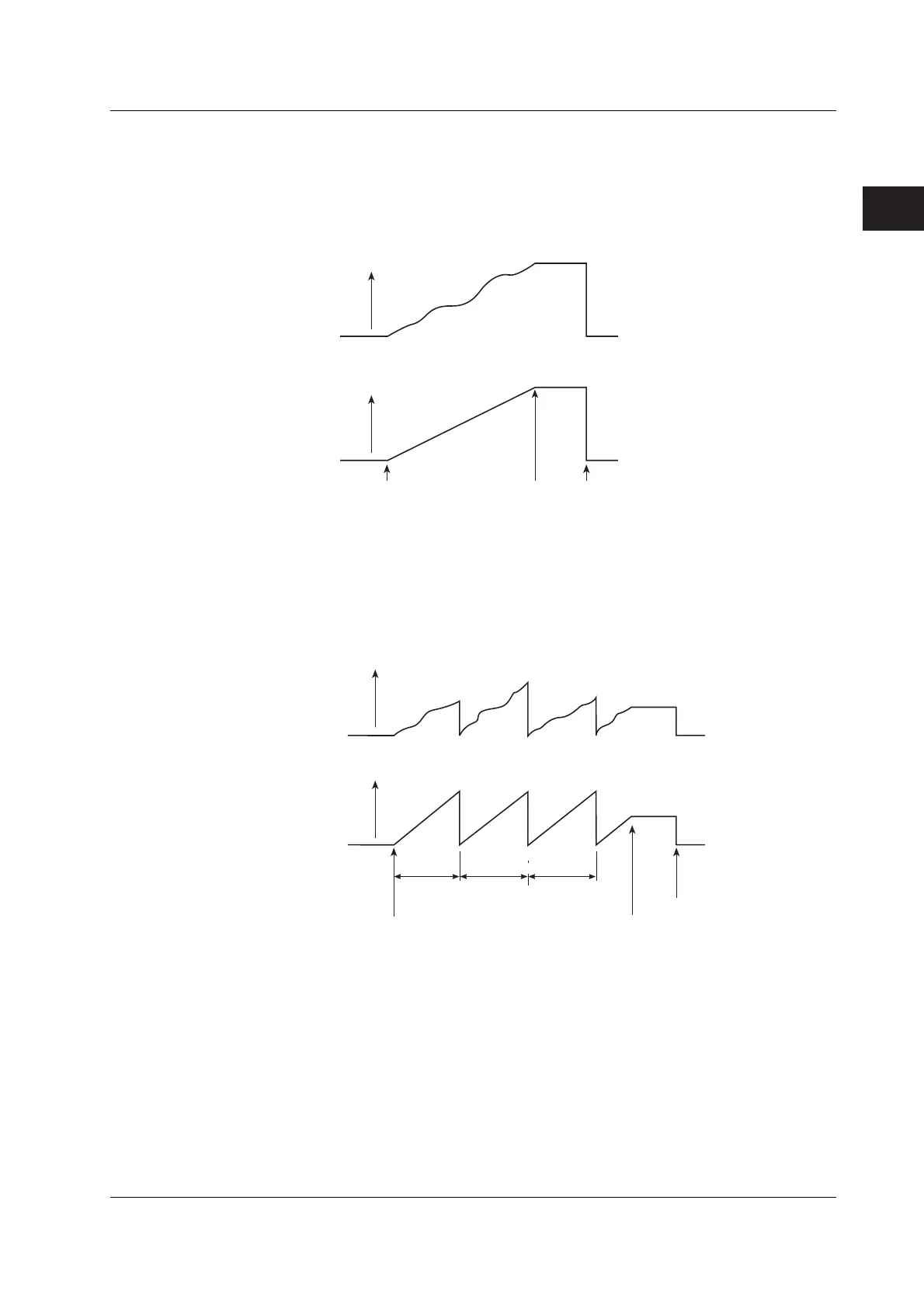

• Real-Time Normal Integration Mode
The date and time of start and stop of the integration operation are set. The
integration is stopped at the specified time or when the integration value reaches the
maximum or minimum integration display value. The integration time and value are
held at that point.
Integration
time
Integration
value
Hold
Hold
Start date/time Stop date/time Reset
• Real-Time Repetitive Integration Mode (Continuous Integration)
The start and stop of the integration operation are set with the date and time. The
integration is repeated at the specified timer setting during that time. When the time
specified by the timer elapses, the operation is automatically reset and restarted. The
integration is stopped at the specified time or when the integration value reaches the
maximum or minimum integration display value. The integration time and value are
held at that point.
Integration
time
Integration
value
Hold
Hold
Timer
value
Timer
value
Timer
value
Start date/time
Stop date/time
Reset
2.6 Integration

YOKOGAWA wt3000 Specifications

General

Frequency Range	DC, 0.1 Hz to 1 MHz
Number of Input Elements	Up to 4 elements
Harmonic Measurement	Up to 500th order
Interfaces	USB, Ethernet, RS-232
Sampling Rate	2 MS/s
Voltage Range	1.5 V to 1000 V
Display	8.4-inch LCD
