2-28 IM 760301-01E

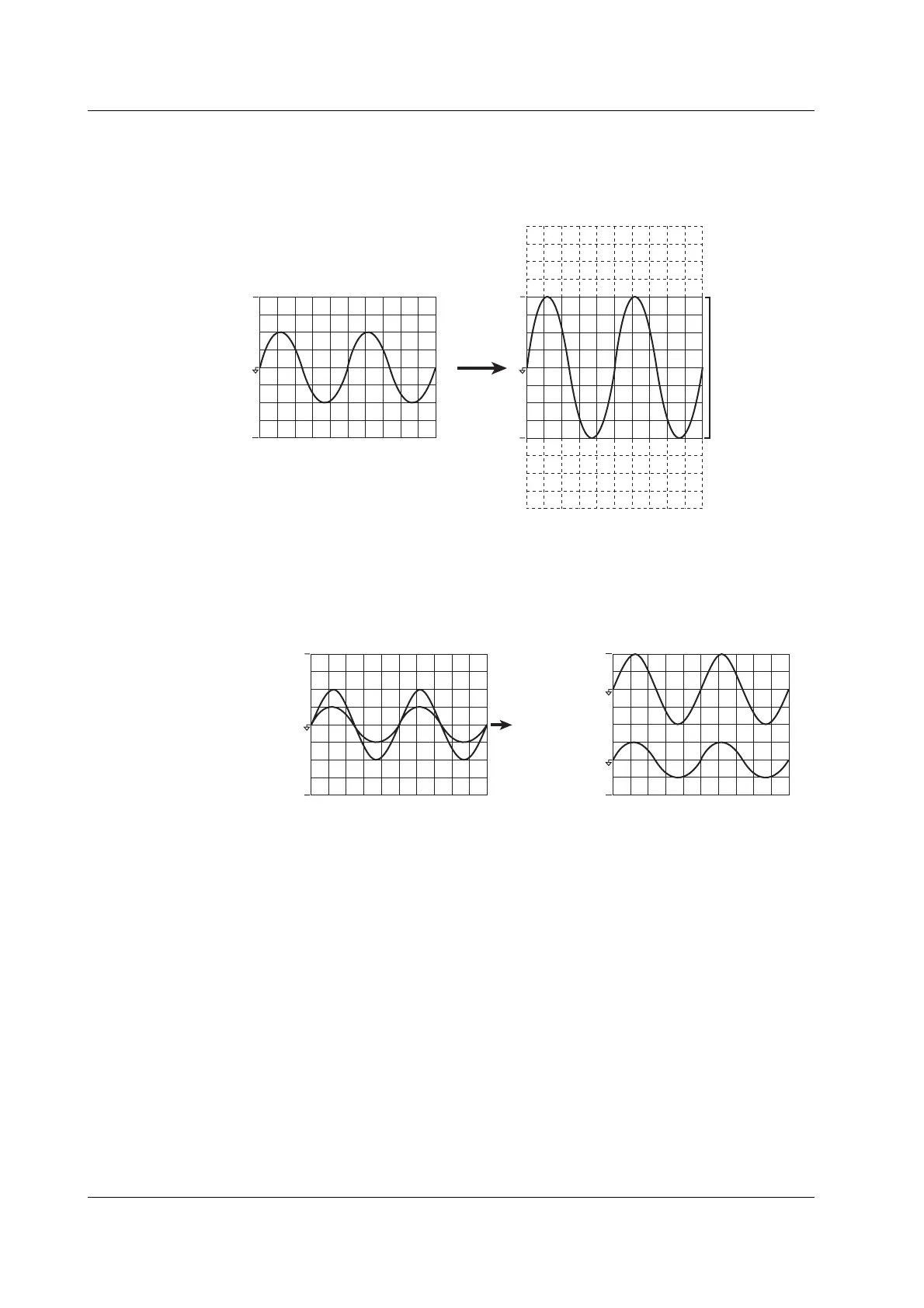

Zooming Vertically on the Waveform «For procedures, see section 6.5.»
Each displayed waveform can be expanded or reduced vertically by the zoom factor in
the range of 0.1 to 100. The waveform is zoomed around the zero input line.
150 Vpk
300 Vpk
–150 Vpk
–300 Vpk
300 Vpk
–300 Vpk
Input zero line
When the zoom factor is doubled
Range displayed
on the screen
Vertical Position of the Waveform «For procedures, see section 6.5.»
The displayed position of the waveform can be moved vertically to the desired position
such as when you wish to view the mutual relationship between the voltage and current
waveforms or when the section of the waveform you wish to view goes out of the display
frame.
100%
–
100%
Move the position
by 50%
Move the position
by –50%
2.7 Waveform Display
