4-7
IM WT5000-02EN
Procedure Using the Setup Menu
1.
Tap the Setup icon , or press MENU under SETUP.
2.
Tap Computation/Output tab. A computation and output settings overview screen appears.
Pressing ESC closes the overview screen.
Switching the Displayed Items (Item)
You can switch the measured value (measurement function) shown in the screen.
3.
Tap Display.
A display format setup screen (Numeric/Graph) appears. For details, see section 3.1.
4.

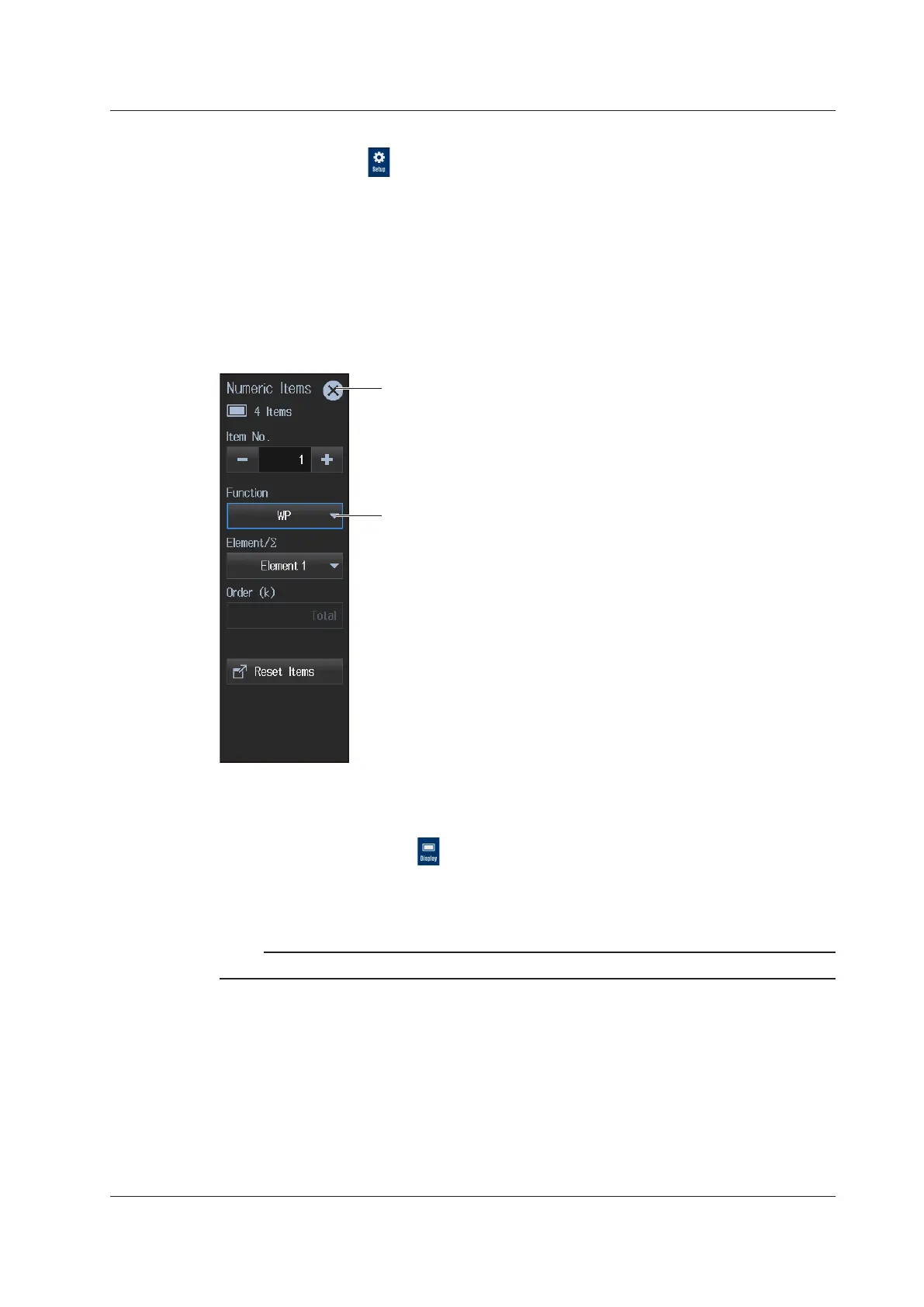

Tap Items. The following screen appears.
Closes the menu
Set the displayed item.
You can set the following items for displaying integration.
Integrated value (Integration group):
ITime (integration time), WP (sum of positive and negative watt hours),
WP+(sum of positive P values), WP– (sum of negative P values),
q (sum of positive and negative ampere hours), q+ (sum of positive I values),
q– (sum of negative I values), WS (volt-ampere hour), WQ (var hours)
Procedure Using the Menu Icons
You can also use the menu icons shown on the right side of the screen to switch the displayed items.
1.
Tap the Display menu icon . A Display menu appears in the sub menu area on the right side
of the screen.
By tapping the displayed items, you can specify the same settings as when using the screen explained
earlier.
Note
For details on the Display menu, see page iv.
4.2 Displaying Integrated Values (numeric display)
