4-8
IM WT5000-02EN

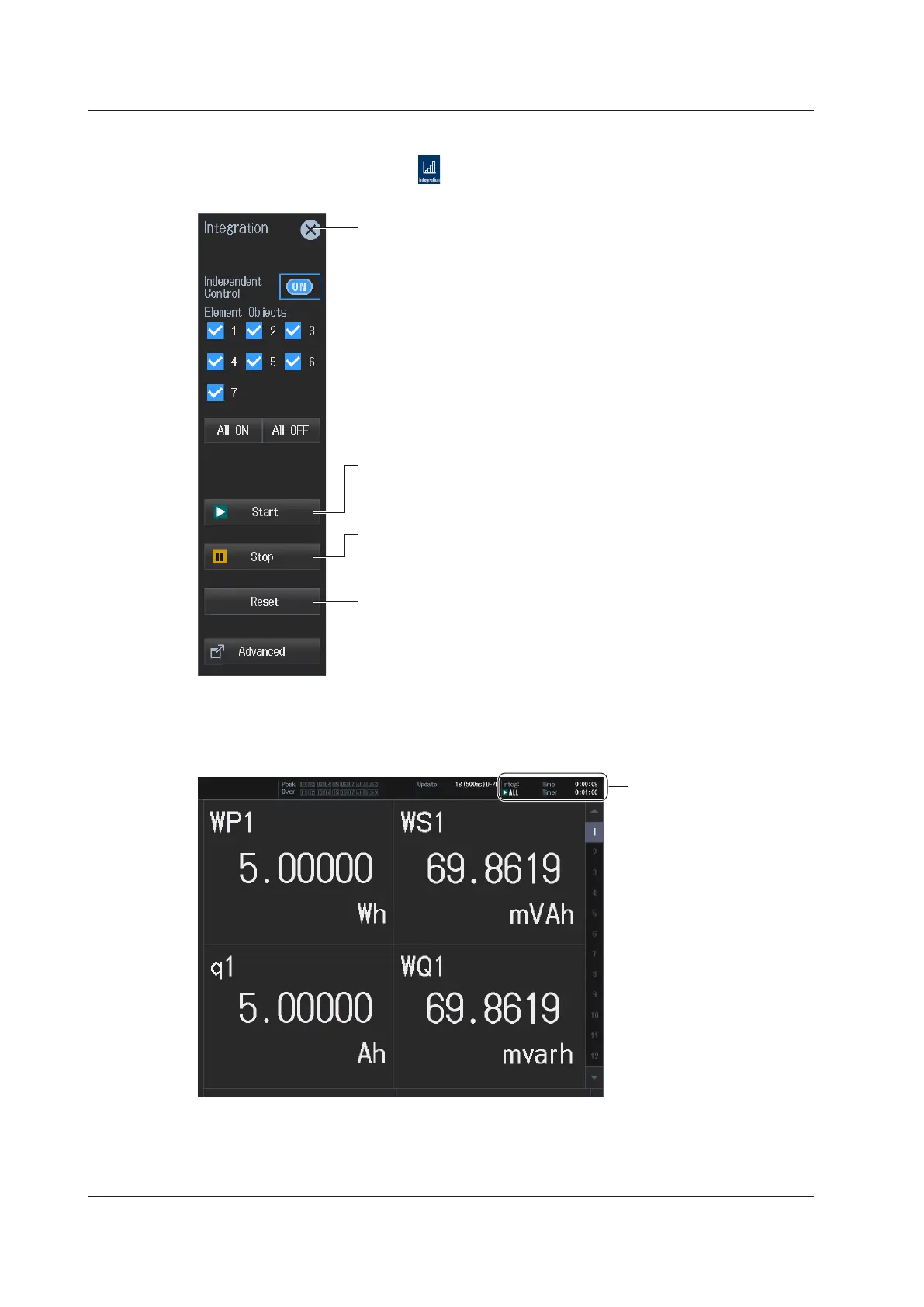

Starting, Stopping, and Resetting Integration (Start/Stop/Reset)
1.
Tap the Integration menu icon . An Integration menu appears in the sub menu area on the
right side of the screen.
Closes the menu
Starts integration.
Integration starts according to the specified integration conditions
(see section 4.1).
The START key in the INTEGRATION area turns on.
Stops integration.
Integration stops automatically according to the specified integration conditions.
The START key in the INTEGRATION area turns off, and the STOP key turns on.
Resets the integration time and integrated value.
All integration data is deleted, and the no-data display, “-------,” appears. The
STOP key in the INTEGRATION area turns off.
Integration Status Display
The integration status (running, paused, end), independent integration on/off state, integration time,
and so on are shown at the top of the screen.
Integration Information
4.2 Displaying Integrated Values (numeric display)
To Next Page
