9-4
IM WT5000-02EN

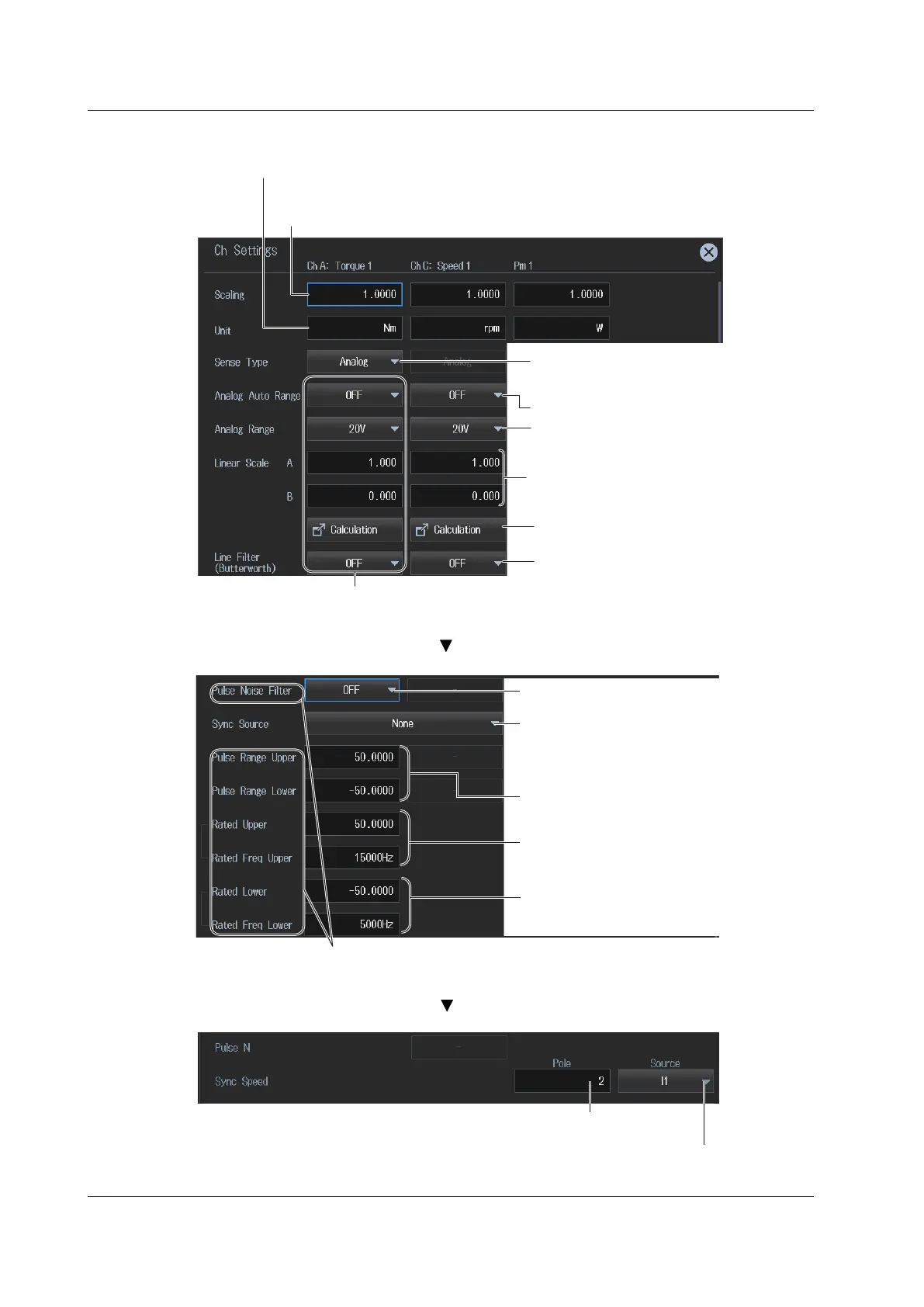

Single motor (revolution signal: analog) setup screen
Set the scaling factor (0.0001 to 99999.9999).
Set the scaling factor that is used to convert the signal from the revolution sensor or
torque meter to speed (rotating speed), torque, and Pm (motor output).
Set the unit (up to 8 characters).
Set the speed, torque, and Pm units.
Set the input signal type (Analog, Pulse).
Set the type of signal (Torque) applied from
the torque meter.
Turns auto range on and off
Set the fixed range (20V, 10V, 5V, 2V, 1V).
You can set the range, scale, filter, and the like of the torque signal when Sense Type is set to Analog.
Set the linear scale
(A: 1.000 m to 1.000 M; B: −1.000 M to 1.000M).
Set A (the slope) and B (the offset).
Computes A and B
Set the line filter.
(OFF, 1kHz, 500Hz, 100Hz)
Drag the screen to display the bottom area of the setup screen.
Set the pulse noise filter (OFF,
1MHz, 100kHz, 10kHz).
(Speed column)(Torque column) (Pm column)
Set the sync source (U1 to U7, I1 to I7, Ext
Clk, Z Phase1 (Ch D), Z Phase3 (Ch H),
None).
Set the upper and lower limits of the
torque or rotating speed.
Torque: –10000.0000 to 10000.0000 [N•m]
Set the upper limit of the torque signal.
Rated value : –10000.0000 to 10000.0000 [N•m]
Positive rated pulse frequency: 1 to 100000000 [Hz]
Set the lower limit of the torque signal.
Rated value : –10000.0000 to 10000.0000 [N•m]
Negative rated pulse frequency: 1 to 100000000 [Hz]
You can set these when SenseType is set to Pulse.
Drag the screen to display the bottom area of the setup screen.
(Speed column)(Torque column) (Pm column)
Set the number of motor poles that will be used to compute the synchronous
speed (1 to 99).
Set the voltage or current whose frequency will be measured to compute the synchronous
speed (U1 to U7, I1 to I7).
9.1 Configuring Motor Evaluation and Auxiliary Input Settings
